How does a weld neck flange differ in design and strength from a slip-on flange?
Design Characteristics

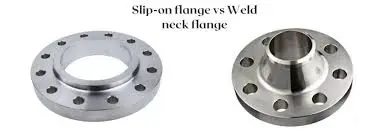

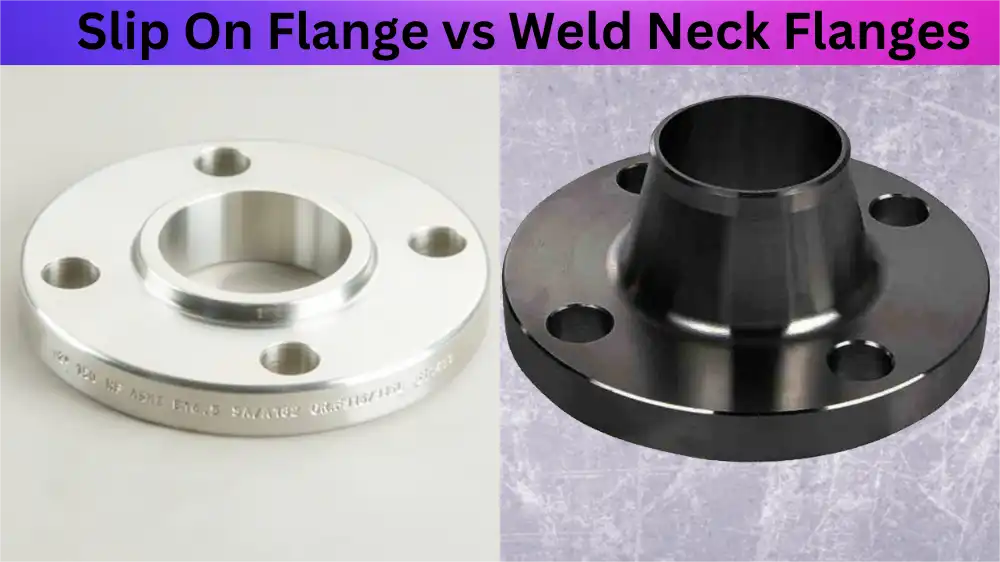

How they are made is the main difference between slip-on and weld neck flanges. Weld neck flanges have a long hub that gets narrower as it goes from the front of the flange to the pipe's end. This slow change makes it easier for stress to move from the joint to the pipe. This cuts down on the number of places where stress builds up. The hole in the linking pipe is the same size as the weld neck lip on the inside. This keeps the flow path smooth.
There is a hole in a slip-on ring that is a little bigger than the outside diameter of the pipe. The hub is shorter. They're made to fit over the pipe and are joined together on the inside and the outside. For this reason, they can fit more things, but the small step between the pipe hole and the flange hole can make the flow of fluid rough.
Strength and Durability
Neck flanges for welding are known to be very strong and last a long time. This is because the stress is spread out more evenly with a bent hub. This makes it less likely that the stuff will get worn out or break. Because of this, they work well in places where there is a lot of stress, heat, and pressure. Weld neck flanges are very good at resisting bending and shaking because they are built all at once.
Slip-on flanges are still strong, but they might not be as strong as welding neck flanges in harsh circumstances. Because they are soldered onto the pipe instead of being a part of it, the shorter hub and the fact that they are more likely to get stressed at the joint points make them less stable. Slip-on flanges, on the other hand, are strong and work well enough for many basic uses.
Pressure resistance, fatigue strength, and alignment differences
Pressure Resistance
When it comes to being able to handle high pressures, weld neck flanges are clearly better. Because the depth of the flange changes slowly from the flange to the pipe wall, it is easier to spread stress when there is a lot of it. There aren't many weak spots in this style, so the part where it meets the pipe is less likely to break.
Slip-on flanges can handle some pressure, but they might not be the best choice if the pressure is very high. When the joint and pipe meet, there is a lot of change happening quickly. This can create stress concentration zones. These zones could wear out or break after being under high pressure for a long time.
Fatigue Strength
Fatigue strength is very important in situations where there is repeated stress or a lot of changes in pressure. Weld neck flanges are great for this because they are built in, and stress is spread out evenly. The curved hub better absorbs and spreads cycle pressures, which lowers the chance of breakdowns due to fatigue over time.
Many times, slip-on flanges work well, but they might break down faster in rough or high-cycle environments. A lot of stress on the joint between the flange and pipe could make it weak over time. In rough places, the joint might not last as long and would need to be checked more often.
Alignment and Flow Characteristics
It is important to line up pipes properly so that they don't break and work well. These neck plates are better for getting things lined up because of how they are made. The long, curved hub gives better direction during installation, making it easier to line up correctly with the connected pipe and keep it that way. The smooth hole change also lowers noise and pressure drop, which helps the fluid move more efficiently.
Slip-on flanges give you more options for where to put them, but they can be harder to line up properly than welding neck flanges. There is a small space between the pipe and flange hole that can cause turbulence and may cause more wear over time, especially in situations where the flow is moving quickly. But slip-on flanges are still a popular and inexpensive choice for many standard uses where exact alignment and flow economy are not as important.
Cost and installation comparison between slip-on and welding neck flanges
Initial Cost Considerations
A lot of things affect how much slip-on neck flanges and welder neck flanges cost. Slip-on flanges are usually less expensive to buy at first. They cost less to make because they are simpler and need fewer supplies. This makes them a good choice for low-cost projects or uses with basic needs.
Of course, weld neck flanges cost more up front since they are made of more material and have a more difficult shape. The cost of making the curved hub goes up because it needs more accurate cutting and more material. But it's important to think about more than just the initial buy price when it comes to costs.
Installation Process and Labor Costs
Installing these two types of flanges is very different, which can affect work prices and project timelines. Most of the slip-on flanges are easier and faster to put on at the same time. They give the building process more freedom because they can be moved around after being put on over the end of the pipe. It can save money on work and get jobs done faster because it is so simple to install. This is especially true for big installations.
For neck plates, however, you need to be more careful with how you prepare and weld them. Most of the time, this job takes longer and needs more skilled workers because the bent hub has to be carefully linked up with the pipe and joined. The link will be better and more stable, and it may need less upkeep in the long run. It may cost more to do this.
Long-term Cost Efficiency
Slip-on flanges are cheaper in the short term than weld neck flanges, but you should think about how well they will work and how much maintenance they will need. Weld neck flanges cost more at first, but they often save you money in the long run when things are important or under a lot of stress. They can do the following because they are bigger and can spread stress better:
- fewer upkeep tasks and lower costs
- Less likely to leak and cause downtime
- Longer service life, especially in tough settings
- Better performance in situations where temperature and pressure change
Slip-on flanges are cheaper at first, but they might need to be checked more often and changed sooner if things go wrong. Welding neck flanges, on the other hand, can be a good way to save money and get good performance in normal, low-stress systems.
Application-Specific Considerations
Slip-on or welding neck flanges are most of the time best based on the needs of the work. Many times, the extra cost of weld neck flanges is worth it because they work better and are more effective in systems that are under a lot of pressure, are very hot, or are safety-critical. Welding neck flanges are used in a lot of important places in the oil and gas, chemical processing, and power generation industries.
If money is tight, it might be better to use slip-on flanges instead of nuts. They are mostly used in places with low temperature and pressure, like water treatment plants, HVAC systems, and lines in the general industry.
Conclusion
You should pick either weld neck or slip-on flanges based on your application needs, your budget, and how well you want the product to work in the long term. For less demanding uses, slip-on flanges are cheaper and easier to put on. Weld neck flanges, on the other hand, are stronger, better at matching, and better at fighting pressure.
Neck plates that are welded are often the best choice when safety, steadiness, and long-term performance are the most important things. This is very true in places where the warmth or pressure is high. They are great for systems that can't fail because they are built to last and distribute stress better.
Yet, slip-on flanges are still a good choice that is widely used in many normal situations because they are affordable and work well enough. They work best for jobs with limited funds or where simplicity is important during installation.
How do I pick the right thing? Learn the rules, what you need for the project, and your long-term goals. Once the lines are in place, you should think about the good and bad points of each type of hinge. This will help you keep everyone safe and save money.
You can get help from HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. to pick the best part for your needs. Pipe fittings and flanges of all shapes and sizes are made by us to meet the needs of many companies. Our engineers are trained to help you pick the right type of flange for your job, taking cost, speed, and safety into account.
FAQ
1. Can weld neck flanges be used in all piping applications?
You might need to join neck flanges sometimes, like when there is a lot of pressure and heat, but they might not always be worth the money. Slip-on or other types of flanges may work better when the pressure is low or the fitting is only going to last a short time.
2. Are slip-on flanges less safe than weld neck flanges?
Slip-on flanges are not less safe by nature as long as they are used in the way that was intended. In a lot of common situations, they work just fine. On the other hand, weld neck flanges often provide an extra safety cushion since they are stronger and better spread stress in tough situations or for important systems.
3. How do I decide between weld neck and slip-on flanges for my project?
When making your choice, you should think about a lot of things, such as the budget you have, the safety standards, the working pressure and temperature, the cycle loads, and how easy it is to set up. When things are important or stressful, weld neck flanges are often the best choice. Slip-on flanges might be less expensive if you only use them for normal jobs and settings. It can help you make the best choice for your needs to talk to an expert about flanges.
