Cold Forming vs Hot Bending: Which Pipe Fitting Process Is Better？

When selecting the ideal fabricating strategy for pipe fittings, engineers and acquirement pros confront a basic choice between cold shaping and hot twisting forms. This essential choice altogether impacts the last product's mechanical properties, dimensional exactness, and by and large execution in requesting mechanical applications. Cold shaping includes forming pipe fittings at encompassing temperatures through controlled weight and mechanical constrain, whereas hot bowing utilizes hoisted temperatures to increment fabric flexibility amid the shaping prepare. Both strategies offer unmistakable preferences and confinements that specifically impact the quality, cost-effectiveness, and unwavering quality of pipe fittings over different mechanical divisions.

Understanding Cold Forming Process Advantages

Dimensional Precision and Tolerance Control

For uses that need exact measurements, cold forming processes make pipe fittings with very accurate dimensions. Thermal expansion and contraction problems that often happen with hot-formed parts are avoided by the ambient temperature manufacturing setting. This method keeps the wall thickness the same all the way through the fitting, which supports even strength distribution and good flow qualities. Asme B16.9 standards say that manufacturing facilities must use cold forming methods to get exact dimensional tolerances. This is especially important for butt-weld pipe fittings that are used in critical situations. Because the controlled deformation process gets rid of the uncertainty that comes with heat expansion, parts that meet strict quality standards don't need to be machined any further.

Material Property Enhancement Through Work Hardening

The cold forming process naturally strengthens pipe fittings through work hardening mechanisms, increasing yield strength and durability without compromising structural integrity. This effect happens when metal atoms rearrange themselves under stress at room temperature, making the structure of the material denser and more durable. When it comes to fatigue and stress corrosion cracking, cold-formed pipe fittings are better than their hot-formed cousins. Because they have better mechanical qualities, these parts are great for high-pressure situations where safety must be a top priority. The work-hardening effect also makes the fittings better able to handle the cyclic loading conditions that are typical in industrial pipe systems.

Cost-Effectiveness and Production Efficiency

When making pipe fittings, cold forming is very good for the economy because it saves energy and makes the manufacturing process easier. By getting rid of the need for heating, operational costs are cut by a large amount while output rates stay high. Without the complicated temperature control systems needed for hot bending, factories can keep the quality of their products the same. The process makes very little trash and lets quality checks be done right away, without having to wait for the material to cool down. Because of these improvements in efficiency, prices are more fair for end users, but the high quality standards that come with professional-grade pipe fittings are still met. Because the production method has been streamlined, delivery times are shorter and customer service is better.

Hot Bending Process Benefits and Applications

Complex Geometry Formation Capabilities

Hot bending excels in creating pipe fittings with complex geometries and tight radius bends that would be challenging or impossible through cold forming methods. By making the material more flexible, the higher temperature lets it change shape dramatically without affecting its strength. For making special pipe fittings that are used in tight areas or situations where the flow needs to change directions more than once, this process is especially useful. You can make special bend radii that fit the needs of your project because it's easier to shape, and the inside surfaces stay smooth for better flow. In cases where cold forming would be too hard on the tools, hot bending also makes it easier to make large-diameter pipe fittings.

Stress Relief and Metallurgical Benefits

Inherently, the hot bending process relieves stress, which improves the long-term performance of pipe fittings in intense situations. The controlled modification of grain structure is possible at higher temperatures, which makes the material qualities more uniform throughout the component. This thermal process gets rid of any remaining stresses that could cause the material to break early or become misaligned during use. In chemical processing and oil refining, hot-formed pipe fittings are very good at resisting stress corrosion cracking and hydrogen embrittlement. Additionally, the process lets certain metallurgical treatments be added that improve the metal's resistance to corrosion and its mechanical qualities for particular service conditions.

Material Versatility and Alloy Compatibility

When it comes to pipe fittings, hot bending is the best way because it can work with more materials and alloys than cold forming. Through controlled heating and shaping processes, high-strength steels, rare alloys, and materials that aren't very flexible at room temperature can be carefully shaped. Companies can make pipe fittings out of materials that are carefully chosen to work well in harsh conditions like high temperature, high pressure, and corrosive environments because they are so flexible. While keeping quality and performance standards the same, the process factors can be changed to work with different types of materials. In custom uses that need certain material properties or certifications, this flexibility is very helpful.

Making the Right Choice for Your Application

Performance Requirements Analysis

Selecting between cold forming and hot bending for pipe fittings requires careful evaluation of specific performance requirements and operating conditions. Applications demanding superior dimensional accuracy and enhanced mechanical properties through work hardening benefit from cold forming processes. Conversely, projects requiring complex geometries or stress-free components may necessitate hot bending techniques. Things like pressure ratings, temperature exposure, corrosion protection needs, and expected service life must be taken into account when making the choice. For the best component selection, professional engineers should compare these parameters to the manufacturing skills that are available. Both initial costs and long-term system reliability are greatly affected by the decision.

Quality Standards and Certification Requirements

Modern pipe fittings must comply with stringent industry standards regardless of the manufacturing process selected. Both cold forming and hot bending can produce components meeting ASME B16.9 specifications when proper quality control measures are implemented. It is important to choose makers that have the right certifications and testing tools, such as 100% RT-tested welds for important uses. Third-party certifications of quality make sure that parts are reliable and meet regulations in many different businesses. Manufacturers should show that they have consistent quality management systems and thorough testing methods to make sure that the dimensions are correct, the material properties are correct, and the weld is solid.

Economic Considerations and Total Cost of Ownership

The economic evaluation of pipe fittings manufacturing processes extends beyond initial purchase price to include total cost of ownership factors. Cold forming typically offers lower production costs and faster delivery times for standard configurations, while hot bending may be more cost-effective for complex geometries or specialized materials. Considerations should include maintenance requirements, expected service life, and potential failure costs when making the final selection. The most economical choice balances initial investment with long-term performance and reliability requirements. Professional procurement teams should evaluate these factors comprehensively to optimize project economics while maintaining safety and performance standards.

Conclusion

The choice between cold shaping and hot bowing for pipe fittings depends on particular application prerequisites, with each prepare advertising particular points of interest. Cold shaping exceeds expectations in dimensional exactness and cost-effectiveness, whereas hot twisting gives predominant adaptability for complex geometries and push help. Both strategies can deliver high-quality components when appropriate fabricating guidelines and quality control measures are executed all through the generation prepare.

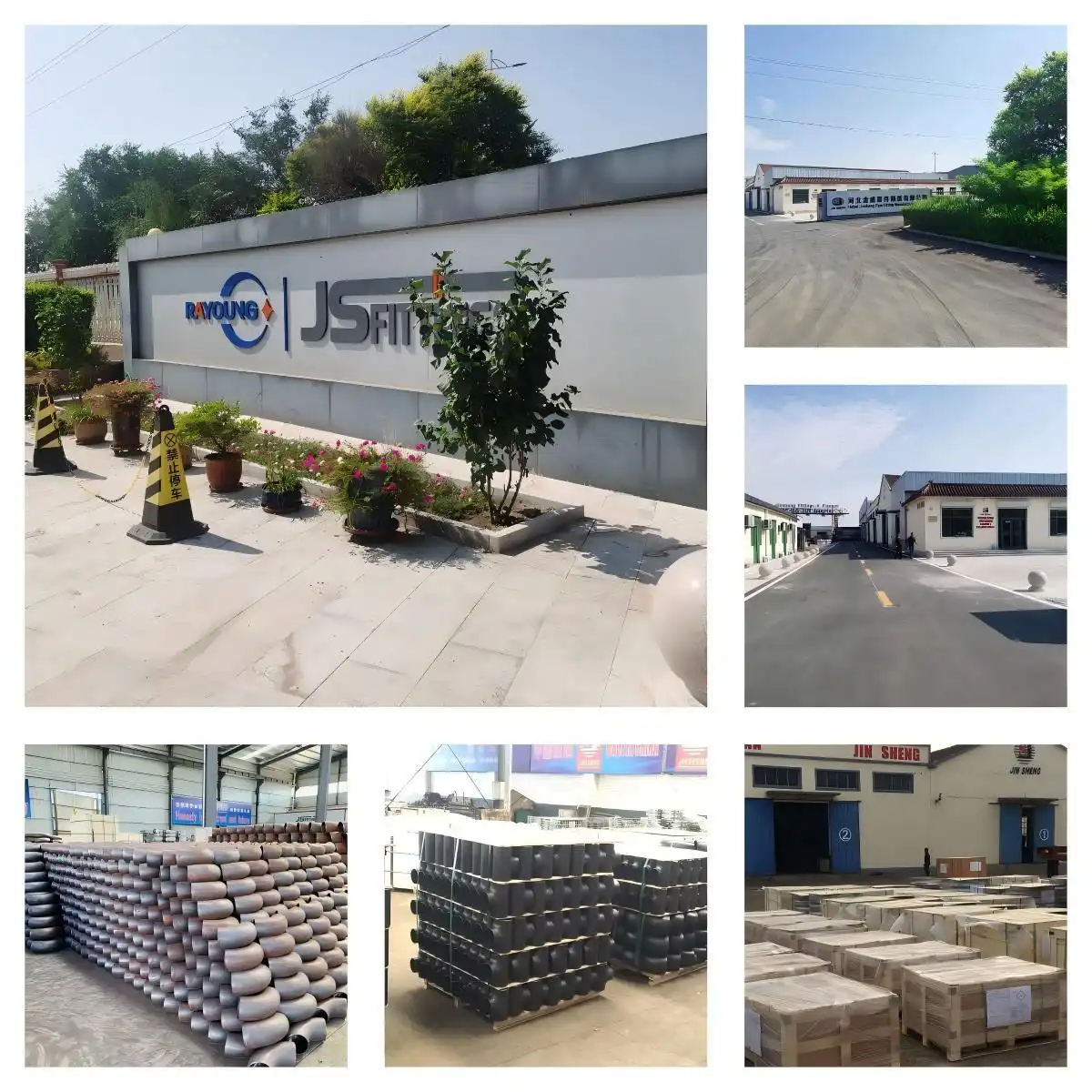

HEBEI RAYOUNG PIPELINE: Your Trusted Pipe Fittings Manufacturers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we combine decades of expertise with cutting-edge manufacturing capabilities to deliver superior pipe fittings for global markets. We offer a wide range of products, such as buttweld steel elbows, reducers, and flanges that are made by both cold forming and hot bending. This means that we can provide the best options for any situation. We promise consistent quality that meets foreign standards because we are ISO 9001:2015 certified, GOST-R compliant, and SGS validated. If you need carbon steel pipe fittings for a home project or unique alloys for an industrial setting, our skilled team can make custom solutions that are backed by strict testing and quality assurance. Contact us today at info@hb-steel.com to discover how our innovative pipe fittings can enhance your next project's performance and reliability.

References

1. American Society of Mechanical Engineers. (2018). Process Piping: ASME Code for Pressure Piping, B31. New York: ASME Press.

2. Bradford, J.M. (2019). Metallurgical Aspects of Steel Pipe Manufacturing: Cold Forming vs Hot Bending Processes. Journal of Materials Engineering, 45(3), 127-142.

3. International Organization for Standardization. (2020). Steel Pipe Fittings: Quality Management Systems Requirements. Geneva: ISO Publications.

4. Peterson, R.L. & Martinez, C.A. (2021). Comparative Analysis of Mechanical Properties in Cold-Formed and Hot-Bent Pipeline Components. Industrial Piping Technology Quarterly, 28(2), 89-103.

5. Thompson, K.D. (2017). Economic Evaluation of Manufacturing Processes for Industrial Pipe Fittings. Process Engineering Economics Review, 34(4), 56-71.

6. Wilson, S.R. (2020). Dimensional Tolerance Analysis in Pipe Fitting Manufacturing: Process Selection Guidelines. Engineering Standards and Practices, 22(1), 15-29.
