6 Common Types of Flanges Used in the Oil and Gas Industry

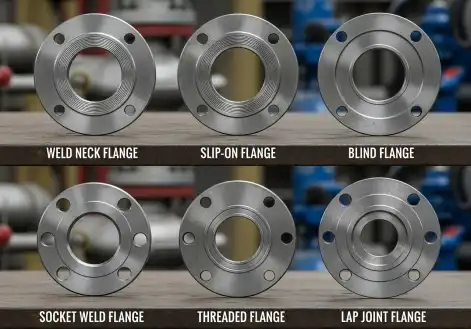

Specialized industrial flanges are very important to the oil and gas industry because they make joints safe and leak-proof in harsh working conditions with high pressures, corrosive fluids, and changing temperatures. These important parts are what hold pipeline systems, processing plants, and factories together, making sure that safety and dependability are never compromised. The six most commonly utilized flange types in oil and gas applications include weld neck, slip-on, blind, socket weld, threaded, and lap joint flanges, each designed to address specific operational requirements and installation conditions. Industrial flanges in this sector must comply with stringent API, ASME, and ANSI standards while demonstrating exceptional resistance to hydrogen sulfide corrosion, thermal cycling, and mechanical stress that characterizes petroleum production and processing operations throughout global energy infrastructure systems.

Primary Flange Categories for High-Pressure Oil and Gas Applications

Weld Neck Flanges for Critical Pipeline Connections

Weld neck flanges represent the gold standard among industrial flanges used in high-pressure oil and gas applications due to their superior structural integrity and stress distribution characteristics. The long, tapered hub on these flanges makes the transition from the pipe wall to the flange face smooth. This gets rid of stress concentration spots that could cause fatigue failures when the flanges are loaded and unloaded over and over again. The butt weld connection between the pipe and flange makes a smooth joint that keeps the full thickness of the pipe wall throughout the connection zone. This makes sure that the maximum pressure rating is met, which is important for upstream production facilities and high-pressure transport pipelines. For these industrial flanges to be made, precise forging operations are used to line up the grain structure along stress flow lines. This is followed by a series of thorough heat treatment procedures that improve the mechanical properties so they can withstand tough working conditions. Ultrasonic testing of the weld area, checking the dimensions with coordinate measuring machines, and hydrostatic testing at pressures higher than what the design calls for are all part of quality control processes.

Slip-On Flanges for Moderate Pressure Service

Slip-on flanges provide cost-effective solutions for moderate pressure applications in oil and gas facilities where installation simplicity and material economy take precedence over maximum pressure capability. These industrial flanges feature a bore diameter slightly larger than the pipe outside diameter, allowing the pipe to slip into the flange hub before welding operations commence. The welding process involves both inside and outside fillet welds that secure the pipe to the flange while providing adequate strength for pressures typically encountered in gathering systems, distribution networks, and auxiliary equipment connections. Design advantages include reduced material costs compared to weld neck alternatives, simplified machining requirements that lower manufacturing expenses, and installation flexibility that accommodates field alignment adjustments during construction phases. Quality assurance procedures for slip-on industrial flanges emphasize weld quality verification through visual inspection, penetrant testing, and radiographic examination to ensure consistent joint integrity throughout service life.

Blind Flanges for System Isolation and Maintenance Access

Blind flanges serve essential functions in oil and gas systems by providing permanent or temporary closure capabilities for pipeline ends, vessel nozzles, and equipment connections that require periodic maintenance access or system isolation during operational phases. These solid disk industrial flanges incorporate the same bolt pattern and pressure rating as their mating components while eliminating the central bore that characterizes flow-through flange designs. Applications include pipeline pig launchers and receivers, pressure vessel manholes, instrument connections, and emergency isolation points where rapid system shutdown capabilities are required. Manufacturing considerations include material selection that matches the corrosion resistance and mechanical properties of associated piping systems, surface finish requirements that ensure proper gasket sealing, and dimensional accuracy that maintains interchangeability with standard flange components. Testing procedures for blind industrial flanges include hydrostatic pressure verification, dimensional inspection protocols, and material certification that validates chemical composition and mechanical properties essential for safe operation in hydrocarbon service environments.

Specialized Connection Types for Unique Installation Requirements

Socket Weld Flanges for Small Bore Piping Systems

Socket weld flanges provide reliable connections for small diameter piping systems commonly found in instrumentation lines, chemical injection systems, and auxiliary equipment connections throughout oil and gas facilities. These industrial flanges feature a recessed socket that accommodates the pipe end with a small gap maintained between the pipe end and socket bottom to prevent crevice corrosion and allow for thermal expansion during service. The single fillet weld around the pipe exterior provides adequate strength for typical small bore applications while simplifying welding procedures and reducing heat input requirements that could affect material properties in thin-wall tubing. Design advantages include elimination of backing rings or consumable inserts required for butt weld connections, reduced welding time and associated labor costs, and improved weld quality consistency achievable with single-pass welding techniques. Quality control procedures for socket weld industrial flanges emphasize proper gap dimension verification, weld penetration examination, and leak testing protocols that ensure long-term service reliability in critical instrumentation and control systems.

Threaded Flanges for Removable Connection Applications

Threaded flanges offer unique advantages in applications requiring frequent disassembly for maintenance operations or temporary connections during construction and commissioning phases of oil and gas projects. These industrial flanges incorporate NPT or API threads that provide mechanical connection without welding requirements, enabling installation in locations where hot work restrictions prohibit welding operations or where connection removal is anticipated during normal operations. Thread engagement requirements typically specify minimum thread contact to ensure adequate mechanical strength, while thread compound application provides additional sealing capability and corrosion protection for the threaded interface. Applications include pressure gauge connections, safety valve installations, temporary bypass lines, and equipment connections where future modifications are anticipated. Manufacturing quality control for threaded industrial flanges includes thread form verification using specialized gauges, surface finish measurement to ensure proper sealing characteristics, and material hardness testing that validates heat treatment effectiveness for enhanced thread durability.

Lap Joint Flanges for Dissimilar Material Applications

Lap joint flanges, combined with stub end fittings, provide versatile connection solutions for applications involving dissimilar materials, frequent alignment adjustments, or systems requiring regular inspection access in oil and gas facilities. This two-piece industrial flanges system allows the stub end to be fabricated from materials matching the piping system while the backing flange utilizes standard carbon steel construction, resulting in significant material cost savings for exotic alloy applications. The loose flange design permits rotation during installation to align bolt holes without affecting the welded stub end connection, simplifying field assembly procedures and reducing installation time requirements. Design benefits include improved gasket access for maintenance operations, reduced material costs for corrosion-resistant alloy systems, and enhanced flexibility for pipeline alignment corrections during construction phases. Quality assurance procedures for lap joint industrial flanges emphasize proper stub end welding techniques, flange face alignment verification, and gasket seating surface inspection to ensure optimal sealing performance throughout the service life of these specialized connection systems.

Material Selection and Performance Considerations for Harsh Environments

Carbon Steel Specifications for Standard Service Conditions

Carbon steel materials represent the most widely specified option for industrial flanges serving standard oil and gas applications where operating conditions fall within moderate temperature and pressure ranges without exposure to severe corrosive environments. ASTM A105 forged carbon steel provides excellent mechanical properties, weldability characteristics, and cost effectiveness that make it the preferred choice for upstream production facilities, gathering systems, and transmission pipeline applications. Material properties include minimum yield strength of 36,000 psi, ultimate tensile strength exceeding 70,000 psi, and impact toughness values that ensure reliable performance at temperatures down to -20°F without brittle failure concerns. Heat treatment procedures for carbon steel industrial flanges involve normalization or stress relief operations that optimize grain structure and remove residual stresses from forging operations, followed by comprehensive testing protocols that verify mechanical properties, chemical composition, and dimensional accuracy. Quality control procedures include spectroscopic analysis for chemistry verification, tensile testing for strength confirmation, and Charpy impact testing for toughness validation at specified service temperatures.

Stainless Steel Alloys for Corrosive Service Applications

Stainless steel industrial flanges provide superior corrosion resistance for oil and gas applications involving sour service conditions, seawater exposure, or chemical processing environments where carbon steel materials would experience premature failure due to corrosive attack. Common specifications include 316/316L austenitic stainless steel for general corrosive service, duplex grades like 2205 for enhanced strength and chloride resistance, and super duplex alloys for the most demanding offshore and subsea applications. These materials demonstrate excellent resistance to hydrogen sulfide cracking, chloride-induced stress corrosion, and pitting corrosion that commonly affect carbon steel components in harsh production environments. Manufacturing processes for stainless steel industrial flanges require specialized heat treatment procedures to optimize corrosion resistance and mechanical properties, including solution annealing operations that dissolve carbides and prevent sensitization that could compromise corrosion performance. Testing protocols include intergranular corrosion testing per ASTM A262, ferrite content measurement for duplex grades, and comprehensive chemical analysis to ensure compliance with stringent composition requirements for critical service applications.

Alloy Steel Grades for High-Temperature and High-Pressure Service

Alloy steel industrial flanges serve critical applications in oil and gas systems operating under extreme temperature and pressure conditions that exceed the capability of standard carbon steel materials. Common specifications include ASTM A182 grades F11, F22, and F91 that incorporate chromium and molybdenum additions for enhanced creep strength, temperature resistance, and hydrogen attack resistance essential for refinery and petrochemical applications. These materials maintain mechanical properties at elevated temperatures where carbon steel components would experience significant strength degradation, making them essential for applications such as catalytic cracking units, hydroprocessing systems, and high-pressure steam generation equipment. Heat treatment requirements for alloy steel industrial flanges involve precise temperature control during quenching and tempering operations to achieve optimal microstructure and mechanical properties, followed by comprehensive testing that verifies hardness, impact toughness, and tensile properties at both room temperature and elevated service conditions. Some quality control steps are creep rupture testing to make sure the strength will last, hydrogen probe testing to see how easily the material can be damaged by hydrogen, and microstructural examination to make sure the heat treatment worked right and there were no harmful phases that could affect the service performance.

Conclusion

Every one of the six main types of flanges used in oil and gas uses has its own set of operational requirements. The right type to use depends on the pressure ratings, installation methods, ease of maintenance access, and environmental conditions. These industrial flanges are the building blocks of safe, reliable pipeline systems that deliver and produce energy around the world while meeting strict safety and environmental standards necessary for long-term operations.
