What are the best sealing materials for chemical process pipelines？

The right materials need to be used to cover chemical process pipelines so they are safe, work well, and last a long time. Covers for chemical process pipelines need to be strong and last a long time in harsh chemical environments with high pressures and temperatures. This kind of hole should be filled with polytetrafluoroethylene (PTFE), graphite, or high-performance elastomers most of the time. These things are easy to mix with chemicals, but they don't melt at high temperatures and last a long time. This makes them great for blocking off important links in chemical processing plants. A lot of things, such as the chemicals being used, the working conditions, and the laws and rules that are in place, can change how you choose the best covering material. By picking the right sealing materials, engineers and plant workers can make sure that chemical process pipelines work safely and efficiently, with a lot less chance of leaks.

Which sealing materials ensure leak-free operation in chemical process pipelines?

For safety and efficiency's sake, it is very important that chemical process pipes don't leak. In this tough setting, a number of high-performance sealing materials have been shown to be very useful:

Polytetrafluoroethylene (PTFE)

Because it is flexible, it is often used to seal pipes in chemical plants. PTFE is also known as Teflon. Some of the best things about it are

Stands up well to most acids, bases, and solvents.
Low rubbing rate, which means less damage.
The temperature range is very large, from -268°C to 260°C.
non-stick qualities that keep chemicals from building up

PTFE gaskets and seals work great in places where chemicals that break down things need to be kept clean.

Graphite

Another famous material for closing chemical process pipes is flexible graphite, which:

Resistance to high temperatures (up to 450°C in settings that oxidize and higher in settings that don't)
Excellent chemical compatibility with most media
Good thermal conductivity
Ability to conform to irregular surfaces

As a fire safety measure, graphite covers are very helpful in places where there is heat.

High-Performance Elastomers

Some elastomers, like fluoroelastomers (FKM) and perfluoroelastomers (FFKM), are very good at sealing:

Excellent defense against chemicals
Good strength to compression set
Flexibility that stays the same across a wide temperature range
Excellent ability to seal in changing situations

They can be used in places where you need to be flexible and protect against chemicals.

A lot of safety and dependability can be added to a chemical process pipeline chain if engineers carefully choose the right covering material.

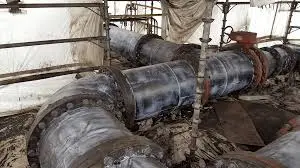

process pipelines

PTFE, graphite, and elastomer seals for aggressive chemical media

With strong chemicals in process lines, it is even more important to pick the right covering material. More on how PTFE, graphite, and rubber seals work in these tough situations:

PTFE Seals in Aggressive Chemical Media

Because PTFE is so chemically neutral, it is a great material for closing against harsh chemicals:

Not easily broken down by chemicals, even strong acids and bases
Keeps its qualities even in places that are very corrosive
Low penetration, which stops chemicals from getting in
Comes in different types, such as filled PTFE for better mechanical qualities

But PTFE has some problems, like the fact that it doesn't work well with heavy loads and might break down when it comes in contact with some fluorine chemicals.

Graphite Seals for Harsh Chemical Applications

Graphite has special benefits in harsh chemical environments:

Most chemicals don't react with it, but strong oxidation agents do.
Excellent success in situations with high pressure and temperature
self-lubricating features that cut down on wear and friction
Can be filled with PTFE or resins to make it more resistant to chemicals

Graphite seals work especially well when steam, fuels, and many toxic chemicals are present.

Elastomer Seals in Aggressive Chemical Service

It is especially helpful for high-performance elastomers to protect against strong chemicals:

Oils, fuels, and many chemicals don't hurt fluoroelastomer (FKM) at all.
Perfluoroelastomer (FFKM) is the rubber that can handle acids the best.
Being able to keep the binding force even when temperatures change
For long-lasting closing ability, it has good healing qualities.

Picking the right rubber relies on the chemical interaction needs and the way the product will be used.

When you choose binding materials for tough chemical media, you should think about more than just chemical safety. You should also think about how your muscles feel when they are strained, hot, and stressed in process pipelines. You can try it out and talk to people who know a lot about sealing to make sure you pick the best one.

How temperature and pH affect gasket selection in process pipeline systems？

Temperature and pH are two important factors that have a big effect on the choice of seal in process flow systems. To choose the right closing option, you need to know how they affect things:

Temperature Effects on Gasket Performance

Extreme temperatures can have a big effect on sealing materials:

Material can break down, soften, or melt at high temperatures.
Bad closing qualities can be lost when temperatures are low.
Thermal riding can cause wear and failure before its time.

Different materials have varying temperature ranges:

From -268°C to 260°C, PTFE is good.
Graphite works up to 450°C in oxidizing conditions and higher temperatures when conditions are not oxidizing.
The FKM elastomers: Effective from -20°C to 200°C most of the time
FFKM elastomers: Can handle temps as high as 320°C

pH Influence on Gasket Selection

It is very important to think about the pH of the process media:

Some materials can eat away and erode when the pH level is low.
That's because seals can get damaged or swell up when the pH is too high.
Materials still need to be carefully chosen, even though normal pH levels aren't usually as harsh.

Material suitability across pH ranges:

PTFE has great resistance across the whole pH range (0–14).
Graphite is resistant to most pH levels, but not when conditions are very acidic.
Elastomers: There are a lot of different kinds, but FFKM has the best pH tolerance.

Combining Temperature and pH Considerations

When warmth and pH are looked at together:

Chemical processes can happen faster at high temperatures, which makes pH impacts stronger.
Some things might work well at room temperature but not when they are very hot or when the pH level is very low.
Materials that aren't made to last long can quickly break down when they are heated and then cooled in acidic media.

To ensure optimal gasket selection:

Clearly state the working settings, such as the temperature range and pH levels.
Think about the worst-case scenarios and possible upset situations.
Check out charts that show how different materials work together and what experts say.
When working with unusual or extreme situations, test or run flying trials.

Techs can choose seal materials that will work well and last a long time in even the roughest process pipeline flow conditions if they pay close attention to both temperature and pH. Not only does this method keep things safer, it also makes them work better and fixes them for less money.

process pipelines

Conclusion

The materials used to protect chemical process lines have an impact on safety, cost, and the long-term cost of running the business. Graphite, PTFE, and high-performance elastomers are all good to use right now. Each one is useful in its own way. To figure out the best way to close, pay close attention to the chemicals used, the temperature ranges, and the pH levels.

PTFE can be used as long as the temperature is below or above a certain amount. This makes it great for many tough chemical situations. Graphite is simple to make and works well at high temperatures, so it can be used in steam and oil. It is best to use high-performance elastomers like FKM and FFKM to cover something that moves. This is because they are strong and bendable. They also keep poisons out in different ways.

Don't forget that no work is ever perfect. The best material for your chemical process chain will depend on what it's going to be used for, how safe it needs to be, and how long it needs to last. You should clean and check the parts that close off your pipe systems often to keep them safe and running well.

People who are in charge of chemical process pipes need to know about the newest developments in closing technology and work closely with reputable suppliers. You can make your chemical handling processes much more reliable, safe, and efficient by choosing closing materials that you know a lot about.

Are you looking for safe, high-quality ways to seal your chemical process pipelines? HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. is the only company you need to see. As one of the biggest companies that makes pipes and fittings, we know how important it is to choose the right materials for your needs. Our wide selection of industrial pipe fittings, such as butt-weld steel elbows, steel reducers, and flanges, are made to make sure that connections are safe in even the harshest chemical handling settings.

Our GOST-R and SGS approvals mean that you can be sure that our goods are of high quality and meet all the rules for both local and foreign markets. Our dedication to ISO 9001:2015 standards makes sure that you always get high-quality goods that meet or go beyond what the industry expects.

We have the knowledge and goods to meet your needs whether you're an EPC provider trying to lower project risk, a dealer looking for dependable sources, or an industry end-user trying to cut down on downtime and maintenance costs. There are pros on our team who are ready to help you choose the best closing options for your chemical process pipeline needs.

FAQ

1. How often should sealing materials in chemical process pipelines be replaced?

How often covering materials in chemical process pipes need to be replaced varies on a number of things, such as the type of material used, the working conditions, and how strong the chemicals are. To keep things in good shape, seals should be checked often, at least once a year, and changed when they show signs of wear or loss of effectiveness, or just because. There are high-performance materials that may last for years, like PTFE or some elastomers, and materials that may need to be changed more often. For the job, you should always follow the maker's directions and the best ways to do things in your field.

2. Can I use the same sealing material for all parts of my chemical process pipeline?

Using the same covering material through a chemical process might be easy, but it's not always the best idea. Things might be different in some parts of the tube. For example, you might be close to different poisons or feel very hot. Before choosing the best material to cover a room, you should carefully think about what it needs. All of the pipes work well, are safe, and last a long time thanks to this one-of-a-kind method.

3. How do I know if my current sealing materials are compatible with a new chemical process?

Follow these steps to find out if the glues you already have will work with the new method:

Look at the chemistry match sheets that people who make seals give you.
You should check the Safety Data Sheets (SDS) for the new items to see what you can use them with.
If you can, try them on in a small size to see if they fit.
Someone who knows a lot about sealing materials or the company that makes them can give you specific help.
Think about the new chemicals' amount, temperature, and pressure, among other things. If you're not sure what to do, it's safer to buy new coverings that will fit over what you already have than to risk something failing or leaking.
