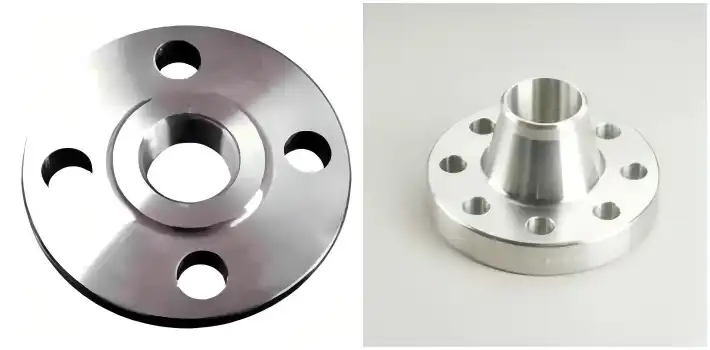

Welding Neck Flange vs Threaded Flange: What’s the Difference

Selecting the fitting rib sort is basic for guaranteeing pipeline integrity, operational security, and long-term framework execution over mechanical applications. Welding neck flanges and strung ribs speak to two on, very basic level diverse association strategies, each advertising unmistakable focal points based on weight necessities, establishment imperatives, and upkeep considerations. Welding neck spines include a decreased center that continuously moves to the pipe divider, giving predominant quality for high-pressure and high-temperature applications through full-penetration butt welds. Strung ribs utilize inner strings that screw onto remotely strung channels, disposing of welding necessities and promoting speedy establishment for shorter distances across, lower-pressure applications. Understanding the auxiliary contrasts, execution characteristics, and common sense impediments of these ribs empowers engineers to make educated choices that balance starting costs against operational unwavering quality all through the system's lifecycle.

Structural Design and Connection Methodology Differences

Welding Neck Flange Construction Features

Welding neck spines speak to the premium category of ribs outlined for requesting mechanical applications where auxiliary astuteness and spill anticipation are foremost. The characteristic includes a long decreased center that amplifies from the rib ring to the pipe association point, making a slow move that disperses push consistently over the joint. This decreased plan altogether diminishes stress concentrations that regularly happen at sudden geometry changes, making welding neck spines perfect for high-pressure frameworks, extraordinary temperature situations, and cyclic loading conditions where fatigue resistance is essential. The association strategy requires a single full-penetration butt weld between the rib center and pipe conclusion, making a homogeneous joint that approaches the quality of the base pipe fabric itself. Fabricating guidelines, as indicated by ASME B16.5, indicate exact center measurements and confronting points of interest that guarantee steady quality. Fabric choices include carbon steel, stainless steel, combination steel, and extraordinary materials chosen based on chemical compatibility, temperature range, and mechanical property necessities of the aiming service.

Threaded Flange Design Characteristics

Threaded flanges offer an alternative connection method that eliminates welding equipment and specialized labor requirements through mechanical thread engagement. These flanges feature female threads machined into the flange bore according to standard thread specifications such as NPT or BSPT, depending on regional preferences. The pipe must have matching male threads to enable the threaded connection, with proper engagement typically requiring a minimum of five complete threads to develop adequate joint strength. Unlike welding neck flanges that create permanent connections, threaded flanges allow disassembly and reassembly without cutting operations, making them advantageous for systems requiring frequent maintenance. However, the mechanical thread connection inherently creates stress concentration points at thread roots where fatigue cracks can initiate under cyclic pressure or temperature variations. Thread sealants or PTFE tape must be applied during assembly to prevent leakage through the spiral leak path created by the thread form.

Pressure and Temperature Rating Comparisons

The crucial plan contrasts between welding neck and strung ribs specifically interpret into essentially distinctive weight and temperature rating capabilities. Welding neck ribs accomplish the most noteworthy weight appraisals accessible in standard rib arrangements, with plans evaluated from Course 150 through Course 2500 and past. The full-penetration butt weld and decreased center development empower these ribs to handle extraordinary weights surpassing 5000 psi while keeping up auxiliary judgment and fixing viability all through warm cycles extending from cryogenic temperatures underneath -200°F to raised temperatures over 1000°F. Strung ribs are restricted to lower weight applications ordinarily not surpassing Course 300 evaluations, with most producers prescribing their utilize as it were in Lesson 150 applications for smaller channel widths underneath 4 inches. The string engagement gives satisfactory quality for direct weights in the range of 150 to 400 psi, but stretch concentrations at string roots make strung ribs unacceptable for basic high-pressure services.

Installation Requirements and Practical Considerations

Welding Procedures and Quality Control

Installing welding neck spines requires qualified welders, suitable welding hardware, and thorough quality control methods to guarantee joint astuteness meets code requirements. The establishment handle starts with exact pipe cutting to accomplish square closes with appropriate incline points, followed by fit-up strategies that adjust the spine bore concentrically with the pipe inside. Welders must follow after affirmed welding strategy determinations that characterize parameters including anode choice, preheat temperatures, and warm input rates. Non-destructive examination methods such as radiographic testing or ultrasonic assessment confirm weld quality by identifying inner abandons or splitting that seem to compromise joint quality. This comprehensive quality affirmation handle guarantees welding neck ribs convey the unwavering quality required for basic services, in spite of the fact that it increases installation time and costs compared to less complex association methods.

Threaded Connection Assembly Procedures

Threaded spine establishment offers critical straightforwardness preferences by disposing of welding hardware and specialized labor capabilities. The gathering preparation includes cleaning both the rib strings and pipe strings, followed by the application of a suitable string sealant consistent with the framework liquid and working temperature. Installers must carefully begin the string engagement by hand to dodge cross-threading that harms string shapes, at that point utilize pipe torques to fix the association while observing torque. The mechanical nature of strung associations makes them powerless to vibration releasing in applications with responding gear, regularly requiring bolt wires or thread-locking compounds to keep up legitimate snugness throughout the system's operational life.

Cost Analysis for Installation and Maintenance

Economic considerations significantly influence flange selection decisions. Welding neck flanges typically cost 30 to 50 percent more than threaded flanges due to their complex tapered hub geometry requiring additional machining operations. Installation labor costs for welding neck flanges exceed threaded alternatives because welding operations demand certified welders and extended installation timeframes. However, the superior reliability and extended service life of welded connections often justify these higher initial investments for critical systems. Threaded flanges offer attractive economics for non-critical, low-pressure applications where their lower material costs and rapid installation enable project budget savings. Maintenance considerations favor threaded flanges for systems requiring frequent disassembly, though thread damage during repeated assembly cycles may eventually necessitate component replacement.

Performance Characteristics in Different Service Conditions

High-Pressure System Applications

Welding neck ribs rule high-pressure applications where their basic design gives the quality vital to contain extraordinary inner strengths securely. The decreased center plan disperses the push slowly from the rib ring into the pipe divider, minimizing stretch concentration components. Frameworks working over 600 psi regularly indicate welding neck spines solely, as their full-penetration butt welds make joints drawing closer to base metal quality. Businesses that count on petrochemical preparation and offshore oil generation depend on welding neck ribs to maintain control and judgment. Strung spines demonstrate insufficient support for high-pressure applications since string engagement givesa restricted load-bearing range concentrated at the string roots, where push concentrations advance weakness split initiation.

Vibration and Thermal Cycling Environments

Systems subjected to mechanical vibration or thermal cycling demand flanges capable of maintaining joint integrity despite dynamic loading conditions. Welding neck flanges excel because their welded construction creates permanent joints immune to vibration-induced loosening. The metallurgical bond prevents fretting wear and maintains precise alignment throughout countless cycles. Threaded flanges present concerns in vibration-prone installations because mechanical thread engagement allows micro-movements that gradually loosen the connection. Temperature variations compound this vulnerability by causing differential thermal expansion, creating cyclic stress patterns that accelerate thread wear.

Corrosive Media and Material Requirements

Welding neck ribs offer advantages in destructive situations when created from corrosion-resistant combinations that give prevalent resistance to chemical assault. The full-penetration weld makes a homogeneous erosion obstruction without a cleft or different metal interface. Strung spines in destructive applications confront challenges since the string shape makes a cleft where forceful chemicals concentrate, advancing setting erosion. String sealants must illustrate chemical compatibility with prepared liquids while maintaining up fixing adequacy, restricting material choices in highly corrosive services.

Conclusion

Welding neck ribs and strung spines serve particular parts, with welding neck spines advertising predominant quality for high-pressure applications and strung ribs giving prudent arrangements for low-pressure frameworks. At HEBEI RAYOUNG PIPELINE Innovation CO., LTD., we supply both rib sorts fabricated to universal measures with ISO 9001:2015 certification and GOST-R compliance, guaranteeing reliable quality for differing mechanical projects.

FAQ

1. Which flange type is better for high-pressure applications?

Welding neck flanges are definitely superior for high-pressure applications above 600 psi due to their tapered hub design and full-penetration butt weld construction. The gradual stress transition enables these flanges to safely contain pressures exceeding 5000 psi across Class 150 through Class 2500 ratings. Threaded flanges are limited to lower-pressure services, typically below Class 300.

2. Can threaded flanges be used in high-temperature services?

Threaded flanges have limited suitability for high-temperature applications due to thermal expansion effects and thread sealant degradation. While specially formulated sealants can withstand temperatures up to 500°F, differential thermal expansion creates stress concentrations at threads. Welding neck flanges is preferred for high-temperature services because their welded construction accommodates thermal expansion without compromising joint integrity.

3. Which flange type requires less installation time?

Threaded flanges install significantly faster than welding neck flanges because they eliminate welding operations and quality inspection procedures. A threaded flange connection can be completed in minutes by applying thread sealant and tightening the assembly. Welding neck flanges require qualified welders and non-destructive testing, extending installation timeframes but delivering superior long-term reliability.

4. Are threaded flanges suitable for vibration-prone systems?

Threaded flanges are generally unsuitable for systems with significant vibration because mechanical thread engagement allows micro-movements that gradually loosen connections. Welding neck flanges are strongly preferred for vibration-prone applications because their permanent welded construction eliminates loosening concerns and maintains joint integrity without maintenance intervention.

HEBEI RAYOUNG PIPELINE: Leading Flanges Manufacturers and Suppliers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we believe that excellent infrastructure starts with dependable materials. As one of the leading pipes and fittings manufacturers, we supply high-quality flanges, including welding neck, threaded, slip-on, and blind configurations that stand the test of time. Our comprehensive product range encompasses carbon steel, stainless steel, and alloy flanges manufactured to ASME, DIN, and GOST standards, all backed by ISO 9001:2015 certification and SGS validation. We understand the importance of consistent quality in every application, from residential buildings to industrial plants. Contact us today at info@hb-steel.com for competitive quotations and technical support.
