The 13 Types of Flanges for Piping: ASME B16.5 Standard & Special Shapes

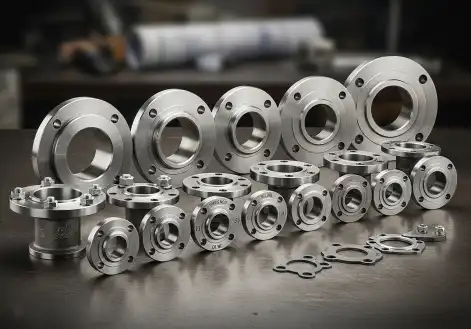

Industrial flanges are important parts of piping systems because they make connections that are safe and can handle high temperatures and pressures in a wide range of situations. The ASME B16.5 standard describes thirteen different types of flanges, each designed to work with certain materials and in certain ways. These standard industrial flanges make sure that all kinds of pipeline networks, from home water systems to large industrial processing plants, are safe, reliable, and compatible. When engineers and procurement specialists know about the features and uses of each type of flange, they can choose the best options for their projects while still following international standards.

Understanding ASME B16.5 Standard Flange Classifications

Weld Neck Flanges: The Premium Connection Solution

Weld neck flanges represent the gold standard among industrial flanges, featuring a long tapered hub that provides exceptional strength and stress distribution. These flanges are perfect for high-pressure, high-temperature uses because they turn from pipe to flange gradually, so there are no sharp corners that could cause stress concentration points. When the pipe and flange are welded together, the link is smooth and strong. For important jobs where failure is not an option, these industrial flanges are often used in places like power plants, petrochemical plants, and underwater drilling platforms. To make the system work better as a whole, the smooth bore design reduces noise and pressure drop. Precision machining makes sure that the dimensions are correct according to ASME B16.5 standards, and forging methods align the grain structure for maximum strength.

Slip-On Flanges: Versatile and Cost-Effective

Slip-on flanges offer an economical alternative while maintaining reliable performance in moderate pressure applications. These industrial flanges slide over the pipe end and are welded both inside and outside, creating a strong mechanical connection. Compared to weld neck configurations, this design makes fitting easier and saves money on materials. Water treatment plants, HVAC systems, and general industry piping where pressures stay in moderate ranges are common places to use it. The two-welding rule makes sure that the system doesn't leak and allows for some pipe misalignment during installation. For long-term dependability, quality control methods pay attention to the properties of the heat-affected zone and how deeply the weld penetrates the material. These flanges are especially useful for retrofitting situations where current pipe systems need to be changed or made bigger without having to be completely rebuilt.

Socket Weld Flanges: Precision for Small Bore Applications

Socket weld flanges excel in small bore piping systems, typically ranging from half-inch to two-inch nominal pipe sizes. The socket design makes it easy to place the pipe precisely and is more resistant to wear than threaded connections. There is a hole in these industrial flanges for the pipe end, and then there is a fillet weld around the outside. The design gets rid of any cracks inside that could hold toxic materials or make the flow pattern rough. Precision in manufacturing makes sure that socket depths stay the same and that internal profiles stay smooth so that flow qualities don't change. When installing, it's important to leave enough space between the pipe end and the socket bottom to allow for thermal growth and keep the pipe from cracking. These flanges are used a lot in high-pressure steam systems, instrumentation lines, and sample systems where dependability and leak-tightness are very important.

Special Shape Flanges and Custom Applications

Blind Flanges: Sealing System Endpoints

Blind flanges serve as permanent or temporary closures in piping systems, providing access points for maintenance while maintaining system integrity. These solid disc-shaped industrial flanges don't have any openings in the middle, which makes them perfect for testing systems, adding on in the future, and getting to equipment for repair. The strong design can handle the full system temperature and pressure levels and has a flat surface for installing gaskets. When making something, the face finish and shape need to be carefully checked to make sure they work well for sealing. Pressure vessel nozzles and pipeline termination spots where future connections may be needed are just a few of the places where this material is used. Blind flanges are best for hazardous service uses because they don't have any through-holes, which means there are no possible leak paths. To keep stress from building up and make sure long-term dependability, quality standards put a lot of weight on surface finish and material homogeneity.

Threaded Flanges: Non-Welded Connection Solutions

Threaded flanges provide mechanical connections without welding requirements, making them suitable for applications where heat application is restricted or undesirable. The internal threads engage with externally threaded pipe ends, creating secure connections through mechanical interference. These industrial flanges are especially useful in places where things need to be taken apart often, like repair access points or short-term installations. Getting rid of welding methods cuts down on installation time and labor costs while still allowing for changes in the field. Leak resistance and connection strength are directly affected by the length and accuracy of the pitch of the thread contact. Some common uses are for fire safety systems, compressed air networks, and process equipment that can't be welded. To make sure the threads contact and seal properly, quality control checks the surface finish and makes sure the threads are the right size and shape.

Lap Joint Flanges: Flexibility in Piping Design

Lap joint flanges work in conjunction with stub ends to provide rotational flexibility during installation while maintaining full pressure ratings. The loose flange design lets the stub end rotate, which makes it easier to line up the bolt holes in pipes with complicated shapes. These industrial flanges are very useful in situations where parts need to be taken apart often or where it's hard to line up pipes. The two-piece design splits the pressure-holding part from the bolting surface, which lets you choose the best material for each part. Corrosion-resistant materials are usually used for stub ends, while normal carbon steel can be used to make flanges. In corrosive service uses, this configuration saves money on materials while keeping the structure strong. When installing something, you need to pay close attention to where the seal goes and how the bolts are tightened so that the load is spread out evenly and there are no leaks.

Specialty Flanges for Unique Applications

Orifice Flanges: Flow Measurement Integration

Orifice flanges incorporate specialized features for flow measurement applications, including pressure tapping connections and orifice plate positioning elements. According to the system pressure ratings and structural requirements, these industrial flanges allow for correct flow measurement. For reliable orifice plate positioning and sealing performance, the bolt hole patterns and gasket surfaces have been carefully machined. For accurate differential pressure measurements, pressure tapping locations are chosen based on industry norms. Measuring accurately requires specialized machining skills and quality control methods because manufacturing errors are so important. Accurate flow measuring is needed for process control and legal compliance in chemical processing, water treatment plants, and oil and gas production. The integrated design gets rid of extra pipe connections and smaller possible leak spots while still allowing accurate measurements.

Reducing Flanges: Transitioning Between Pipe Sizes

Reducing flanges accommodate pipe size transitions within flange connections, eliminating the need for separate reducer fittings and additional joints. Different bore diameters are on each face of these specialized industrial flanges. This makes for smooth changes that reduce pressure drop and turbulence. The eccentric or concentric reduction design is chosen based on the needs of the product and the flow characteristics. In manufacturing, accurate machining is needed to keep the inside profiles smooth and the wall thicknesses evenly spread. As part of quality standards, stress analysis is used to make sure that the transition zone, where material is removed, has enough strength. Pump suction, heat exchanger connections, and process equipment where room doesn't allow for separate reducer parts are all common uses. While keeping full pressure ratings, the integrated design makes installation easier and cuts down on possible leak spots.

Spectacle Blind Flanges: Operational Flexibility

Spectacle blind flanges combine solid blind and open configurations in a single rotating assembly, providing operational flexibility for system isolation and flow control. The figure-eight shape allows rotation between blocking and flow positions without removing the flange assembly from the pipeline. These industrial flanges are necessary in places where the system needs to be shut down often for repair or seasonal changes. The pivot mechanism needs to be able to handle the full system temperature and pressure while also giving a reliable sign of where it is located. To make sure the right sealing and flow properties, both the solid and open parts must be machined with great care. Quality control looks at the features of the material at the pivot point and on the sealing surfaces to make sure they don't break when loads are cycled. Some uses for this technology are seasonal process lines, repair isolation points, and emergency shutdown systems that need to be able to be set up quickly.

Conclusion

The thirteen sorts of ribs characterized by ASME B16.5 standard give comprehensive arrangements for different channeling applications, from essential utility associations to specialized mechanical forms. Each spine sort offers one of a kind preferences in terms of quality, establishment comfort, and operational adaptability, empowering engineers to optimize framework execution whereas keeping up security and unwavering quality guidelines.
