Pipe Spools vs. Flanges: Which is Right for Your Project？

When planning industrial piping systems, choosing between pipe spools and flanges is a big choice that affects how well the project works, how much maintenance it needs, and how well it works in the long run. To help engineers and project managers make smart choices for their specific projects, this in-depth look at the main differences between these two important parts is highly recommended. For the best system, you need to know the pros and cons of each option, whether you're working with high pressure, a system that needs a lot of maintenance, or setups that need to be as cheap as possible. Steel pipe flanges serve as removable connection points, while pipe spools offer pre-fabricated assembly solutions that can significantly reduce on-site installation time and complexity.

Understanding Pipe Spools and Their Applications

What Are Pipe Spools and Their Core Benefits?

Pipe spools represent pre-fabricated piping assemblies manufactured in controlled shop environments before transportation to installation sites. These assemblies typically include straight pipe sections, fittings, valves, and connection points welded together according to precise specifications. Shop manufacturing is better for quality control than field assembly because it allows for better welding conditions, thorough testing, and accurate measurements. Steel pipe flanges built into spool designs provide strategic joining points that make the system flexible while keeping the structure strong. Modern methods for making spools use advanced welding techniques, non-destructive testing methods, and quality control processes that go above and beyond what is normally expected for field installation. This controlled setting makes it much less likely that defects, rework, and installation delays will happen, which are common problems with field-assembled systems.

Cost Considerations for Pipe Spool Implementation

When you choose pipe spools, you save money on more than just the cost of the materials. You also save money on labor, quality control, and long-term upkeep. Spool fabrication may require a bigger initial investment than field assembly, but because less skilled labor is needed at installation sites, the total cost savings are often very large. Adding steel pipe ends to spool designs gets rid of the need for complicated field welding, which cuts down on both the time needed to do the work and the need for specialized tools. Transportation costs are an important factor to think about because spools that are too big may need special handling and routing plans. But the shorter installation plan usually makes up for these costs by shortening the project and lowering the overhead costs that come with it. Controlled fabrication environments lead to better quality products that last longer and require less upkeep. This saves money in the long run and makes the initial premium investments worthwhile.

Installation Advantages and Practical Considerations

Installing a pipe spool has many operational benefits that make building go more smoothly and lead to better project results. When pre-fabricated parts get to job sites, they are ready to be installed right away. This means that welding operations don't depend on the weather and there are fewer critical path dependencies. Steel pipe flanges that are already on the spools make it easy to connect the pipes quickly, which cuts down on system downtime during repair or expansion work. Multiple installation crews can work at the same time without any problems because spool systems are modular and allow for parallel building activities. The benefits of quality control stretch to the installation stages, as accurate measurements achieved during fabrication in the shop cut down on fit-up problems and the time they take to fix. But for spool implementation to go smoothly, the design, manufacturing, and installation teams need to work together closely to make sure that the interfaces are managed correctly and that transportation is arranged in the best way possible.

Steel Pipe Flanges: Flexibility and Maintenance Advantages

Flange Types and Selection Criteria

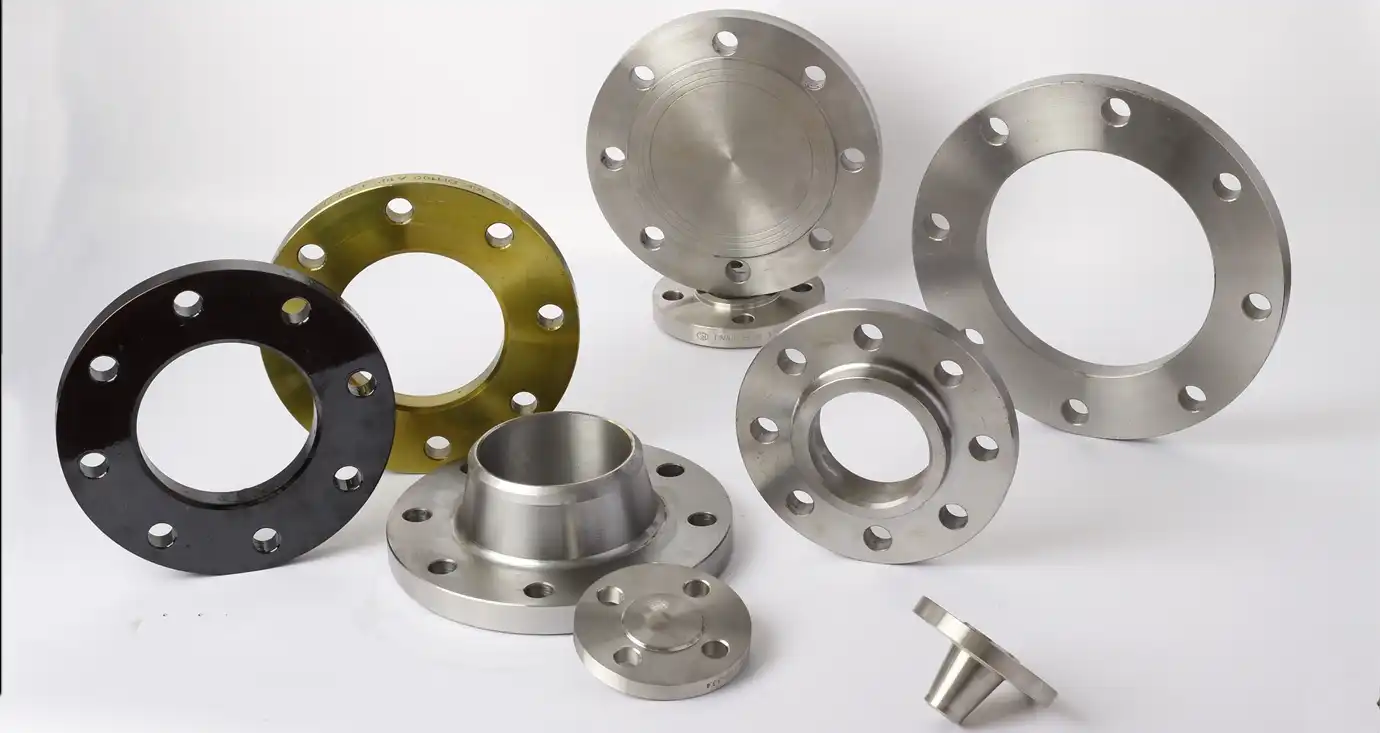

Steel pipe flanges encompass various configurations designed to meet specific pressure ratings, temperature requirements, and service conditions. Raised face flanges provide standard sealing surfaces for general applications, while ring-type joint flanges accommodate high-pressure scenarios requiring metal-to-metal sealing. Flat face designs suit low-pressure applications and cast iron equipment connections, ensuring compatibility across diverse system components. Selection criteria must consider operating pressure, temperature fluctuations, fluid characteristics, and maintenance accessibility requirements. Steel pipe flanges manufactured according to ASME B16.5 standards ensure dimensional compatibility and performance reliability across different manufacturers and suppliers. Material selection becomes critical in corrosive environments, where specialized alloys or coatings may be necessary to achieve desired service life expectations. Proper flange selection directly impacts system reliability, maintenance requirements, and long-term operational costs.

Maintenance Benefits and Accessibility Features

The removable nature of steel pipe flanges provides unparalleled maintenance advantages in industrial piping systems. Unlike welded connections that require cutting and re-welding for equipment access, flanged connections enable rapid disassembly and reassembly without specialized tools or extensive downtime. This makes it very helpful for equipment like pumps, valves, and instruments that need to be inspected, cleaned, or replaced on a regular basis. Modular system design is easier with steel pipe flanges because they let individual parts be serviced or improved without affecting equipment nearby. Breaking connections at set places makes troubleshooting and repairs go more quickly and easily, which lowers maintenance costs and system downtime by a large amount. However, using the right bolt torque and gasket selection are still very important for keeping links leak-tight over time. Regular inspection procedures help find problems before they damage the system or put people in danger.

Design Flexibility and System Adaptability

Flanged connections offer exceptional design flexibility that accommodates changing operational requirements and future system modifications. Steel pipe flanges enable easy integration of new equipment, instrumentation, or process modifications without extensive system redesign or reconstruction. This ability to change is especially useful in highly fluid industry settings where production needs change over time. The standard form of flanged connections makes it easier to get equipment from more than one source, which reduces reliance on a single manufacturer and increases the chance of getting a good deal. Using the right joint spacing and support design, flanged systems can handle thermal expansion, which keeps stress-related failures from happening in temperature-cycling situations. However, the higher number of possible leak points means that joint integrity must be carefully monitored and inspection methods must be followed on a regular basis. Correctly choosing the gasket and tightening the bolts are very important for getting reliable, long-lasting performance from flanged pipe systems.

Project-Specific Selection Guidelines

Pressure and Temperature Considerations

System operating conditions fundamentally influence the choice between pipe spools and steel pipe flanges in industrial applications. Welded spool assemblies are better for high-pressure systems because they have continuous wall thickness and better structural stability. They also get rid of the possible leak paths that come with bolted connections. Steel pipe flanges have a benefit in allowing for differential movement between system components during temperature cycling applications, but careful consideration of thermal expansion effects on both connection types is required. For cryogenic uses, welded construction is often best because it keeps heat from moving through the joints. On the other hand, for high-temperature uses, you may need special flange materials or welding methods. Steel pipe flanges that are rated for certain pressure classes offer standard solutions that make sure that different uses are safe and compatible. During the selection process, it's important to think about not only steady-state working conditions, but also transient conditions, the need for pressure testing, and any upsets that might happen while the system is running.

Maintenance Frequency and Accessibility Requirements

The anticipated maintenance schedule and accessibility requirements significantly influence connection type selection in piping system design. Systems requiring frequent equipment access, inspection, or component replacement benefit from the removable nature of steel pipe flanges, which enable rapid disassembly without specialized tools or hot work procedures. Permanent installations with minimal maintenance requirements often favor welded spool construction, which eliminates potential leak points and reduces long-term inspection obligations. Underground or inaccessible locations typically employ welded connections to minimize maintenance requirements, while accessible areas benefit from flanged connections that facilitate future modifications. Steel pipe flanges are especially useful in process industries where frequent system access is needed to clean equipment, replace catalysts, or do regular inspections. The choice has to weigh the costs of the initial installation against the costs of long-term upkeep, taking into account both planned and unplanned maintenance tasks that need to be done throughout the system's lifecycle.

Economic Analysis and Long-Term Value

Comprehensive economic analysis encompasses initial installation costs, maintenance expenses, and lifecycle value considerations when selecting between pipe spools and steel pipe flanges. While spool fabrication may require higher initial investment, reduced field labor costs and improved quality often provide superior overall value. Flanged connections offer lower initial material costs but may incur higher long-term maintenance expenses due to increased inspection requirements and potential gasket replacement needs. Because they are flexible, steel pipe flanges make it possible to change systems in the future without having to rebuild them from scratch, which is very useful in industrial settings that are always changing. The analysis has to look at things that are unique to the project, like the availability of workers, the time limits on installation, the quality standards, and the long-term plans for operations. As part of the risk assessment, each type of link should be looked at in terms of its possible failure modes, repair costs, and downtime effects.

Conclusion

It is important to carefully think about the needs of the project, the working conditions, and the long-term goals when choosing between pipe spools and steel pipe flanges. Flanked connections are the most flexible and easy to maintain, while pipe spools are better for quality control and installation speed. If you look at things like pressure ratings, maintenance needs, and system adaptability needs, and then balance initial prices against lifecycle value, you'll find the best choice. If you need reliable performance in a wide range of industrial settings, HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. has complete options for both types of connections.

FAQ

1. What are the primary cost differences between pipe spools and flanged connections?

Pipe spools typically require higher initial investment due to shop fabrication costs but offer reduced field labor expenses and improved installation efficiency. Steel pipe flanges provide lower upfront material costs but may incur higher long-term maintenance expenses through regular inspection and gasket replacement requirements. The total cost analysis should consider project duration, labor availability, and lifecycle maintenance obligations.

2. How do pressure ratings affect the choice between spools and flanges?

Welded spool structure is often better for high-pressure uses because the walls are thick all the way through and there are no possible leak paths. Steel pipe flanges that are rated for certain pressure classes offer standard options for moderate-pressure applications and make maintenance easier. The choice is based on the working pressure, safety concerns, and the need for easy maintenance access.

3. Which option provides better long-term reliability and performance?

Welded spool assemblies have better structural stability and fewer places where leaks could happen, so they are very reliable over time. Steel pipe flanges need to be maintained and inspected on a regular basis, but they are easier to get to for system changes and equipment repair. The best choice relies on how easy it is to maintain, how accessible it needs to be, and how important the system is.

4. How do installation timelines compare between these two approaches?

Pipe spools significantly reduce on-site installation time through pre-fabrication and modular assembly techniques. Steel pipe flanges require additional field assembly time but offer greater installation flexibility and reduced transportation constraints. The selection should consider project schedule constraints, weather dependencies, and available skilled labor resources.

HEBEI RAYOUNG PIPELINE: Leading Steel Pipe Flanges Manufacturers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we excel as premier steel pipe flanges manufacturers, delivering exceptional quality and innovation across diverse industrial applications. Our comprehensive product range includes buttweld steel elbows, reducers, and certified flanges that meet international standards including GOST-R and SGS certifications. With ISO 9001:2015 certification, we ensure consistent quality and performance that exceeds customer expectations. Our engineering expertise spans from residential installations to complex industrial projects, providing tailored solutions that optimize system performance and reliability. Whether you need pipe spools or steel pipe flanges, our experienced team delivers dependable materials that form the foundation of excellent infrastructure. Contact us today at info@hb-steel.com to discuss your specific requirements and discover why leading companies trust RAYOUNG for their critical piping needs.
