Butt Weld Fitting and its Various Advantages in Detail

Butt weld fittings represent one of the most reliable and efficient connection methods in modern industrial piping systems. These specialized components create seamless, permanent joints between pipes through high-temperature welding processes, ensuring optimal flow characteristics and structural integrity. Understanding the comprehensive advantages of butt weld fittings is crucial for engineers, contractors, and facility managers seeking durable, cost-effective piping solutions. This detailed exploration examines the technical benefits, installation processes, and industry applications that make these fittings indispensable across various sectors including petrochemical, water treatment, and manufacturing industries.

Superior Structural Integrity and Connection Strength

Enhanced Joint Reliability Through Metallurgical Bonding

Butt weld fittings create exceptionally strong connections through complete metallurgical fusion between pipe sections. The welding process eliminates the weakest points typically found in mechanical joints, resulting in connections that often exceed the strength of the parent pipe material itself. This superior bonding occurs when both pipe ends are heated to their melting point and fused together, creating a homogeneous metal structure. The process requires careful preparation of both surfaces, ensuring they are clean, flat, and properly aligned before welding. Professional welders use specialized equipment capable of maintaining consistent high temperatures while preventing warping or distortion during the cooling phase.

Pressure and Temperature Resistance Capabilities

The seamless nature of butt weld fittings enables them to withstand extreme operating conditions that would compromise other connection methods. These fittings maintain their structural integrity under high-pressure applications, making them ideal for critical systems in oil refineries, chemical processing plants, and power generation facilities. The continuous metal structure eliminates stress concentration points that could lead to failure under thermal cycling or pressure fluctuations. Additionally, the absence of gaskets or sealing compounds means these connections perform reliably across wide temperature ranges without degradation of sealing materials.

Long-term Durability and Service Life

Properly installed butt weld fittings provide decades of maintenance-free service due to their robust construction and corrosion resistance. The welded joint creates a barrier against environmental factors that typically cause deterioration in mechanical connections. Unlike flanged or threaded connections that may require periodic maintenance, tightening, or seal replacement, welded joints remain stable throughout their service life. This durability translates into significant cost savings through reduced maintenance requirements and extended system uptime, particularly valuable in continuous-process industries where unplanned shutdowns are extremely costly.

Optimal Flow Characteristics and System Efficiency

Smooth Internal Profile for Enhanced Flow Dynamics

Butt weld fittings maintain the internal diameter of the connected pipes, creating smooth, unobstructed flow paths that minimize pressure losses and turbulence. This seamless internal profile is particularly advantageous in applications where flow efficiency directly impacts system performance and energy consumption. The absence of internal protrusions, gaskets, or recesses eliminates potential collection points for debris, scaling, or biological growth that could compromise system cleanliness or create blockages. Process engineers appreciate this feature in sanitary applications where maintaining smooth, cleanable surfaces is essential for product quality and regulatory compliance.

Reduced Pressure Drop and Energy Consumption

The streamlined internal geometry of properly installed butt weld fittings significantly reduces pressure drop across the piping system compared to other connection methods. This reduction in hydraulic losses translates directly into lower pumping costs and improved overall system efficiency. In large-scale industrial applications, these energy savings can amount to substantial operational cost reductions over the system's lifetime. The smooth flow characteristics also reduce the risk of cavitation in pumping systems and minimize wear on downstream equipment by reducing turbulence and flow disturbances.

Elimination of Dead Spaces and Contamination Points

The flush internal profile created by butt weld fittings eliminates dead spaces where contaminants, bacteria, or process materials could accumulate. This characteristic is particularly valuable in pharmaceutical, food processing, and biotechnology applications where system cleanliness is paramount. The continuous internal surface facilitates thorough cleaning and sterilization procedures, ensuring compliance with strict hygiene standards. Additionally, the absence of crevices or gaps prevents the formation of biofilms or the accumulation of particles that could compromise product purity or system performance.

Versatile Industrial Applications and Installation Benefits

Wide Range of Industry Applications

Butt weld fittings serve critical roles across diverse industrial sectors, from waste treatment plants and oil processing facilities to breweries and nuclear power stations. In the chemical and petrochemical industries, these fittings handle corrosive substances and extreme operating conditions that would quickly degrade other connection types. Cryogenic applications benefit from the thermal stability and leak-tight performance of welded connections when handling liquefied gases at extremely low temperatures. Paper and pulp production facilities rely on these fittings for their ability to resist the corrosive effects of processing chemicals while maintaining system integrity under varying temperature and pressure conditions.

Simplified Installation and Quality Control

The installation process for butt weld fittings, while requiring skilled welding personnel, offers excellent quality control opportunities through non-destructive testing methods. Visual inspection, radiographic testing, and ultrasonic examination can verify weld quality and ensure complete penetration and proper fusion. This level of quality assurance is particularly important in critical applications where connection failure could result in safety hazards or environmental consequences. The welding process itself, when properly executed using oxy-acetylene torches or other appropriate equipment, creates joints that require minimal finishing work beyond removing excess material and achieving the desired surface finish.

Cost-Effective Long-term Solution

Although butt weld fittings may require higher initial installation costs due to skilled labor requirements, they provide exceptional long-term value through their extended service life and minimal maintenance needs. The permanent nature of welded connections eliminates recurring costs associated with gasket replacement, bolt retorquing, and other maintenance activities common with mechanical connections. In applications where system reliability is critical, the reduced risk of unexpected failures and associated downtime costs more than justifies the initial investment in welded connections.

Conclusion

Butt weld fittings represent the pinnacle of piping connection technology, offering unmatched reliability, efficiency, and durability across diverse industrial applications. Their superior structural integrity, optimal flow characteristics, and versatile installation capabilities make them the preferred choice for critical piping systems. The seamless connections created through precision welding processes ensure long-term performance while minimizing maintenance requirements and operational costs, making them an invaluable component in modern industrial infrastructure.

HEBEI RAYOUNG PIPELINE: Your Trusted Butt Weld Fittings Manufacturer

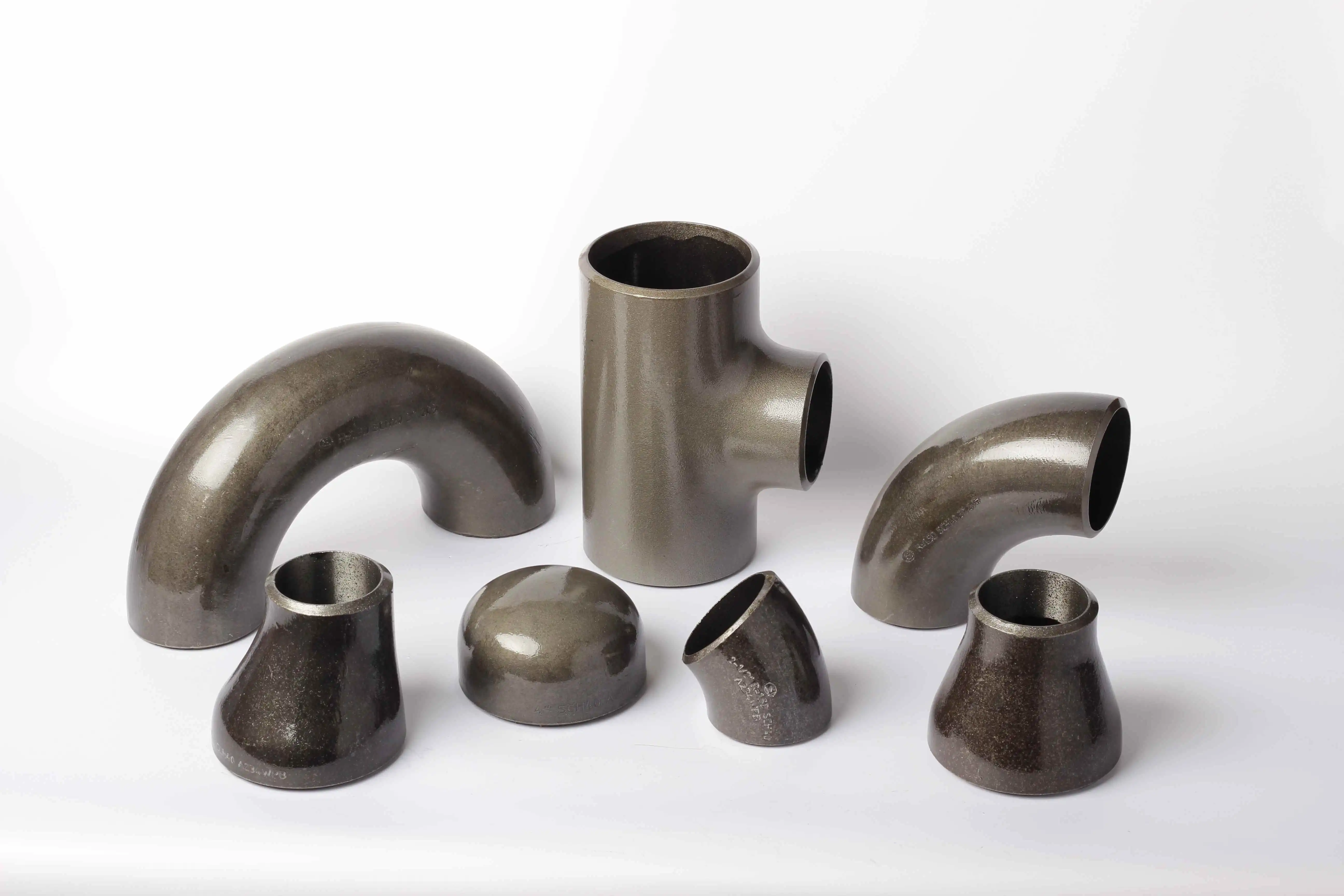

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we believe that excellent infrastructure starts with dependable materials. As one of the leading pipes and fittings manufacturers, we supply high-quality butt weld fittings and steel pipes that stand the test of time. Our comprehensive product lineup includes buttweld steel elbows, reducers, and flanges, all manufactured to exceed industry standards and ensure secure connection points for your most demanding applications. With GOST-R and SGS certifications validating our export compliance and quality systems, along with ISO 9001:2015 certification, we consistently serve domestic and global markets with innovative solutions. Ready to experience the RAYOUNG difference in your next project? Contact us today at info@hb-steel.com to discuss your specific requirements and discover how our expertise can enhance your piping system performance.
