10 Different Types of Flanges and Their Uses

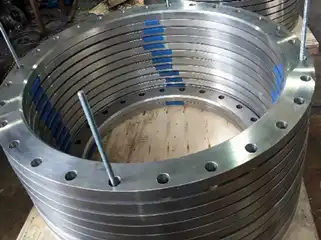

Many types of flanges are used in industrial piping systems to connect pipes, valves, and equipment parts in a safe and effective way. Because engineers, project managers, and procurement specialists need to choose the best connection options for their needs, they need to know what the different types of flanges are and how they can be used. To deal with different operating problems, pressure needs, and installation limitations, steel pipe flanges are made in a number of different designs. Different types of flanges make sure that every industrial piping problem has a perfect solution that balances performance, cost-effectiveness, and long-term dependability. These solutions range from welded connections for high-pressure uses to removable joints for easy upkeep.

Primary Flange Categories for Industrial Applications

Weld Neck Flanges for High-Pressure Systems

When it comes to high-pressure industrial uses, weld neck flanges are the best. They have a unique curved hub that makes them very strong and evens out stress. It is built so that these steel pipe flanges can handle high pressures while keeping stress levels low where the pipe meets the flange. The built-in hub design makes it possible for smooth bore transitions that lower turbulence and pressure drops in flowing systems. This makes them perfect for use in power plants, petrochemical plants, and high-pressure steam delivery networks, where they are needed most. When the connection is welded, a permanent joint is made that removes any possible leak paths and gives better fatigue protection under cyclic loading conditions. Manufacturing standards require precise machining tolerances to ensure proper fit-up and optimal performance, with materials typically conforming to ASTM A105 for carbon steel applications or specialized alloy grades for corrosive environments.

Slip-On Flanges for Versatile Connection Solutions

Slip-on flanges offer exceptional installation flexibility and cost-effectiveness for medium-pressure applications where ease of assembly and maintenance access are primary considerations. These steel pipe flanges feature a bore diameter slightly larger than the pipe outside diameter, allowing the pipe to slip through the flange before welding both inside and outside the hub. This dual-welding approach provides reliable sealing and structural integrity while permitting some adjustment during installation to accommodate minor alignment issues. The relatively simple manufacturing process and reduced material requirements make slip-on flanges an economical choice for water treatment facilities, HVAC systems, and general industrial piping where pressures remain within moderate ranges. The ability to position and reposition the flange during fit-up operations significantly reduces installation time and labor costs, particularly in complex piping configurations where precise alignment is challenging.

Socket Weld Flanges for Small Bore Applications

Socket weld flanges excel in small bore piping systems where welding access is limited and connection reliability is paramount. These specialized steel pipe flanges incorporate a recessed socket that accepts the pipe end, providing positive positioning and a controlled welding gap that ensures consistent joint quality. The socket design eliminates the need for precise pipe cutting lengths while creating a smooth internal flow path that minimizes pressure losses and reduces erosion potential in high-velocity applications. Manufacturing specifications typically limit socket weld flanges to smaller pipe sizes where the socket depth can be properly controlled and welding procedures can be effectively implemented. The concentrated heat input during welding and the resulting metallurgical properties make these flanges particularly suitable for instrumentation connections, sampling systems, and other applications where joint integrity is critical but disassembly frequency is minimal.

Specialized Flange Designs for Unique Requirements

Blind Flanges for System Isolation and Testing

Some of the most important parts of a piping system are the blind flanges, which allow for full closure during testing, maintenance, and future growth. These solid steel pipe flanges don't have any holes in the middle, so they form an absolute barrier that can withstand full system pressure while still letting certain parts of the system be shut off temporarily or permanently. The robust construction and complete sealing capability make blind flanges indispensable for hydrostatic testing procedures, system commissioning activities, and maintenance operations where positive isolation is required for safety compliance. Manufacturing considerations include adequate thickness to resist pressure-induced deformation and proper bolt hole patterns to ensure compatibility with mating flanges. Since blind flanges can be put on and taken off without draining the system, they are useful for process businesses that need to keep safety standards while minimizing production interruptions.

Threaded Flanges for Non-Welded Connections

Threaded flanges provide effective connection solutions in applications where welding is prohibited, impractical, or undesirable due to material considerations or operational constraints. The internal threads on these steel pipe flanges meet standard pipe threading specifications. This makes mechanical connections that can be put together and taken apart without special welding tools or hot work permits. For low to medium pressure uses, the threaded connection mechanism spreads loads across multiple thread engagements. This makes it strong enough while still allowing piping parts to be changed or moved as operational needs change. How the thread compound is used and the right engagement length are two very important factors that affect how well the link seals and how reliable it is over time. The installation process needs to take into account the effects of temperature expansion and possible loosening due to vibrations to make sure the system works properly for the whole time it's supposed to.

Lap Joint Flanges with Stub End Combinations

Lap joint flanges work in conjunction with stub ends to create economical solutions for systems requiring frequent disassembly or those constructed from expensive alloy materials. The stub end component, manufactured from the same material as the piping system, provides corrosion resistance and compatibility while the separate lap joint flange, typically made from carbon steel, supplies the mechanical strength and bolt load distribution necessary for proper sealing. This configuration allows steel pipe flanges to be used with stainless steel, nickel alloy, or other specialized piping materials without requiring expensive flange materials throughout the system. The loose fit between the lap joint flange and stub end accommodates minor misalignments while the butt-welded stub end connection ensures metallurgical compatibility and corrosion resistance. Assembly procedures require careful attention to gasket positioning and bolt tightening sequences to achieve uniform sealing loads and prevent gasket damage during installation.

Advanced Flange Configurations for Demanding Applications

Reducing Flanges for Size Transitions

Reducing flanges integrate size transition capabilities directly into the flange connection, eliminating the need for separate reducer fittings while maintaining compact installation profiles. These specialized steel pipe flanges feature different bore diameters on opposite faces, allowing direct connection between pipes of different sizes while providing standard bolt patterns for equipment interfaces. The integrated reduction eliminates potential leak points that might occur with separate reducer-flange combinations while reducing overall system weight and installation complexity. Manufacturing requirements include precise machining to ensure smooth bore transitions that minimize pressure losses and turbulence effects in the flowing medium. Material selection and wall thickness calculations must account for the varying stress distributions that result from the asymmetrical geometry and different pressure loading conditions on each face of the flange.

Orifice Flanges for Flow Measurement Integration

Orifice flanges incorporate specialized features that facilitate flow measurement while maintaining standard connection capabilities for seamless system integration. These precision-manufactured steel pipe flanges include pressure tapping provisions, gasket positioning guides, and bolt hole patterns designed specifically for orifice plate flow measurement applications. The raised face design and controlled surface finish ensure proper orifice plate positioning and sealing while the integral pressure taps provide accurate static pressure measurements upstream and downstream of the flow restriction. Manufacturing tolerances are particularly critical for orifice flanges since measurement accuracy depends directly on precise orifice plate positioning and gasket compression uniformity. Quality control procedures typically include dimensional verification, surface finish measurement, and pressure tap alignment confirmation to ensure compliance with flow measurement standards and calculation procedures.

Expander Flanges for Diameter Increases

Expander flanges provide controlled pipe diameter increases while maintaining flange connection capability at both ends of the transition. These engineered steel pipe flanges feature carefully designed expansion profiles that minimize pressure losses and flow disturbances while providing adequate structural strength for the increased internal pressures that may result from flow velocity changes. The gradual diameter transition incorporated into the flange body eliminates the need for separate expander fittings while reducing installation space requirements and potential leak points. Computational fluid dynamics analysis often guides the internal profile design to optimize flow characteristics while finite element analysis verifies structural adequacy under operating conditions. Manufacturing processes must maintain precise dimensional control throughout the expansion section to ensure proper flow performance and eliminate areas where particulate matter might accumulate or cause erosion problems.

Conclusion

The diverse range of flange types available ensures optimal solutions for every industrial piping challenge, from high-pressure petrochemical applications to residential plumbing systems. Understanding the specific characteristics and applications of different steel pipe flanges enables informed decision-making that balances performance requirements with economic considerations. HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD.'s comprehensive flange portfolio, backed by ISO 9001:2015 certification and international compliance standards, provides reliable connection solutions that deliver lasting performance across all industrial sectors.

FAQ

1. Which flange type is best for high-pressure applications?

Weld neck flanges offer superior performance for high-pressure systems due to their tapered hub design and integral construction. The stress distribution characteristics and permanent welded connection make them ideal for pressures exceeding 600 PSI in critical industrial applications.

2. Can different flange types be connected together in the same system?

Yes, different steel pipe flanges can be connected when they share compatible bolt patterns, pressure ratings, and facing types. However, proper gasket selection and installation procedures must account for any differences in surface finishes or sealing requirements.

3. What factors determine the appropriate flange type for specific applications?

Key selection criteria include operating pressure and temperature, pipe material compatibility, installation accessibility, maintenance requirements, and economic considerations. System design specifications typically define minimum performance requirements that guide flange type selection.

4. How do threaded flanges compare to welded alternatives in terms of reliability?

Welded steel pipe flanges generally provide superior long-term reliability and pressure capability compared to threaded connections. However, threaded flanges offer installation flexibility and easier maintenance access in applications where welding is impractical or prohibited.

HEBEI RAYOUNG PIPELINE: Premier Steel Pipe Flanges Manufacturers and Suppliers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we manufacture the complete spectrum of steel pipe flanges to meet every industrial requirement with uncompromising quality and precision. Our state-of-the-art production facilities and rigorous quality control systems ensure that each flange meets international standards while delivering exceptional value for your critical applications. From standard ANSI configurations to custom-engineered solutions, our technical expertise and manufacturing capabilities provide the reliable connections your projects demand. With GOST-R and SGS certifications validating our commitment to excellence, we invite you to experience the RAYOUNG difference in your next piping project. Contact our engineering team at info@hb-steel.com to discuss your specific flange requirements and discover innovative solutions that exceed expectations.

References

1. American Society of Mechanical Engineers. ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24. New York: ASME Press, 2021.

2. British Standards Institution. BS EN 1092 Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories. London: BSI Standards, 2020.

3. American Petroleum Institute. API 6A Specification for Wellhead and Christmas Tree Equipment. Washington: API Publishing Services, 2019.

4. International Organization for Standardization. ISO 7005 Metallic flanges - Steel flanges. Geneva: ISO Publications, 2021.

5. American Water Works Association. AWWA C207 Steel Pipe Flanges for Waterworks Service - Sizes 4 In. Through 144 In. Denver: AWWA Publications, 2018.

6. Manufacturers Standardization Society. MSS SP-44 Steel Pipeline Flanges. Vienna: MSS Standards, 2020.
