Which flange type performs best in marine environments — slip-on or weld neck？

To pick the right flange type for a military setting, you should know the difference between slip-on and weld neck flanges. But when things get tough in the navy, weld neck flanges work better than slip-on flanges most of the time. Weld neck flanges are stronger, better at spreading load, and less likely to wear out or rust, all of which are important in saltwater settings. Because they are integrated, the pressures between the pipe and plate are spread out more evenly. This makes it less likely that the connection will fail. Slip-on flanges are easier to install and line up, but weld neck flanges are better for critical naval uses where dependability and life are very important because they are stronger and can close better. But before making a final flange-type choice, the person in charge of the job should think about things like pressure rates, temperature changes, and how easy it is to do upkeep.

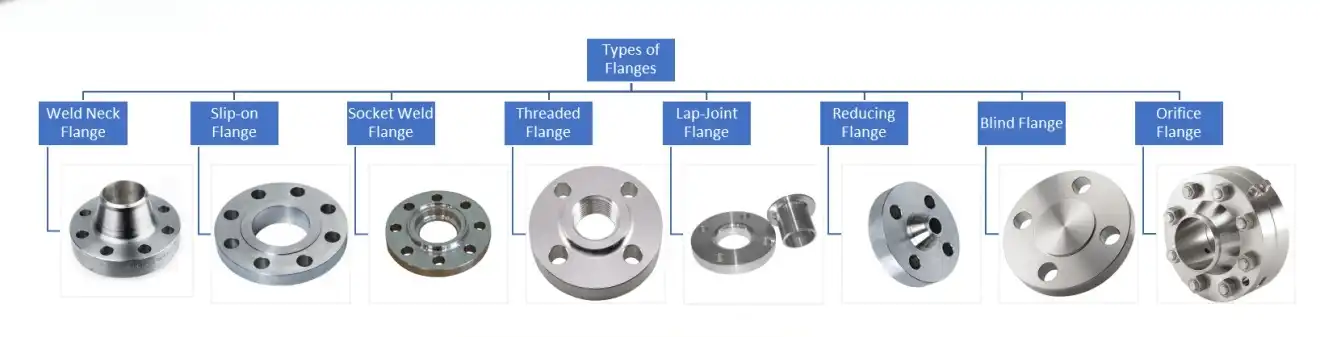

slip-on or weld neck

Which flange type offers superior corrosion resistance in marine and offshore use?

Corrosion protection is a very important thing to think about when choosing the right flange type for marine and ocean uses. Slip-on and weld neck flanges can both be made from materials that don't rust, but weld neck flanges are better at withstanding the constant attacks of saltwater and marine elements because of the way they are designed.

Weld Neck Flanges: A Fortress Against Corrosion

Weld neck flanges are very good at resisting corrosion because they fit together smoothly with the pipe. The smooth change from the pipe to the flange gets rid of holes and cracks where toxic substances can gather. This smooth shape makes crack rust less likely, which happens a lot in naval settings.

When you join the weld neck plates together with a full-penetration weld, you also make a strong, continuous shield against the elements. When you join this way, you make sure there are no weak spots or areas where rust can spread.

Slip-On Flanges: Vulnerable Points in Harsh Conditions

Some materials can be used to make slip-on plates that don't rust, but the way they're made means they might have weak places. If the base and pipe are stuck together, the area between them can hold water and things that break down metal. It may rust faster over time if this is done in places where the welds are under a lot of stress.

Also, the full-penetration welds that hold weld neck flanges in place might be safer than the fillet welds that hold slip-on flange types in place. This is where rust can start, which could make the whole link less strong.

Structural differences between slip-on and weld neck flanges under seawater exposure

Slip-on and join neck flanges work very differently when they are exposed to seawater because of how they are built. Engineers and project managers need to know these differences in order to choose the right type of flange for naval uses.

Weld Neck Flanges: Engineered for Strength

A long, curved hub that fits easily into the pipe is what makes a weld neck flange unique. This style has a number of benefits in saltwater environments:

It's easier for forces to be spread out because the hub is bent. This means that less power is concentrated in one place.
When you fully penetrate solder, the joint gets stronger and more even. This means that big loads, which happen a lot along the coast, are less likely to crack or wear it out.
There is less commotion because the fluid flows more smoothly through the hole. This makes wear and rust less likely.

Slip-On Flanges: Simplicity with Compromises

The design of slip-on flanges is easier, which can be helpful in some cases but could be a problem in tough sea environments:

Changing from the pipe to the flange quickly can cause stress buildup in some places, which could lead to wear failure in the long run.
If there is space between the flange and the pipe, cracks can form where water from the sea can gather and rust more quickly.
This type of weld is more likely to rust and wear out in coastal areas where fillet welds are used to connect slip-on flanges.

Performance Under Pressure

When used in high-pressure naval settings, the flange type and its structural changes stand out even more.

Because they are built to work together, weld neck flanges stay strong and intact even when pressures are high.
Slip-on flanges may be under more stress at the point where the pipe meets the flange, which could cause them to fail sooner in harsh circumstances.

Material coatings and protective layers for marine-grade flange systems

No matter what kind of flange is used, it is important to use the right material coats and protected layers to make them last longer and work better in marine settings. Both slip-on and weld neck flanges can last a lot longer if these safety steps are taken.

Advanced Coating Technologies

There are several modern covering methods that can protect frames from the damage that saltwater can do:

Epoxy coatings are very resistant to chemicals and stick well to metal surfaces that have been properly prepared.
Fluoropolymer coatings are great for tough sea situations because they are very resistant to poisons and wear.
Ceramic coatings are very hard and don't wear down easily. They protect against rust and weathering.

Cathodic Protection Systems

Besides coverings, cathodic protection systems are another way to keep rail systems safe:

Sacrificial Anodes: Anodes made of zinc or aluminum can be connected to the rail system. These anodes will corrode faster than the steel to protect it.
Impressed Current Systems: These systems protect against rust in a wide range of ways and require an outside power source for bigger setups.

Material Selection for Enhanced Durability

The base material for flanges can have a big effect on how well they work in sea environments:

Due to its great strength and excellent resistance to rust, duplex stainless steel is perfect for use in naval settings.
Even more rust protection is found in super duplex stainless steel, which is used in the harshest marine settings.
Nickel metals: Nickel metals like Inconel are the best at withstanding rust and high temperatures in harsh circumstances.

Engineers can make strong flange systems that can survive the hard conditions of coastal settings for long periods of time by using the right flange type, the right materials, and the right safety measures.

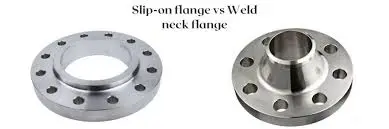

slip-on or weld neck

Conclusion

Finally, both slip-on and weld neck flanges can be used in marine settings, but weld neck flanges usually work better in terms of resistance to rust, structural stability, and long-term dependability. They are the best choice for coastal and military areas where failure is not an option because they are made to have few weak spots and better load spread.

But choosing the right flange type should always be based on a careful analysis of the specific needs of the application. This should include checks for pressure levels, changes in temperature, fitting restrictions, and maintenance problems. There are times when slip-on flanges might be better than weld neck flanges because they are simpler to set up and might cost less. This is especially true in less important or easier-to-reach uses.

No matter what kind of clamp is used, the systems should last as long as possible and work well in rough coastal places. They need to be made of the right materials and have safe covers and systems that protect against cathodic damage. Plus, you should check and fix these important things often to make sure they stay in good shape.

Scientists, engineers, and people in charge of projects that go underground or in the water need to work with suppliers who have done this before and know how to pick the right flanges. You can get useful information and ideas from these experts that are made to fit the needs of your project. That way, you can be sure that your marine setups are safe and work well in the long run.

FAQ

1. What are the main advantages of weld neck flanges over slip-on flanges in marine environments?

Full-penetration welds on weld neck flanges make buildings stronger and better at spreading stress. They also fight rust better because they are smooth. They work better in seaside areas with high pressure and rust because of these traits.

2. Are there any situations where slip-on flanges might be preferred in marine use?

Slip-on flanges may be better in cases where they need to be easy to install and line up, or in marine uses that aren't as tough and have lower pressure and rust risks. For some jobs, they may also be cheaper.

3. How important are protective coatings for marine flanges?

3. How important are protective coatings for marine flanges?
Protective coats are important for naval flanges of all types to last longer. They add another layer of protection against rust, which helps the flange system stay together in tough saltwater settings.
