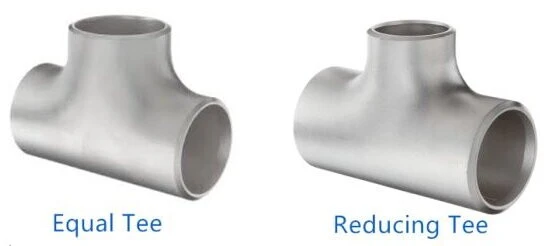

How does an equal steel tee differ from a reducing steel tee in design and flow?
Equal and lowering steel tees are designed and run differently, and are each made to meet the needs of a particular pipe system. Let's look more closely at these differences:
Equal Steel Tee Design and Flow
As the name suggests, an equal steel tee has three holes that are all the same size. The even flow can go in any direction because of the balanced shape. The branch (the straight part) and the main run (the vertical part) are both the same width, so the flow pattern is the same. It's perfect for these things:
- Keeping the flow steady throughout the system
- Making two-way flow possible
- Making estimates for fluid dynamics easier
- Providing versatility in pipe connections
In terms of flow, equal tees offer minimal resistance when fluid passes through any of the three openings. This characteristic makes them suitable for applications where flow direction may change or where equal distribution of fluid is necessary.
Reducing Steel Tee Design and Flow
A reduced steel tee, on the other hand, has at least one exit that is narrower than the main run. In pipe systems, this lopsided form is used for certain things:
- Redirecting a portion of the flow to a smaller pipe
- Reducing flow volume in one direction
- Creating pressure differentials within the system
- Accommodating different pipe sizes in a single fitting
The flow characteristics of reducing tees are more complex. There are changes in speed and pressure as the fluid goes from the main run to the smaller branch. This could cause:
- Increased flow speed in the smaller outlet
- Potential turbulence at the point of reduction
- More pronounced pressure drop compared to equal tees
Engineers and builders need to know about these changes in design and flow in order to choose the right steel tee for their pipe systems. Choosing between equal and lower steel tees can have a big effect on how well and how long a system works.
Dimensional and functional differences between equal and reducing tees
It's important to know what size and type of equal and reduced tees are used for so that they work well in pipe systems. These are the changes we need to look at more closely:
Dimensional Differences
Equal Tees:
- All three openings have the same nominal pipe size (NPS)
- Symmetrical design with consistent wall thickness
- Typically shorter in overall length compared to reducing tees
- Uniform reinforcement around all openings
Reducing Tees:
- Main run maintains a consistent NPS
- The branch opening has a smaller NPS than the main run
- Asymmetrical design with varying wall thicknesses
- Often longer in overall length to accommodate the reduction
- Additional reinforcement may be required around the reduced opening
Functional Differences
Equal Tees:
- Provide uniform flow distribution
- Maintain consistent pressure across all openings
- Ideal for creating branch lines of the same size as the main line
- Suitable for reversible flow applications
- Commonly used in straight-run piping with equal-sized branches
Reducing Tees:
- Allow for flow reduction or diversion to smaller pipes
- Create controlled pressure differentials
- Enable connection of different pipe sizes without additional fittings
- Useful in systems requiring graduated flow distribution
- Often used to connect drains or vents in vertical pipe layouts
Each kind of t-shirt can do different things now that these things have changed. Equal tees are often used in fire safety systems where even flow is important. On the other hand, reducing tees may be chosen for industrial processes that need to precisely control flow to different-sized equipment.
It is important to know these changes in size and purpose so that you can pick the right parts and build systems that work.When engineers choose between equal and reducing steel tees, they need to think about things like flow standards, pressure levels, and available room to make sure that their pipe plans work as well as possible.
When to use a reducing tee instead of an equal tee in piping layouts?
In pipe plans, picking between a lowering tee and an equal tee relies on the system design, the flow needs, and the available room. Here are some scenarios where a reducing tee is preferable:
Size Transition in Branching Lines
Reducing tees are ideal when you need to transition from a larger main line to a smaller branch line. This is common in:
- Process piping where fluid needs to be distributed to smaller equipment
- HVAC systems for transitioning from main ducts to smaller supply lines
- networks that distribute water where the flow is split into smaller lines for homes
When this happens, using a reducing tee gets rid of the need for extra reducers. This makes the planning of the pipes easier and lowers the number of places where they could leak.
Flow Control and Pressure Management
Reducing tees can be strategically used for flow control and pressure management:
- Creating pressure differentials for specific process requirements
- Controlling flow rates to different parts of a system
- Keeping hydraulic systems in complicated industrial settings in balance
There is a change in flow patterns when the pipe size is reduced, which can be helpful in some situations.
Space Constraints
In situations where space is limited, reducing tees offers a compact solution:
- Tight mechanical rooms in buildings
- Crowded industrial plant layouts
- Offshore platforms with minimal footprint
These fittings help make the best use ofthe room in small spaces by mixing the functions of a tee and a reducer.
Cost-Effective Design
Using fewer tees can help you save money on pipe designs by:
- Making things with as few parts as possible to save time and money on work
- Cutting down on places where the system could fail is especially helpful for big projects, where even small savings can add up to a lot of money.
Specialized Applications
Certain industries and applications specifically call for reducing tees:
- Chemical processing plants for precise reactant mixing
- Oil and gas pipelines for flow sampling points
- Food and beverage production for controlled ingredient addition
In these cases, the unique properties of reducing tees enable specific functions that equal tees cannot provide.
Sometimes reducing tees can help, but you should carefully think about what your system needs before making a choice. Things like flow rates, pressure levels, and material fit must be thought about to make sure the steel tees chosen work well with the pipe plan. You can get useful information about the best tee setup for your application by talking to skilled engineers or providers.
Conclusion
It is important to know the difference between equal and reducing steel tees when building pipe systems that work well and efficiently. Equal tees offer even flow and a lot of options, while decreasing tees better control flow and make more space. You can pick the right one if you want to know how the flow works, how to control the pressure, and how much space you have.
How well the system works, how much it costs, and how useful it is in the long run can all be changed by the right tool. In order to work on tough pipe plans, this is important for builders, project managers, and engineers. If you know how to use them right, equal and reducing tees can help you build the best pipes for big factories, complicated HVAC systems, or important water networks.
