Which materials are suitable for seawater-exposed pipe fittings?
When choosing materials for pipe fittings exposed to seawater, it's crucial to consider their corrosion resistance, durability, and cost-effectiveness. Let's explore some of the most suitable options:
Stainless Steel Alloys
Due to their high resistance to rust, stainless steel is used a lot in naval settings. These are the most popular grades for use in salt water:
- 316 stainless steel has 2 to 3 percent molybdenum, which makes it more resistant to pitting and cavity rust.
- 317 Stainless Steel: It has more molybdenum (3–4%), which makes it even more resistant to rust.
- 904L stainless steel is an austenitic stainless steel that has been highly alloyed and has better rust protection in harsh conditions.
These metals help keep things from rusting in saltwater by creating a silent protective layer.
Duplex Stainless Steels
Duplex stainless steels have the best features of both austenitic and ferritic stainless steels. They offer:
- More durable than regular austenitic grades
- Very good protection against stress corrosion cracks
- Good protection against pitting and crevice corrosion
2205 and 2507 are two common pair types used in seawater applications.
Nickel Alloys
In saltwater settings, nickel-based metals are very resistant to rust. Here are a few popular options:
- With a lot of nickel and chromium, Inconel 625 is a very strong metal that doesn't rust or crack.
- This metal, Hastelloy C-276, is made of nickel, molybdenum, and chromium. It stops some rust very well.
Copper-Nickel Alloys
Different amounts of copper and nickel, like 90-10 and 70-30, don't rust or grow biofouling very well in salt water. A lot of maritime heat exchanges and pipe systems use these metals.
Non-Metallic Materials
- "Fiber-reinforced plastic," or FRP, is very light and doesn't mix with water.
- Polyvinyl chloride (PVC) and polyester vinyl fluoride (PVDF) are two thermoplastics that can be used in places where seawater is used at low pressure.

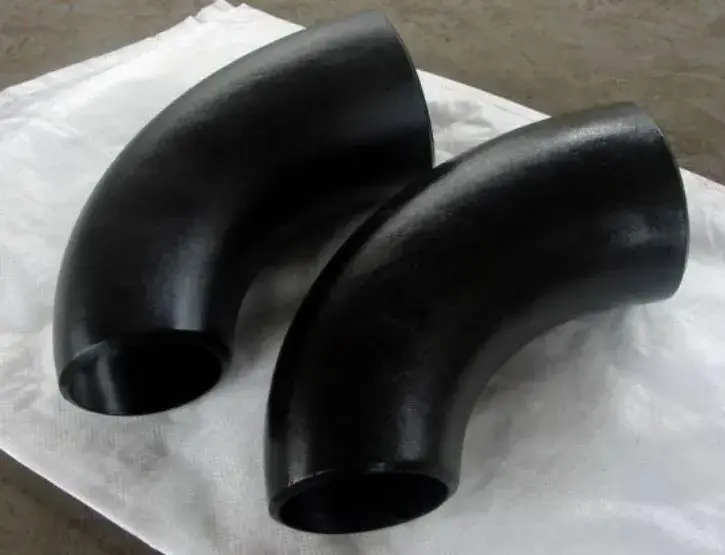

To choose the right materials for pipe parts, such as pipe elbows, that will be in saltwater, you should think about the temperature, working pressure, and how saltwater is made. Ask people who know a lot about things what they think to find the best one for your needs.
Marine-grade alloys and composite coatings for seawater pipe fittings
Along with using the right base materials, marine-grade metals and composite finishes can make ocean pipe fittings much more resistant to rust. These specialized solutions protect you better from the tough sea environment.
Marine-Grade Alloys
It's better for some metals not to rust because they were made just for military use:
- These are the types of super duplex stainless steels: Grades like 2507 and Zeron 100 don't rust in cracks and holes that get saltwater.
- Steels made from stainless steel that have 6% molybdenum in them: Irons like 254 SMO and AL-6XN do well in salty places because they don't rust.
- Steels like Monel 400 and K-500 are made from nickel and copper. They are strong and won't rust where water is present.
They cost more at first, but in the long run, they save you a lot of money because they last longer and don't need as much care.
Composite Coatings
Pipe parts that are used in salt water can be made even safer with composite coatings. You can pick from these:
- Acids and bases don't harm epoxy coats, and they stick well. In naval epoxy, there are often extra ingredients that make it less likely that the epoxy will rust.
- Because polyurethane coats are stiff and don't wear down quickly, they can be used in places where there is a lot of mechanical stress.
- Epoxy resins that are filled with ceramic are very good at fighting wear and weathering. This is especially helpful when the surface is rough or there is a lot of flow.
- Biofouling is less likely to happen because fluoropolymer coats don't stick and are very resistant to chemicals.
Application Techniques
The success of composite coats depends a lot on how they are applied:
- Surface Preparation: The base must be cleaned and profiled carefully for the layer to stick well.
- Ways to Use It: Depending on the shape and size of the part, methods like spray coating, dip coating, or powder coating may be used.
- Quality Control: Thorough tests and inspections make sure that the layer is the same thickness all over and there are no flaws.
Hybrid Solutions
Marine-grade metals and composite finishes can sometimes work together to protect ocean pipe fittings better than anything else. As an example:
A super duplex stainless steel fitting with an epoxy covering filled with ceramics to make it more resistant to wear and tear
Polyurethane foam was used to cover this copper-nickel metal part so that it doesn't get biofouled.
You can get the best of both worlds with these mix options. They use high-tech metals that don't rust and have extra safety coatings.
You should think about the weather, your needs, pipe elbows, and how much it will cost in the long run when buying marine-grade metals and composite finishes for saltwater line fittings. Find the best answer for your needs by talking to people who know a lot about rust and trying things out in the field.
How does galvanic corrosion affect pipe fittings in saline environments?
When pipe joints are used in salty settings, especially ocean, galvanic rusting is a big problem. This kind of rust happens when two different metals touch each other electrically in a liquid, like seawater. To make sure that naval pipe systems last a long time and work well, it is important to understand and stop galvanic rust.
The Mechanism of Galvanic Corrosion
Galvanic corrosion in saline environments occurs due to the following factors:
- Dissimilar Metals: When two different metals are in contact, one becomes the anode (more reactive) and the other the cathode (less reactive).
- Electrolyte: Seawater acts as an excellent electrolyte due to its high conductivity.
- Electrical Connection: Direct contact between the metals or through a conductive medium allows electron flow.
The more reactive metal (anode) corrodes at an accelerated rate, while the less reactive metal (cathode) is protected.
Effects on Pipe Fittings
Galvanic corrosion can have severe consequences for pipe fittings in saline environments:
- Accelerated Corrosion: The anodic metal can corrode much faster than it would on its own, leading to premature failure.
- Localized Damage: Corrosion often concentrates at the junction between dissimilar metals, weakening connections.
- Leaks and Failures: Severe galvanic corrosion can lead to leaks, structural weakness, and system failures.
- Reduced Efficiency: Corrosion products can accumulate, restricting flow and reducing system efficiency.
Mitigation Strategies
To minimize the impact of galvanic corrosion on pipe fittings in saline environments, consider the following strategies
Material Selection:
- Choose materials close together in the galvanic series when possible.
- Use corrosion-resistant alloys like duplex stainless steels or nickel alloys for critical components.
Insulation:
- Use non-conductive gaskets or washers to electrically isolate dissimilar metals.
- Apply dielectric coatings to create a barrier between the metals and the electrolyte.
Cathodic Protection:
- Install sacrificial anodes (e.g., zinc or aluminum) to protect the more noble metals.
- Implement impressed current cathodic protection systems for larger installations.
Design Considerations:
- Ensure proper drainage to prevent water accumulation at metal junctions.
- Design systems to allow easy inspection and maintenance of critical areas.
Regular Maintenance:
- So that water doesn't pool at the metal joints, make sure there is good drainage.
- Make ways for important things to be checked on and fixed that are simple.
Case Study: Galvanic Corrosion in a Seawater Cooling System
In a power plant's ocean cooling system, carbon steel pipe joints broke down very quickly. A look into the matter showed that stainless steel valves were put into the carbon steel pipes, making a galvanic couple. When seawater came in contact with the carbon steel parts, they deteriorated quickly.
The parts were changed from carbon steel to duplex stainless steel, which is the same metal that the valve is made of. They also put extra zinc anodes in important places and started a maintenance and testing program that would run every so often. These steps greatly extended the system's useful life and lowered the number of sudden breaks.
Solution: The parts, including pipe elbows, were changed from carbon steel to duplex stainless steel, which is the same metal that the valve is made of. They also put extra zinc anodes in important places and started a maintenance and testing program that would run every so often. These steps greatly extended the system's useful life and lowered the number of sudden breaks.
Conclusion
Pipe seals for salt water must be made of the right materials to work well and stay safe near the water. The ocean is rough, but there are lots of ways to handle it. Duplex stainless steels and other metals that don't rust are two examples. You can also use better composite processes. Galvanic rusting is one type of rust that can be stopped, but only if you know how it works.
The project's progress, how well it runs, and how much it costs in the long run can all depend on the pipe parts that are chosen, supplied, and used. You can keep it from rusting and make sure it works well by giving the material's features, the weather, and the job's needs careful thought.
We at HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD know how hard it is to work by the water. We have many high-quality pipe fittings, such as buttweld steel elbows, reducers, and flanges, that are made to work in difficult workplaces and at sea. We can offer safe, effective, and long-lasting solutions since we are ISO 9001:2015 approved and welcome new ideas.
FAQ
1. What is the best material for pipe fittings in seawater applications?
The best material depends on specific application requirements, but duplex stainless steels, such as grade 2205 or 2507, are often considered excellent choices for seawater pipe fittings. They offer a combination of high strength and superior corrosion resistance. For extreme conditions, super duplex grades or nickel alloys like Inconel 625 may be preferred.
2. How often should seawater pipe fittings be inspected for corrosion?
Inspection frequency depends on the material, operating conditions, and criticality of the system. Generally, a thorough inspection should be conducted at least annually, with more frequent visual checks (e.g., quarterly) for critical components. High-risk areas or those with a history of corrosion may require more frequent monitoring.
3. Can composite materials be used for seawater pipe fittings?
Yes, composite materials like fiber-reinforced plastics (FRP) can be excellent choices for seawater pipe fittings, especially in low-pressure applications. They offer superior corrosion resistance and lightweight properties. However, their use may be limited by factors such as pressure ratings, temperature limits, and regulatory requirements in certain industries.
