What are the common failure modes in pipe connectors？

A lot of different companies need industrial pipe parts, including industrial pipe connectors, to keep their water systems safe and running well. But these important parts, such as industrial pipe connectors, can break down in a number of ways that could make the system less safe or less helpful. Industrial pipe connectors often break in certain ways. It will save them money, keep workers safe, and make the system last as long as possible if engineers, project managers, and support workers know these tricks. Pipe joints can fail for a number of reasons, including normal wear and tear, mechanical stress, bad weather, and poor fitting or care. Businesses can make system problems much less likely and avoid the costs that come with them by finding out these failure modes early on and taking the right safety steps. Read this piece to learn more about why industrial pipe parts break and how to keep them from happening.

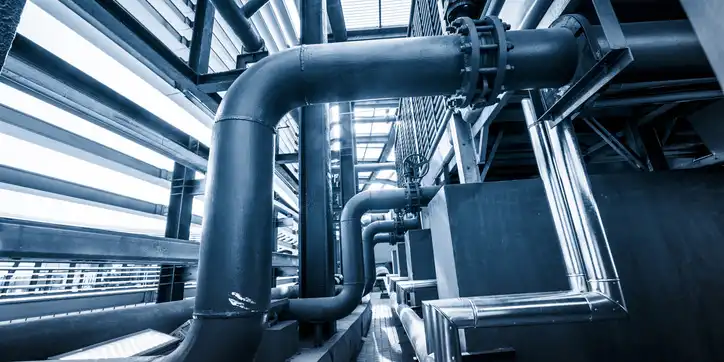

industrial PIPE CONNECTORS

Which failure modes most often affect industrial pipe connectors?

There are different ways that industrial pipe joints can break, and each one has its own set of causes and effects. The most common reasons for loss are:

Corrosion and erosion

Corrosion is a major concern for pipe connectors, particularly in harsh industrial environments. Chemical reactions between the connector material and the fluid being transported can lead to material breakdown over time. Similarly, erosion caused by abrasive particles in the fluid can gradually wear away the connector's internal surfaces.

Mechanical failures

If pipe joints are under a lot of mechanical stress, like when they are out of place, shake a lot, or get hot, they can break over time. This often takes place in places where the weather or pressure changes a lot.

Gasket and seal failures

Covers and seals are often needed for pipe links to stay together. Chemicals or bad fitting can cause these parts to break down over time. This can cause leaks and make the system work less well.

Material degradation

Materials used to link lines can wear down over time when exposed to chemicals, UV light, or high temperatures. The link may not be as strong because of this wear and tear.

For different types of industrial pipe fittings, you need the right industrial pipe connector parts. It's much less likely that industrial plumbing systems will break down if you check them often, set them up correctly, and use good industrial pipe connector joints.

Corrosion, erosion, and material degradation in industrial pipe connectors

Rust, exposure, and regular wear and tear are some of the worst things that industrial pipe joints have to deal with. Pipes will not work as well or last as long if you do these things, which could be dangerous and stop work.

Corrosion in pipe connectors

Corrosion is an electrochemical process that gradually destroys metal surfaces. In industrial pipe connectors, corrosion can take various forms:

Galvanic rusting happens when two different metals touch each other in an electrolyte.
Small holes are made in the metal surface by pitting rust, which is a localized attack.
Stress rust cracking happens when an acidic climate and tension stress work together to make cracks.
Crevice rusting happens in small areas where fluid can pool.

An engineer will often use safety caps or pick materials that don't rust, like stainless steel. You can also stop the electrical processes that cause rust with cathodic protection devices.

Erosion effects on connectors

It is usually the rough action of solid objects in the fluid flow that wears away pipe connections. This can cause material loss, especially in places with a lot of turbulent flow or where the flow direction changes quickly. When connections deal with slurries or fluids that have a lot of particles in them, erosion can be very bad.

Mitigation strategies for erosion include:

Choosing materials that are harder and don't wear down easily
Changing the way the flow works to lower noise
Using linings or coats that don't wear down easily
Often checking for damage and replacing parts that are broken

Material degradation over time

Material degradation in industrial pipe connectors can occur due to various environmental factors and operational conditions. Some common forms of degradation include:

Temperatures that are too high or too low tend to break things down.
When something is exposed to acidic or reactive chemicals for a long time, it breaks down chemically.
UV degradation: Materials made of polymers that are in the sun are changed.
Wear and tear from radiation: useful in nuclear and some industrial areas

Pick the right materials for the job and make plans for regular tests and repairs to stop material loss. To make pipe fittings last longer in harsh settings, more and more different types of materials and mix-and-match ones are being used.

When pipes fail in this way, they can be fixed with industrial pipe connectors to make them safer and better at what they do. It is important to keep industrial lines in good shape and make fixes when they need to be. Joints should be checked often and fixed when they fail.

Mechanical failure: fatigue, vibration, misalignment, and gasket blowout

Industrial lines have parts that can break down physically. Work might stop, and people might get hurt. These things can't break if we know why they do. This will also make pipes last longer.

Fatigue failure in pipe connectors

When a connection is stressed over and over again, even at values below its yield strength, it breaks. This is called fatigue failure. This can cause cracks to form and spread, which can finally cause the whole thing to break. Some things that can make you tired are:

Cyclic pressure fluctuations
Thermal cycling
Mechanical vibrations
Stress concentrations at design features

To mitigate fatigue failure, designers should consider:

Proper material selection based on fatigue strength
Stress-relieving features in connector design
Regular inspection for early detection of fatigue cracks
Implementing vibration-damping systems where applicable

Vibration-induced failures

Pipe fittings can fail in a number of ways when they are subjected to too much shaking. These include threaded connections coming loose, stressing wear, and increased fatigue. In business settings, vibrations can come from:

Rotating machinery (pumps, compressors)
Fluid flow-induced vibrations
External environmental factors (seismic activity, nearby construction)

Strategies to address vibration-related issues include:

Supporting and bracing pipe systems in the right way
Flexibility or expansion joints are used.
Putting sound separation and damping technology to use

Misalignment and its consequences

Misalignment in pipe connectors can result from improper installation, thermal expansion, or settling of supporting structures. Consequences of misalignment include:

Excessive stress on connectors and adjacent components
Accelerated wear of seals and gaskets
Increased likelihood of leaks
Reduced efficiency and flow capacity

To prevent misalignment issues:

Ensure proper installation procedures are followed
Use alignment tools and techniques during assembly.
When necessary, use bendable links or expansion joints.
As part of normal upkeep, check the line often.

Gasket blowout and seal failures

This happens when the part that seals a pipe link breaks totally. This usually happens because of too much pressure or heat. Leaks, lost goods, and even safety risks can happen when seals fail. These are some common reasons:

Improper gasket selection for the application
Over-compression or under-compression during installation
Chemical incompatibility with process fluids
Changing temperatures and letting seal materials age

To cut down on the chance of sealing and seal failures:

Select appropriate gasket materials based on operating conditions
Follow the instructions from the maker for fitting and torque.
Follow the right steps for tightening bolts.
Do routine checks and repair seals before they leak.

Good design, installation, and maintenance can help businesses make their industrial pipe connectors much more effective and safe by preventing these common ways that machines break down. It is also important to make sure that workers are regularly taught the best ways to handle and take care of joints in industrial pipes. This will keep the system running at its best and help keep it from breaking down.

Conclusion

Industrial pipe valves often break in the following ways. A lot of companies depend on their water systems to be safe, work well, and be there when they need them. A business can plan to stop or lessen rust, erosion, material wear, and machine problems when it knows these things are likely to happen. The right way to install and take care of pipe systems and parts will make them last longer and work better. Check your tools often and make sure you're using the right ones.

You need pipes that don't break for your business to run smoothly. It is better for businesses to stay up to date on new technologies and materials, buy good links, and make detailed plans for repairs. This will help them avoid downtime, save money, and keep their operations safe and simple to run.

FAQ

1. How often should industrial pipe connectors be inspected for potential failures?

How often industrial pipe connections are inspected varies on a number of things, such as the working conditions, the fluids being moved, and how important the system is. Visual checks should be done at least every three months, and more thorough exams should be done once a year. But places with a lot of stress or corrosion may need to be inspected more often. To find the best check plan for your system, you should always talk to a trained expert or follow rules specific to your business.

2. What are the signs of impending failure in pipe connectors?

Early failure of pipe connections can be seen in rust or erosion, leaks (even small ones), strange sounds or movements, changes in flow rates or pressure, and connections that are warped or not lined up straight. Trouble is also coming if the color changes around the joints, the bolts aren't tight, or the material around the seals is worn down. You should keep an eye on things and know what normal working conditions are if you want to see these signs early.

3. How can I extend the lifespan of industrial pipe connectors in harsh environments?

To extend the lifespan of pipe connectors in challenging conditions, consider implementing the following strategies: use corrosion-resistant materials or protective coatings, ensure proper installation and alignment, implement regular maintenance and cleaning routines, monitor and control fluid chemistry when possible, use cathodic protection in corrosive environments, and consider upgrading to more durable connector designs. Additionally, maintaining proper operating conditions and avoiding excessive stress on the system can significantly contribute to longer connector life.

Ensuring Reliable Connections: Choose Quality Industrial Pipe Connectors | RAYOUNG

When it comes to industrial pipe systems, the strength of your network is only as good as its weakest link. Don't let subpar connectors compromise your operations. HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. is an expert at making high-quality industrial pipe fittings that can work in the toughest situations for a long time. Our wide range of goods, such as butt-weld steel elbows, reducers, and flanges, is made to the highest standards and meets or go beyond approvals from organizations like GOST-R and SGS.

RAYOUNG has the skills and products to meet your needs, whether you're in charge of big EPC projects, selling to local markets, or keeping important manufacturing buildings in good shape. Our ISO 9001:2015-certified production methods make sure that every industrial pipe connector we make is consistent and reliable. Our joints and valves are designed to provide the best flow, safety, and reliability for everything from water transport networks to high-pressure gas lines.

Don't let connector failures disrupt your operations or compromise safety. Choose RAYOUNG for peace of mind and superior performance. Contact our team of experts today at info@hb-steel.com to discuss your specific requirements and discover how our industrial pipe connectors can enhance the reliability and efficiency of your piping systems. Trust in RAYOUNG – your partner for secure, long-lasting connections in any industrial application.
