What Are Flanges and Fittings? Types, Uses & Importance

Modern industrial pipe systems are held together by flanges and fittings, which are essential parts that allow for safe connections, changes in direction, and system integration in a huge range of situations. In industrial facilities, commercial buildings, and residential buildings, these basic parts make it easier to put together complicated piping networks that move fluids, gases, and other materials safely and efficiently. One of the most reliable ways to connect things is with steel pipe flanges, which have joints that can be taken off for repair while still keeping the system's integrity under tough operating conditions. It is very important for engineers, project managers, and maintenance workers who design, install, and run piping systems that need to work consistently for long periods of time to understand the basic principles, different types, and useful applications of flanges and fittings.

Understanding Flanges and Fittings: Definitions and Core Functions

Basic Definitions and Primary Applications

Flanges are circular connecting components that join pipes, valves, pumps, and other equipment through bolted connections, creating leak-proof seals that can withstand various pressure and temperature conditions. These components consist of a flat or raised circular plate with strategically positioned bolt holes that align with matching holes on adjoining flanges, allowing for secure mechanical fastening using bolts and nuts. Steel pipe flanges excel in applications where permanent welded joints would be impractical due to maintenance requirements, equipment access needs, or the necessity for periodic system modifications. Standardized sizes and bolt patterns make sure that products from different makers can work together and make it easy to replace parts or add to the system. On the other hand, fittings are specialized parts that change the way of a pipe, make it smaller or bigger, or connect different pipes together. Elbows, tees, reducers, caps, and couplings are some of these elements. Each one is made to meet a specific physical or functional need while keeping the flow going and the structure strong.

Material Selection and Performance Characteristics

The right material for flanges and fittings is chosen based on a number of factors, such as the environment, working conditions, fluid compatibility, and cost. Carbon steel steel pipe flanges have great strength-to-weight ratios, are easier to machine, and are cost-effective options for a wide range of industrial uses. Carbon steel can be used with most pipe systems and construction methods because it is thermally conductive, doesn't expand or contract, and can be welded. Unique alloy compositions improve performance in harsh settings, high-temperature uses, or systems that deal with harsh chemicals. Some surface treatments, like galvanizing, epoxy coating, or special platings, make things last longer and make them less likely to rust without changing the mechanical qualities that are needed for safe operation. The manufacturing processes employed in producing quality flanges and fittings include forging, casting, and machining operations that ensure dimensional accuracy, surface finish quality, and metallurgical properties that meet or exceed industry standards.

Installation Methods and Connection Principles

Proper installation of flanges and fittings requires adherence to established procedures that ensure optimal performance and longevity. Steel pipe flanges utilize gasket sealing technology to create leak-proof joints, with gasket selection depending on operating temperature, pressure, and chemical compatibility requirements. The bolting patterns and torque specifications are carefully engineered to distribute loads evenly around the flange circumference, preventing distortion that could compromise sealing effectiveness. Installation procedures typically involve surface preparation, gasket positioning, bolt insertion, and systematic tightening sequences that achieve uniform compression while avoiding gasket damage or flange warping. During installation, quality control methods include checking the dimensions, inspecting the surface, and applying pressure to joints to make sure they are solid before the system is turned on. Because flanged connections are removable, they are very helpful for upkeep tasks because they let you change parts or make changes to the system without having to do a lot of welding or cutting, which would be needed for permanent joints.

Types and Classifications of Flanges and Fittings

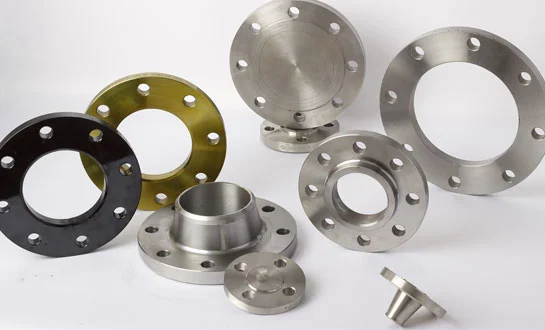

Standard Flange Configurations and Design Features

Industrial applications utilize various flange types, each engineered for specific operational requirements and installation constraints. Weld neck flanges feature integral hubs that provide exceptional strength and stress distribution, making them ideal for high-pressure systems where reliability is paramount. The tapered transition from pipe to flange minimizes stress concentrations while the butt-welded connection ensures metallurgical continuity and optimal fatigue resistance. Slip-on flanges offer installation flexibility and economic advantages for moderate pressure applications, with their larger bore diameter accommodating pipe insertion before welding operations create permanent connections. Steel pipe flanges in socket weld configurations excel in small-bore applications where welding access is limited, providing positive pipe positioning and controlled gap dimensions that ensure consistent weld quality. Blind flanges serve as closure elements for testing, maintenance access, or future expansion provisions, incorporating solid construction that withstands full system pressure while providing complete isolation capabilities. Threaded flanges enable mechanical connections without welding requirements, making them suitable for applications where hot work restrictions apply or where frequent disassembly is anticipated.

Fitting Categories and Geometric Functions

Pipe fittings encompass a broad range of components designed to address directional changes, size transitions, and branching requirements within piping systems. Elbow fittings redirect pipe runs through various angles, with 90-degree and 45-degree configurations being most common, though custom angles are available for specific geometric requirements. The internal flow profiles of quality elbows minimize pressure losses while eliminating turbulence that could cause erosion or noise problems in high-velocity applications. Tee fittings provide three-way connections that enable branch takeoffs from main pipe runs, with equal and reducing configurations available to accommodate different pipe sizes at each connection point. Steel pipe flanges often connect to tee fittings in systems where equipment access or future modifications require removable connections at branch points. Reducer fittings facilitate transitions between different pipe diameters, with concentric and eccentric designs addressing specific installation and flow requirements. Concentric reducers maintain centerline alignment while eccentric reducers prevent air pocket formation in horizontal runs or accommodate elevation changes in gravity-fed systems.

Specialized Applications and Custom Solutions

Advanced industrial applications often require specialized flanges and fittings that address unique operational challenges or accommodate non-standard equipment interfaces. Orifice flanges have precision machined sides and pressure tapping holes that make it easier to measure flow accurately while still allowing standard connections. These special steel pipe flanges have gasket placement features and bolt patterns made just for installing orifice plates. They make sure that the plates are properly aligned and sealed, which has a direct effect on the accuracy of the measurements. Reducing flanges combine the functions of connection and transition into a single part. This gets rid of the need for different reducer fittings and keeps installation profiles small. Expansion joint flanges meet the needs for thermal expansion and vibration isolation by having flexible parts that stop stress from spreading to equipment or pipe systems that are attached. Custom flange designs take into account special materials, bolt patterns that aren't common, or non-standard sizes that are needed for certain equipment connections. Specialized machining, fabrication of exotic materials, and custom heat treatment processes are all part of the manufacturing process. These make sure that the products can work with tough operational needs while still keeping their structural integrity and sealing performance over long periods of time.

Importance and Benefits in Industrial Applications

System Reliability and Maintenance Advantages

The strategic implementation of flanges and fittings provides significant operational benefits that extend beyond basic connection functionality. Due to their ability to selectively isolate and remove equipment, steel pipe flanges allow regular maintenance tasks to be carried out without shutting down the system. In addition to lowering maintenance costs and downtime, this feature makes it easier to do preventative maintenance that extends the life of machinery and improves system performance. The bolted connections make it easy to get to the inside of the system to examine, clean, or replace parts, without having to cut and reweld an enormous number of times as is needed with permanent joints. Better sealing with flanged connections than threaded joints, especially in situations where pressure changes, temperature cycles, or vibrations could damage threaded connections over time. The standardized dimensions and connection methods facilitate inventory management and ensure replacement part availability from multiple suppliers, reducing procurement costs and delivery times for maintenance materials.

Safety and Compliance Considerations

Modern industrial facilities operate under stringent safety regulations that mandate specific connection methods and materials for different applications. When steel pipe flanges are made to known standards, their performance is recorded, which makes it easier to follow regulations and do safety analyses. Because flanged connections have known failure modes and predictable performance characteristics, they make it possible to accurately measure risk and use the right safety factor in system design. Flanged connections make emergency response methods easier to follow because they make it easy to quickly disconnect parts of a system or take out equipment in an emergency. Condition tracking programs can find possible problems before they cause failures or safety incidents because bolted joints can be inspected visually. Keeping accurate records of flange specifications, installation steps, and maintenance tasks provides audit trails that show regulatory compliance and help with efforts to make things better all the time. The ability to perform non-destructive testing on flanged joints provides ongoing assurance of system integrity without the accessibility limitations associated with welded connections.

Economic Impact and Lifecycle Value

Quality flanges and fittings save money throughout the whole lifetime of a system, from the time it is first installed to the time it is taken apart. Steel pipe flanges offer a better return on investment because they last longer, need less upkeep, and can be used in a variety of ways to meet changing production needs. The higher cost of flanged connections at first is usually covered by shorter installation times, lower upkeep costs, and better system availability when compared to other connection methods. When facilities are growing or changing how they work, being able to move or rearrange pipe systems using existing flanged connections is very useful. Standardized parts allow for competitive buying practices that lower the cost of materials while maintaining the same level of quality and performance. Because they are easier to maintain and allow for more operating flexibility, systems with quality flanged connections often have a higher resale value than systems that are welded. Long-term economic analysis always shows that systems using the right flanges and fittings have a lower total cost of ownership than other options. This is especially true when operating flexibility and maintenance needs are properly taken into account.

Conclusion

Pipe systems in all kinds of industries can't work without flanges and fittings, which are essential parts that make repairs easy. While steel pipe flanges have been proven to be reliable for critical connections, the wide range of types and configurations makes sure that there is a perfect answer for every need. HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD.'s comprehensive product range, supported by ISO 9001:2015 certification and international compliance standards, delivers the quality and performance that modern industrial applications demand for long-term operational success.

FAQ

1. What is the primary difference between flanges and fittings in piping systems?

Flanges are connection components that join pipes, valves, and equipment through bolted connections, while fittings are elements that change pipe direction, size, or provide branches. Steel pipe flanges create removable joints for maintenance access, whereas fittings typically form permanent connections that address geometric requirements in piping layouts.

2. How do material choices affect the performance of flanges and fittings?

Materials have direct effects on how well they fight corrosion, how well they work at high temperatures, how strong they are, and how well they work with chemicals. Specialized alloys give better performance in harsh settings, while carbon steel flanges work well for most applications. The right choice of materials guarantees long-term dependability and compliance with regulations.

3. What factors determine the appropriate flange type for specific applications?

Operating pressure and temperature, pipe size and material, ease of installation, upkeep needs, and cost are some of the most important things to think about when making a choice. System specs and industry standards tell you how to match the features of a flange with the needs of the operation to make sure safe and reliable performance.

4. Why are standardized dimensions important for flanges and fittings?

Standardized dimensions make sure that parts from different makers can work together, make it easier to find replacement parts, and let you change the system without having to make a new one. Standard steel pipe flanges lower costs, make parts more available, and allow for easy interchangeability, which makes maintenance and system growth easier.

HEBEI RAYOUNG PIPELINE: Leading Manufacturers of Premium Steel Pipe Flanges and Fittings

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we transform industrial infrastructure through innovative flanges and fittings that exceed performance expectations. For reliable connections in all kinds of industry settings, we can buttweld elbows, reducers, and steel pipe flanges as part of our full range of manufacturing services. We provide solutions that last in the toughest conditions because we are certified by GOST-R and SGS to meet international quality standards. For creative solutions that fit your specific needs, our engineering team uses both decades of experience and the newest technology. See for yourself why RAYOUNG stands out in the global market: dependability and creativity. Contact our technical specialists at info@hb-steel.com to discuss how our premium flanges and fittings can enhance your next project.

References

1. American Society of Mechanical Engineers. ASME B16.5 Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24 Metric/Inch Standard. New York: ASME Press, 2021.

2. International Organization for Standardization. ISO 7005-1 Metallic flanges - Steel flanges. Geneva: ISO Publications, 2020.

3. American Petroleum Institute. API 6A Specification for Wellhead and Christmas Tree Equipment. Washington: API Publishing Services, 2019.

4. British Standards Institution. BS EN 1092-1 Flanges and their joints - Circular flanges for pipes, valves, fittings and accessories, PN designated. London: BSI Standards, 2018.

5. American Water Works Association. AWWA C207 Steel Pipe Flanges for Waterworks Service - Sizes 4 In. Through 144 In. Denver: AWWA Publications, 2020.

6. Manufacturers Standardization Society. MSS SP-44 Steel Pipeline Flanges. Vienna: MSS Standards Practice, 2021.
