What Are Butt Weld Fittings and Why Are They Industry Standard？

Butt weld fittings speak to a crucial component in cutting edge channeling frameworks, serving as the spine of mechanical foundation over endless applications. These specialized pipe associations have earned their position as the industry standard through decades of demonstrated execution, uncommon solidness, and unmatched unwavering quality. Not at all like conventional strung or flanged associations, butt weld fittings make consistent joints that keep up the auxiliary keenness of channeling frameworks whereas guaranteeing ideal stream characteristics. Their far reaching appropriation over businesses extending from petrochemicals to water treatment offices illustrates their flexibility and viability in requesting operational situations.

Understanding Butt Weld Fittings Construction and Design

Material Composition and Manufacturing Standards

Butt weld fittings are made from high-quality materials that meet strict industry standards. This means they will work well for a long time in harsh circumstances. Precision forming of carbon steel, stainless steel, or alloy materials is used in the production process to make parts with accurate wall thickness and dimensions. To make sure they meet foreign standards like ASME B16.9 and ASTM specifications, these fittings go through strict quality control steps like analyzing their chemical makeup, trying their mechanical properties, and checking their dimensions. When choosing a material, things like temperature resistance, rust resistance, and pressure rates are taken into account to make sure it works best in a given situation.

Welding Process and Joint Integrity

To get perfect alignment and entry during the welding process for butt weld fittings, the surface must be carefully prepared. This includes cleaning and beveling the pipe ends. Expert welders use high-tech methods like TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding to make full-penetration welds that remove any possible weak spots in the joint. The welding process has to follow set rules, such as preheating when needed, keeping the right temperatures between passes, and, for some materials, doing a heat treatment after the welding is done. This all-around method makes sure that the joins made by butt weld fittings are as strong as or stronger than the base pipe material. This keeps the structural integrity of the whole piping system intact.

Quality Assurance and Testing Protocols

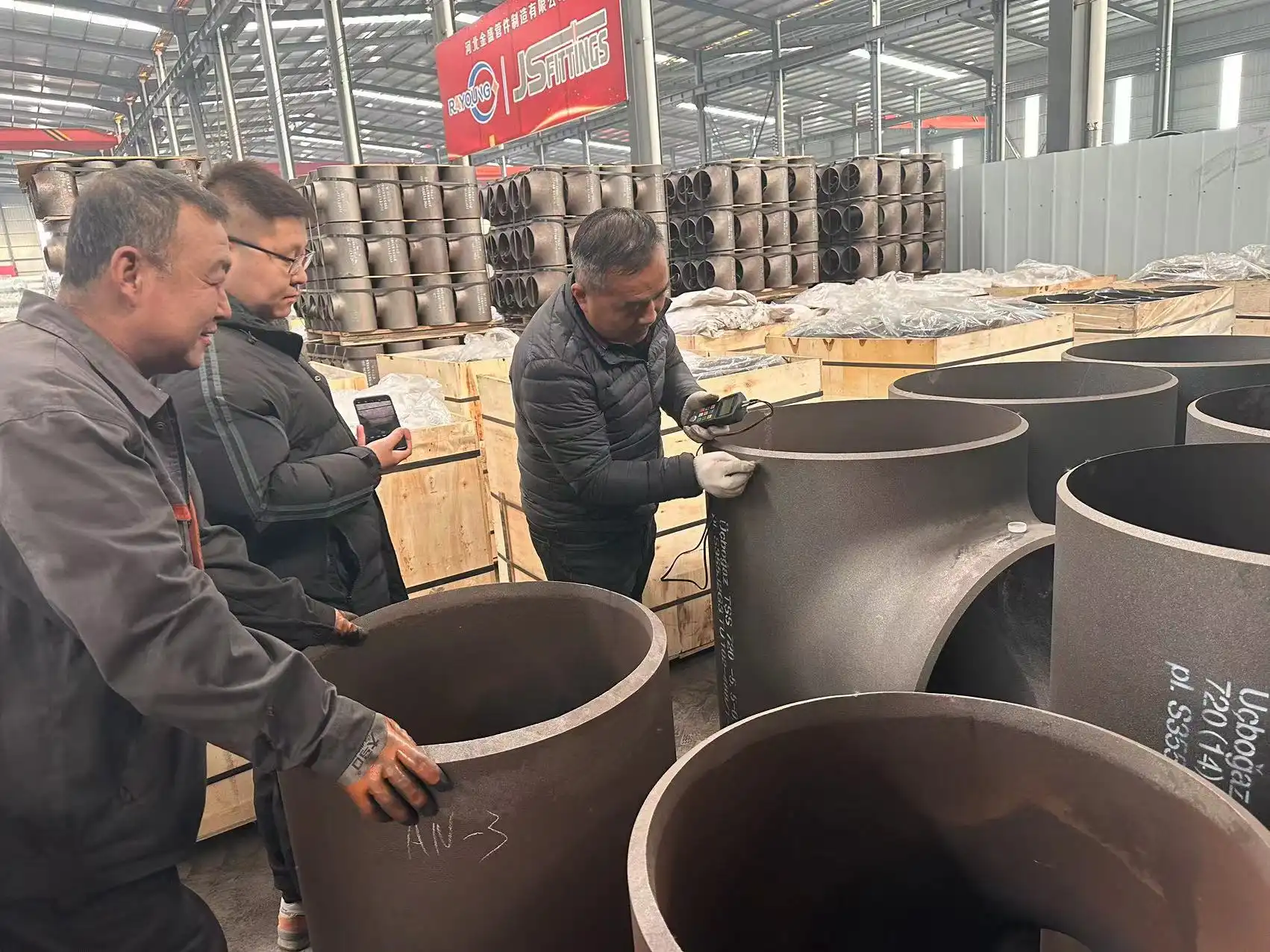

Some of the many testing methods used for high quality control of butt weld fittings are dye penetrant testing, ultrasound checking, radiography testing, and other non-destructive examination methods. By using these checking methods, you can be sure that the end product meets the standards for acceptance and that the quality of the weld is checked. Regular hydrostatic pressure tests show that the joint can handle working forces with enough safety gaps. Certifications for materials, specific directions for welding methods, and inspection records are some of the things that are needed for documentation. These make the whole process of making and installing the product tracable and accountable.

Industrial Applications and Performance Benefits

Petrochemical and Oil Refining Industries

Butt weld fittings are very important in petroleum processing plants because they have to deal with harsh chemicals, high temperatures, and high pressures. For these uses, parts need to be able to handle changes in temperature, chemical corrosion, and mechanical stress without letting the system's stability slip. Butt weld joints are smooth, so there are no cracks where corrosive substances could gather. This makes the service life much longer and lowers the need for upkeep. In refineries, butt weld fittings are used in process pipe systems for important tasks like processing crude oil, hydrocracking units, and catalytic reforming processes where failure is not an option.

Power Generation and Nuclear Applications

Butt weld fittings are essential for steam systems, cooling water circuits, and auxiliary pipe networks in power producing facilities, including nuclear power plants. The nuclear business needs fittings that meet the highest quality standards, such as being able to fully track the materials used, having a lot of paperwork, and being tested in a certain way. Butt weld joints used in these situations need to be very reliable over long periods of time, often more than 40 years of constant use. When joints are properly soldered, the smooth inside shape reduces pressure drop and erosion, which makes the whole system more efficient and reliable.

Water Treatment and Municipal Infrastructure

Municipal water treatment plants use butt weld fittings in trash control, cleaning processes, and transportation systems. Fittings that are both long-lasting and good for water quality are needed for these setups. The longevity of the system and lower lifecycle costs are both ensured by the corrosion resistance of properly chosen and placed butt weld fittings. Welded seams smooth out flow, which is good for water treatment because it means less turbulence and less energy use in pumping systems.

Why Butt Weld Fittings Are Industry Standard?

Cost-Effectiveness and Lifecycle Value

Butt weld fittings demonstrate superior cost-effectiveness through reduced maintenance requirements, extended service life, and improved system reliability. While initial installation costs may be higher than threaded connections, the long-term benefits include elimination of periodic joint maintenance, reduced risk of leakage, and minimized unplanned downtime. The permanent nature of welded joints eliminates concerns about loosening under vibration or thermal cycling, common issues with mechanical connections. Lifecycle cost analysis consistently favors butt weld fittings in applications where system reliability and longevity are priorities.

Regulatory Compliance and Safety Standards

Industry rules and safety codes are starting to favor butt weld fittings for important jobs because they have a history of being reliable and safe. Regulatory bodies know that welded links are better than mechanical parts at keeping dangerous materials inside. For uses with dangerous, flammable, or high-pressure fluids, safety standards in fields like petrochemicals, medicines, and food preparation say that butt weld fittings must be used. Threaded links get rid of possible leak paths, which greatly lowers risks to the environment and people's safety.

Design Flexibility and System Optimization

Engineers can make very complicated pipe arrangements with butt weld joints that keep the structure strong and the flow going smoothly. Because elbows, tees, reducers, and caps are all different types of fittings, they can be used to make a complete system without affecting its performance. For specific uses, modern manufacturing methods make it possible to make unique parts that fit and work perfectly. The small size of butt weld fittings makes them easier to install and takes up less room, which is especially helpful in industrial facilities that are already very crowded.

Conclusion

Because they work well, are reliable, and can be used in a lot of different situations, butt weld fittings for sale joints have become the official standard in their field. You can't have modern industrial equipment without them because they can make permanent, leak-free links while keeping the structure's integrity. With its high strength, resistance to rust, and adaptable form, it will continue to be useful in a wide range of manufacturing settings. Butt weld fittings will continue to be the best option for important piping systems all over the world as long as top pipes and fittings makers keep coming up with new designs.

FAQ

1. What makes butt weld fittings superior to threaded connections?

Butt weld fittings make lasting, full-strength joints that won't come apart when the temperature or pressure changes. Welded joints, on the other hand, have smooth interior shapes that reduce pressure drop and turbulence while being more resistant to rust and leaks.

2. How do I select the right material for butt weld fittings?

The working factors, such as temperature, pressure, and fluid properties, affect the choice of material. Carbon steel is good for most uses, while stainless steel is better at resisting rust. For high temperatures or specific chemical service needs, alloy materials may be needed.

3. What quality standards apply to butt weld fittings?

Industry standards include ASME B16.9 for dimensions, ASTM specifications for materials, and various codes such as ASME B31.3 for process piping. Nuclear applications require additional standards such as ASME III, while specific industries may have specialized requirements.

4. Can butt weld fittings be modified or repaired in service?

While butt weld fittings provide permanent connections, they can be modified through proper cutting and re-welding procedures following established codes and standards. However, such modifications require careful engineering evaluation and may necessitate system shutdown and comprehensive testing.

HEBEI RAYOUNG PIPELINE: Your Trusted Butt Weld Fittings Manufacturers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we specialize in manufacturing premium butt weld fittings that meet the most demanding industrial requirements. Our comprehensive product range includes elbows, tees, reducers, and flanges engineered to deliver exceptional performance and reliability. With ISO 9001:2015 certification and GOST-R compliance, we ensure consistent quality that exceeds industry standards. Our experienced team understands the critical importance of precise manufacturing and rigorous quality control in producing butt weld fittings that stand the test of time. From residential applications to complex industrial installations, we provide solutions that ensure secure connections and optimal system performance. Contact us at info@hb-steel.com to discover how our expertise can enhance your next project.
