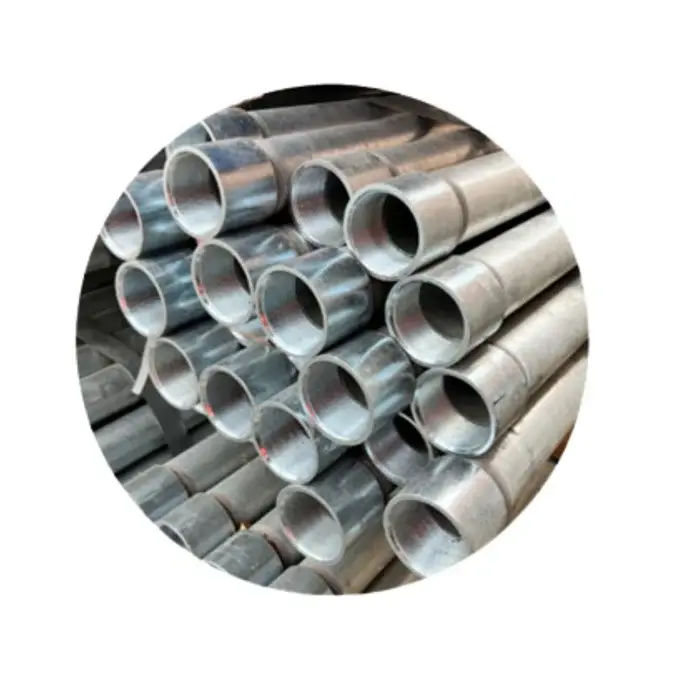

Threaded and Coupled Pipes: Key Applications in Oilfield Projects

In the tough setting of oilfield operations, picking the right piping systems has a direct effect on the successful completion of the project, the safety of all personnel, and the long-term success of the operations. Though threaded and coupled pipes are a basic part of oil extraction and transportation systems, they offer reliable mechanical links that can handle high pressures, corrosive environments, and changes in temperature. Precision-machined threads on the ends of these special pipe systems fit into coupling devices and make safe joints without the need for welding. When drilling, installing wellheads, connecting production tubing, and connecting surface facilities, the oilfield business uses threaded and coupled pipes a lot. They're designed to be easily put together and taken apart, which makes them especially useful for exploration tasks where moving and deploying tools quickly is important.

Essential Characteristics of Threaded and Coupled Pipe Systems

Thread Design Standards and Performance Requirements

Following strict industry standards for thread geometry, dimensional limits, and material specifications is the first step to making threaded and coupled pipes that work perfectly. API standards, especially API 5CT for casing and tubing, set clear requirements for thread profiles that make sure goods from different manufacturers can work together. API round threads and buttress threads are two common types of threads. Each has its own benefits that depend on the operational factors. In situations with mild pressure, round threads work reliably, while buttress threads are better at withstanding tension and compression forces in deep wells. When compared to straight pipe-to-pipe threading, the coupling component spreads connection stresses over a larger surface area. This makes the joint much stronger and lowers the chance of connection failure under cyclical loading conditions.

Mechanical Properties and Corrosion Protection

Threaded and linked pipes need to have great mechanical performance to be able to handle tough working conditions where internal pressures can reach over 10,000 psi. The design of the coupling makes mechanical interlocks that transfer axial loads through thread engagement. This lets the joint efficiency rates usually range from 60% to 80% of the tensile strength of the pipe body. For oilfield uses, keeping these lines from rusting is very important because hydrogen sulfide, carbon dioxide, and saltwater can create harsh chemical environments. When thread compounds are used during assembly, they help with the right amount of make-up pressure and keep corrosive fluids out. Coating systems on the outside, like fusion-bonded epoxy, protect the pipe body from rust on the soil side, and coatings on the inside deal with production fluids that have a lot of corrosive species in them.

Quality Assurance and Selection Criteria

Material grade selection for threaded and coupled pipes requires a comprehensive analysis of downhole conditions, including formation fluid chemistry, temperature profiles, and pressure regimes. Carbon steel grades range from lower-strength J55 suitable for shallow applications to higher-strength grades including N80, L80, and P110 for deeper, more demanding environments. Specialized corrosion-resistant alloys address severe environments where carbon steel proves inadequate. Thread inspection using optical comparators and gauges verifies dimensional conformance, while non-destructive examination techniques detect material defects that could compromise pipe performance under operational loads.

Strategic Applications Across Oilfield Operations

Drilling and Wellbore Construction

During drilling phases, threaded and coupled pipes fulfill multiple critical functions from surface casing installation to production tubing deployment. Surface casing strings utilize robust threaded connections capable of supporting substantial axial loads during cementing while preventing collapse under external hydrostatic pressures. The rapid assembly capability proves advantageous in drilling operations where minimizing rig time directly translates to cost savings. Production tubing installed as the final conduit for hydrocarbon flow must resist internal pressure from formation fluids while maintaining structural integrity under suspended equipment weight, including pumps and safety devices.

Production Facilities and Workover Operations

Beyond downhole applications, threaded and coupled pipes serve essential functions throughout surface production facilities, where their ease of installation and modification flexibility support efficient facility design. Flowline systems connecting wellheads to separation equipment commonly employ these pipes with connection integrity verified through pressure testing protocols. The inherent advantages become particularly evident during workover operations where wells require remedial treatment or equipment replacement. Workover strings assembled from threaded and coupled pipes enable rapid deployment and retrieval of downhole equipment without the permanence associated with welded tubular strings. The ability to make and break connections multiple times without degrading joint integrity proves essential in operations requiring sequential installation and removal of different tool configurations.

Connection Design and Performance Enhancement

Premium connections incorporate features including metal-to-metal seals providing gas-tight integrity independent of thread compound, torque shoulders controlling make-up, and specialized thread forms optimized for specific loading conditions. Threaded and coupled pipes with premium connections achieve joint efficiencies approaching 100% of pipe body strength while delivering superior seal performance under combined loading conditions, including internal pressure, external pressure, bending, tension, and compression applied simultaneously.

Installation and Maintenance Best Practices for Threaded and Coupled Pipes

Proper installation and ongoing maintenance are key to ensuring the performance and longevity of threaded and coupled pipe systems. Field crews must follow manufacturer-specified torque values during assembly to achieve optimal thread engagement without overstressing components. Thread compound is used both for lubrication, preventing galling, and for adding sealing barriers to guard against corrosive fluid ingress. Power tongs, calibrated for precise torque delivery, ensure consistent connection quality, minimizing variability from manual methods.

Thread protectors should remain in place until just before assembly to prevent damage and contamination of sealing surfaces. Visual inspections before assembly identify any damage, corrosion, or debris that must be addressed. Thorough cleaning protocols remove drilling mud, scale, and other contaminants from the threads and coupling interiors, ensuring proper metal-to-metal contact for a secure seal.

For long-term care, maintenance programs for reusable threaded and coupled pipes include regular inspections to assess thread wear, corrosion, and dimensional changes that could affect connection integrity. Reconditioning processes restore threads meeting wear criteria, extending the pipe’s service life while maintaining performance standards. Keeping a detailed service history helps track the pipe’s exposure to operational stresses, informing decisions about whether to continue using or retire pipes.

Proper storage practices, such as protecting pipes from environmental degradation between deployments, preserve thread quality and prevent corrosion. This helps maximize asset utilization and ensures the system operates efficiently during each field campaign.

Conclusion

Threaded and coupled pipes remain indispensable assets in oilfield infrastructure, delivering proven reliability across drilling, production, and intervention operations through their unique combination of mechanical strength, assembly efficiency, and operational flexibility. HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. stands ready to support your oilfield projects with premium threaded and coupled pipe solutions backed by ISO 9001:2015 certification, comprehensive technical support, and proven manufacturing excellence serving global petroleum operations.

FAQ

1. What are the primary advantages of threaded and coupled pipes in oilfield applications?

Threaded and coupled pipes offer significant operational advantages, including rapid assembly without hot work requirements, reusability across multiple installations, field modification flexibility, and elimination of weld inspection costs. These systems enable faster rig operations, reduce installation expenses, and provide reliable performance in applications requiring periodic disassembly for maintenance throughout operational lifecycles.

2. How do environmental conditions affect material selection for these pipe systems?

Environmental factors, including hydrogen sulfide and carbon dioxide concentrations, temperature extremes, and chloride exposure, directly influence material grade selection. Corrosive environments may require upgraded materials from standard carbon steel to corrosion-resistant alloys, while mechanical loading conditions determine minimum strength requirements, ensuring appropriate material specification for reliable long-term performance.

3. What inspection procedures ensure threaded connection integrity?

Critical inspection protocols include dimensional verification of thread geometry using precision gauges, non-destructive examination for material defects, visual inspection of sealing surfaces, and validation of coupling compatibility. Thread protector condition assessment and proper storage verification prevent damage during handling, supporting quality assurance throughout the supply chain.

4. Can threaded and coupled pipes be reused after initial deployment?

Threaded and coupled pipes designed for reusable service can be successfully redeployed following thorough inspection, reconditioning if necessary, and verification that accumulated service exposure has not exceeded allowable limits. Thread condition assessment and dimensional verification ensure connection integrity remains adequate for subsequent applications while maintaining safety standards.

HEBEI RAYOUNG PIPELINE: Your Trusted Threaded and Coupled Pipes Manufacturers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we recognize that successful oilfield operations depend on superior piping solutions delivering uncompromising performance under challenging conditions. As leading pipes and fittings manufacturers specializing in threaded and coupled pipes, we combine advanced manufacturing capabilities with rigorous quality control to supply products exceeding industry expectations. Our comprehensive product range encompasses API-certified casing, tubing, and specialty connections engineered for diverse petroleum applications. Backed by ISO 9001:2015 certification, GOST-R compliance, and SGS validation, our threaded and coupled pipes meet international standards while incorporating innovations that enhance reliability and reduce total ownership costs. Contact our team today at info@hb-steel.com to discuss how our premium threaded and coupled pipes can optimize your oilfield infrastructure investments.

References

1. American Petroleum Institute. (2023). Specification for Casing and Tubing (API Specification 5CT). Ninth Edition. Washington, DC: API Publishing Services.

2. Bradley, H.B., Gipson, F.W., & Petroleum Extension Service. (2021). Petroleum Engineering Handbook: Production Operations Engineering. Society of Petroleum Engineers, Richardson, Texas.

3. Economides, M.J., Watters, L.T., & Dunn-Norman, S. (2022). Petroleum Well Construction. John Wiley & Sons, Chichester, United Kingdom.

4. National Association of Corrosion Engineers. (2024). Petroleum and Natural Gas Industries: Materials for Use in H2S-Containing Environments (NACE MR0175/ISO 15156). Houston, Texas: NACE International.

5. Rabia, H. (2020). Oilwell Drilling Engineering: Principles and Practice. Graham & Trotman Publishers, London, United Kingdom.

6. Smith, D.W., & Hammerlindl, D.J. (2023). Threaded Connection Design and Performance in Oilfield Tubular Goods. Journal of Petroleum Technology, Volume 75, Issue 8, Pages 2847-2863.
