Step-by-Step Guide to Installing Butt Weld Fittings with Precision

Secure, leak-proof connections in pipe systems are essential in many industrial applications, and butt weld fittings must be installed correctly to achieve this. If you want to install butt weld fittings precisely, this manual has all the information you need. Understanding the proper processes guarantees excellent performance and lifespan, whether you're working in a petrochemical plant, a water treatment facility, or a construction site. Precise installation is crucial for the integrity and safety of the system, as butt weld fittings are important connection sites that must endure intense temperatures, pressures, and corrosive environments.

Pre-Installation Preparation and Material Selection

Surface Preparation Requirements

Before installing butt weld fittings, thorough surface preparation is fundamental to achieving strong, reliable welds. The surfaces must be completely clean, flat, and dry to ensure proper fusion between the fitting and pipe. Remove all contaminants including oil, grease, dirt, rust, and mill scale using appropriate cleaning methods. Mechanical cleaning with wire brushes or grinders effectively removes stubborn deposits, while chemical cleaning agents can eliminate residual contaminants. The pipe ends should be cut square using proper cutting tools to ensure even contact surfaces. Any burrs or irregularities must be filed smooth to prevent stress concentrations that could lead to failure. The beveling process is equally important, creating the proper groove geometry for full penetration welds. Standard bevel angles typically range from 30 to 37.5 degrees, depending on wall thickness and welding specifications. Proper preparation extends the service life of butt weld fittings significantly.

Material Compatibility Assessment

Selecting compatible materials is critical when working with butt weld fittings in various applications. The fitting material must match the base pipe material in terms of chemical composition, mechanical properties, and thermal expansion characteristics. Carbon steel fittings work excellently with carbon steel piping systems, offering superior strength and durability. Stainless steel options provide enhanced corrosion resistance for aggressive environments. Consider the operating temperature range, as some materials may experience degradation or changes in mechanical properties at elevated temperatures. Pressure ratings must align with system requirements, ensuring the butt weld fittings can handle maximum operating pressures with appropriate safety margins. Review material certificates and test reports to verify compliance with relevant standards such as ASTM, ASME, or API specifications. Quality butt weld fittings from certified manufacturers guarantee consistent performance and reliability.

Tools and Equipment Setup

Proper equipment selection and setup directly impact the quality of butt weld fittings installation. Welding equipment must be calibrated and maintained according to manufacturer specifications. For most applications, TIG or MIG welding processes provide excellent control and penetration characteristics. Arc welding equipment should have adequate amperage capacity for the material thickness being welded. Positioning equipment such as pipe rollers, centering clamps, and backing rings help maintain proper alignment during the welding process. Measuring instruments including gap gauges, bevel gauges, and alignment tools ensure dimensional accuracy. Safety equipment is essential, including proper ventilation systems, protective clothing, and eye protection. Pre-heating equipment may be necessary for thick-wall applications or low-temperature service conditions. Having the right consumables, including electrodes, filler metals, and shielding gases, ensures optimal weld quality when installing butt weld fittings.

Installation Process and Welding Techniques

Joint Alignment and Fit-up Procedures

Achieving perfect alignment is crucial for successful butt weld fittings installation. Begin by ensuring both pipe ends and the fitting have identical outside diameters and wall thicknesses. Use centering clamps or internal alignment tools to maintain concentricity throughout the welding process. The root gap should be consistent around the entire circumference, typically ranging from 1/16 to 1/8 inch depending on the welding process and material thickness. Tack welds at strategic locations help maintain proper alignment while allowing for thermal expansion during welding. Check for angular misalignment using straight edges or specialized alignment tools. High-low conditions, where pipe ends are not flush, can create stress concentrations and reduce joint integrity. Take time to verify proper fit-up before beginning the final welding sequence. Quality butt weld fittings require precise alignment to achieve full penetration and optimal mechanical properties.

Root Pass and Fill Pass Execution

The root pass forms the foundation of any quality butt weld fittings installation and requires careful technique to achieve complete penetration. Use appropriate welding parameters including current, voltage, and travel speed to ensure proper fusion without excessive heat input. Back purging with inert gas prevents oxidation on the root side, particularly important for stainless steel applications. The root pass should completely fill the gap while maintaining proper penetration profile. Visual inspection of the root pass helps identify any defects before proceeding with fill passes. Fill passes should overlap properly and maintain consistent bead profile. Heat input control prevents distortion and maintains material properties in heat-affected zones. Multiple pass techniques allow better control over heat input and cooling rates. Each pass should be cleaned of slag or oxidation before applying subsequent passes. Proper interpass temperature control ensures optimal microstructure development in butt weld fittings.

Final Pass and Surface Finishing

The final welding pass is crucial for ensuring precise dimensions and a smooth surface when installing butt weld fittings. In order to reduce stress concentrations, cap passes should offer seamless contour transitions between the pipe and fitting. When it comes to applications that demand smooth internal flow characteristics, grinding or machining can be the way to go for certain surface profiles. When the joint is finished, it must pass a final dimensional check to ensure it is up to code. Application criticality determines the need for non-destructive testing procedures like radiography or ultrasonic inspection. Improvements in both appearance and corrosion resistance can be achieved through surface finishing techniques such as grinding, polishing, or passivation treatments. Welding parameters, inspection findings, and material certifications should all be documented for the sake of quality assurance and traceability. To alleviate tension or alter the microstructure, it may be required to provide the correct heat treatment after the weld. Quality control measures throughout the process ensure that butt weld fittings meet performance requirements and service life expectations.

Quality Control and Testing Methods

Non-Destructive Testing Procedures

Installing butt weld fittings in high-pressure situations requires thorough testing to guarantee its dependability and safety. Weld profile, surface polish, and dimensional correctness are examined during visual inspection, which is the initial step in quality control. Penetrant testing identifies flaws that breach the surface and might jeopardize the joint's integrity. Ferromagnetic materials can have their subsurface discontinuities found via magnetic particle examination. Weld quality issues like porosity, partial fusion, or slag inclusions may be seen in great detail by radiographic imaging. Weld thickness and internal soundness may be evaluated in real-time with ultrasonic testing. Qualified professionals are necessary for the correct implementation and interpretation of each testing technique due to their unique limits and specialized applications. Codes and standards, such API 1104 or ASME Section IX, should dictate the frequency and conditions for acceptance of tests. For the sake of quality control and meeting regulatory requirements, it is essential to document all test findings. If you want reliable findings when you test butt weld fittings, you need to calibrate your testing equipment regularly.

Pressure Testing and Leak Detection

Hydrostatic testing validates the structural integrity of completed butt weld fittings installations under simulated operating conditions. Test pressures typically exceed design pressures by specified safety factors, confirming adequate strength margins. Pneumatic testing may be used when water-based testing is impractical, though additional safety precautions are necessary due to stored energy considerations. Leak detection methods range from simple soap bubble tests to sophisticated helium mass spectrometry techniques. Hold times allow identification of slow leaks that might not be immediately apparent. Pressure recording equipment documents actual test conditions for compliance verification. Safety considerations include proper barricading, personnel protection, and emergency procedures. Failed tests require investigation to determine root causes and appropriate corrective actions. Successful testing provides confidence in system reliability and validates proper installation techniques for butt weld fittings.

Documentation and Quality Assurance

Keeping detailed records during the installation of butt weld fittings allows for accountability and traceability. The precise parameters and techniques for welding procedures are defined by process standards. Employees' qualifications as welders are evidence that they have the requisite knowledge and credentials. Results from material testing verify the consumables' and fittings' chemical make-up and mechanical qualities. Every step of quality control and acceptance judgments are documented in inspection reports. Any changes from the original plans or the actual installation conditions are reflected in the as-built drawings. The continuing performance of a service during its lifetime may be assured with the use of maintenance schedules and suggestions. Frameworks for both continuous improvement and methods for remedial action are provided by quality management systems. Consistent audits check if everything is done according to plan and find ways to make it better. In industrial settings, butt weld fittings must be accompanied by the appropriate paperwork to facilitate insurance claims, warranty claims, and regulatory compliance.

Conclusion

Successful installation of butt weld fittings requires careful attention to preparation, technique, and quality control measures. Following systematic procedures ensures reliable connections that withstand demanding operating conditions across various industrial applications. Proper material selection, surface preparation, and welding techniques form the foundation of quality installations. HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD, a butt weld fittings supplier, provides certified butt weld fittings and comprehensive technical support to ensure optimal performance in your piping systems.

FAQ

1. What are the most common mistakes when installing butt weld fittings?

Poor surface preparation, inadequate fit-up procedures, and incorrect welding parameters represent the primary causes of installation failures. Contaminated surfaces prevent proper fusion, while misalignment creates stress concentrations that can lead to premature failure. Following established procedures and maintaining quality control throughout the process eliminates most common installation problems with butt weld fittings.

2. How do I select the right butt weld fittings for my application?

Material compatibility, pressure ratings, temperature requirements, and dimensional specifications must align with system design parameters. Consider operating environment factors including corrosive media, thermal cycling, and mechanical stresses. Consult relevant codes and standards to ensure compliance with safety requirements and performance expectations for butt weld fittings in your specific application.

3. What testing methods are required after installing butt weld fittings?

Testing requirements depend on application criticality and applicable codes. Visual inspection is always required, while radiographic or ultrasonic testing may be mandatory for pressure vessels or hazardous service applications. Hydrostatic testing validates system integrity under simulated operating conditions, confirming proper installation of butt weld fittings.

4. Can butt weld fittings be repaired if defects are found?

Minor surface defects can often be repaired through grinding and rewelding, provided sufficient base material remains. Major defects typically require complete removal and replacement of the fitting. Repair procedures must follow qualified welding procedures and include appropriate testing to verify integrity of butt weld fittings after repair work.

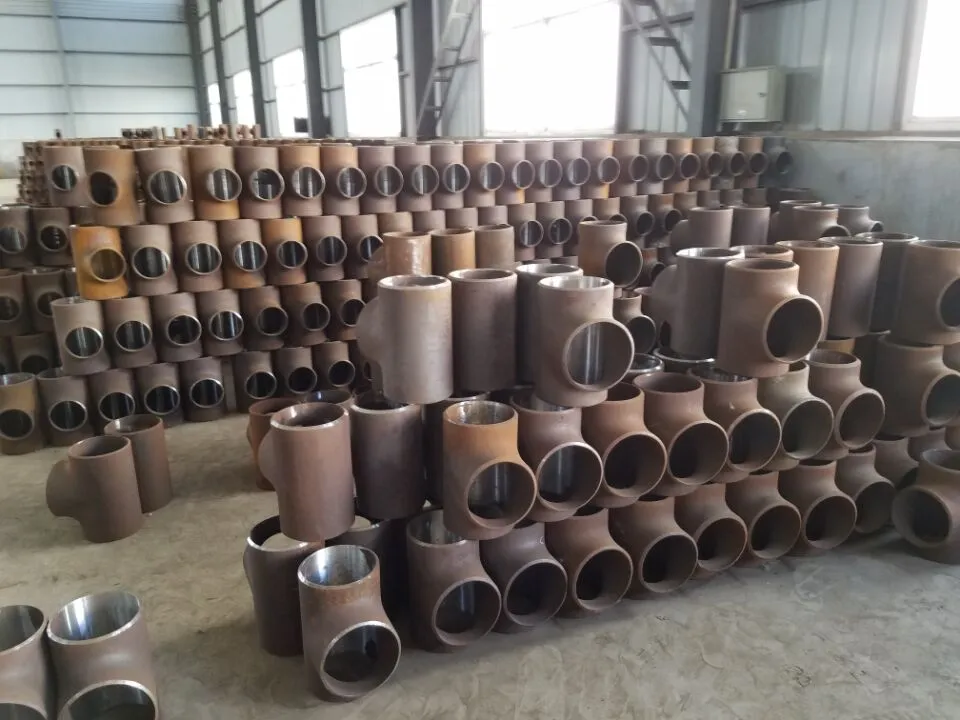

HEBEI RAYOUNG PIPELINE: Your Trusted Butt Weld Fittings Manufacturers and Suppliers

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we specialize in manufacturing premium butt weld fittings that deliver exceptional performance and reliability. Our ISO 9001:2015 certified facility produces comprehensive ranges of carbon steel and stainless steel fittings meeting international standards including GOST-R and SGS certifications. From residential installations to complex industrial projects, our butt weld fittings provide secure connections you can depend on. Experience the difference that quality manufacturing and technical expertise make in your piping systems. Contact us today at info@hb-steel.com for detailed specifications and expert guidance on selecting the perfect butt weld fittings for your application requirements.

References

1. American Society of Mechanical Engineers. ASME B16.9 - Factory-Made Wrought Buttwelding Fittings. New York: ASME Press, 2018.

2. American Welding Society. AWS D1.1 Structural Welding Code - Steel. Miami: American Welding Society, 2020.

3. American Petroleum Institute. API 5L - Specification for Line Pipe. Washington: API Publishing Services, 2019.

4. ASTM International. ASTM A234 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel. West Conshohocken: ASTM International, 2021.

5. International Organization for Standardization. ISO 3183 Petroleum and Natural Gas Industries - Steel Pipe for Pipeline Transportation Systems. Geneva: ISO Publications, 2019.

6. Lincoln Electric Company. The Procedure Handbook of Arc Welding. Cleveland: Lincoln Electric Company, 2017.
