Radiographic Testing vs Dye Penetrant: Which Ensures Better Safety

In the basic world of industrial pipe components fabricating and quality confirmation, two non-destructive testing strategies stand at the cutting edge of security confirmation: radiographic testing and color penetrant assessment. These methods serve as guardians, guaranteeing that industrial pipe components meet exacting security benchmarks some time recently establishment in high-pressure applications. Whereas both strategies identify imperfections that might compromise framework astuteness, their capabilities, impediments, and ideal applications contrast altogether. Understanding these contrasts is vital for producers, examiners, and engineers who must make educated choices approximately which testing approach gives predominant security affirmation for particular industrial pipe components applications.

Comparative Analysis of Detection Capabilities

Internal Defect Identification in Complex Geometries

When it comes to identifying internal flaws in industrial pipe components, especially those with intricate geometries like reducers and buttweld elbows, radiographic testing is preferable for industrial pipe components manufacturers. In order to uncover subsurface discontinuities including porosity, inclusions, and absence of fusion that might jeopardize structural integrity, this technique uses X-rays or gamma radiation to cut through the thickness of the material. For thick-wall industrial pipe components, when surface inspection techniques are unable to access crucial interior sections, the methodology proved particularly useful. Through computer-aided analysis, modern digital radiography systems improve problem detectability by offering quantitative measures of the size and severity of flaws. Radiographic testing is essential for quality documentation and traceability requirements in critical applications requiring industrial pipe components because it may produce permanent records of inspection results.

Surface Crack Detection Sensitivity

In industrial pipe components, dye penetrant testing is excellent at detecting surface-breaking flaws because it has a high sensitivity to surface discontinuities such as porosity and hairline fractures that may be imperceptible to the human eye. This technique applies visible or fluorescent dye to component surfaces, enabling capillary action to penetrate surface holes. Defect sites and orientations are evident when a developer pulls the trapped dye back to the surface after clearing away extra penetrant. For industrial pipe components made of austenitic stainless steel, where magnetic particle testing is not feasible because of their non-magnetic characteristics, the method works very well. Because of recent developments in penetrant chemistry, which have increased sensitivity while lessening environmental effect, this technology is becoming more and more appealing for routine inspection of industrial pipe components.

Volumetric vs Surface Inspection Advantages

The fundamental difference between radiographic and dye penetrant testing lies in their inspection coverage capabilities for industrial pipe components. Radiographic testing provides volumetric examination, detecting defects throughout the entire material thickness, while dye penetrant testing focuses exclusively on surface conditions. This distinction becomes critical when evaluating welded joints in industrial pipe components, where subsurface defects may exist without surface manifestation. However, dye penetrant testing offers immediate results and can be performed on complex surface geometries that challenge radiographic setup requirements. The choice between methods often depends on the specific failure modes most likely to affect particular industrial pipe components, with many quality programs incorporating both techniques for comprehensive defect detection coverage.

Cost-Effectiveness and Practical Implementation

Equipment Investment and Operational Expenses

Radiographic testing systems require significant capital investment for industrial pipe components inspection programs, including radiation sources, imaging equipment, and specialized safety infrastructure. Digital radiography systems, while offering improved efficiency and image quality, demand substantial upfront costs that may challenge smaller manufacturers of industrial pipe components. Additionally, ongoing expenses include radiation source replacement, film or detector maintenance, and specialized training for certified radiographers. Regulatory compliance costs for radiation safety programs add another layer of operational expense. However, the ability to detect internal defects that could lead to catastrophic failures often justifies these investments, particularly for critical industrial pipe components destined for high-pressure applications where failure consequences are severe.

Personnel Training and Certification Requirements

The implementation of radiographic testing for industrial pipe components requires highly trained personnel certified according to international standards such as ASNT SNT-TC-1A or ISO 9712. These certification programs involve extensive theoretical knowledge and practical experience requirements, creating ongoing training costs and potential staffing challenges. Dye penetrant testing, while still requiring proper training, involves less complex certification requirements and can be implemented more readily by manufacturing personnel. The learning curve for dye penetrant inspection of industrial pipe components is generally shorter, allowing for faster deployment in production environments. However, both methods require continuous training updates to maintain proficiency and adapt to evolving inspection standards for industrial pipe components.

Production Integration and Throughput Considerations

For industrial pipe components, dye penetrant testing enhances manufacturing processes by providing quick inspection cycles that reduce production bottlenecks. The procedure works well in high-volume production settings since it doesn't require complicated setup and can be carried out at room temperature. Setup, exposure, and image assessment time for radiography testing are usually longer, which might cause production scheduling issues for makers of industrial pipe components. On the other hand, automated radiography systems can increase throughput without sacrificing the quality of the examination. The criticality of defect identification for particular applications involving industrial pipe components and the required production volume frequently influence the procedure selection.

Safety Performance in Critical Applications

Failure Prevention Track Record

Historical data on the failures of industrial pipe components shows clear trends in the kinds of defects that cause disastrous events. Failures brought on by internal flaws, such as embedded inclusions that might act as fracture initiation sites and lack of penetration in welded joints, have been very successfully avoided by radiographic testing. The significance of identifying these hidden defects in industrial pipe components before to installation is illustrated by case studies from petrochemical plants. On the other hand, fatigue-related failures in industrial pipe components exposed to vibration loads or thermal cycling have been avoided thanks to dye penetrant testing, which has effectively detected surface cracks that could spread under cyclic loading circumstances.

Regulatory Compliance and Industry Standards

The standards for both dye penetrant and radiographic testing of industrial pipe components under various conditions are specified by major industrial codes like API 570 and ASME B31.3. According to these guidelines, choosing the right inspection techniques based on material types, service circumstances, and possible failure causes is necessary for optimum safety. While surface inspection techniques like dye penetrant testing are necessary to identify manufacturing flaws and in-service deterioration, pressure vessel regulations frequently demand radiographic evaluation for important welds in industrial pipe components. By adhering to these standards, producers and operators are legally protected and industrial pipe components are guaranteed to satisfy minimal safety criteria.

Long-term Reliability Assessment

How various testing procedures for industrial pipe components may be used to establish baseline conditions and track degradation over time is what differentiates them in terms of safety value. Periodic inspections with the use of radiographic testing allow for the comparison of interior conditions, which in turn allows for trend analysis and predictive maintenance methods. When it comes to industrial pipe components that are in crucial service, digital imaging solutions make data storage and comparison easier over the long term. Despite its effectiveness in identifying surface cracks, dye penetrant testing doesn't tell you much about the underlying factors that might impact the dependability in the long run. The combination of the two approaches results in all-encompassing safety assurance programs that take care of both the installation needs of industrial pipe components right now and their continued operating integrity in the future.

Conclusion

In order to ensure the safety of industrial pipe components, radiographic testing and dye penetrant inspection play crucial roles. The best method to use depends on the application and the priority of finding defects. Dye penetrant inspection is great for finding surface cracks, whereas radiographic testing is better at finding interior defects. In order to ensure that our industrial pipe components fulfill the strictest safety requirements for mission-critical applications across the world, HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. uses thorough testing processes with GOST-R and SGS certifications.

FAQ

1. Which testing method is more suitable for thick-wall pipe components?

Radiographic testing is generally preferred for thick-wall industrial pipe components due to its ability to detect internal defects throughout the material thickness. Dye penetrant testing only identifies surface-breaking defects and cannot evaluate internal integrity of heavy-wall components used in high-pressure applications.

2. Can both testing methods be used on stainless steel components?

Yes, both radiographic and dye penetrant testing are suitable for stainless steel industrial pipe components. Dye penetrant is particularly valuable for austenitic stainless steels where magnetic particle testing cannot be applied due to non-magnetic properties, while radiography effectively detects internal weld defects.

3. How do production costs compare between these testing methods?

Dye penetrant testing typically involves lower direct costs per inspection but may require more frequent testing intervals. Radiographic testing has higher per-inspection costs but provides more comprehensive defect detection, potentially reducing overall quality costs for critical industrial pipe components applications.

4. Which method provides better documentation for quality records?

Radiographic testing creates permanent film or digital records that can be stored and reviewed indefinitely for industrial pipe components. Dye penetrant testing relies on immediate visual interpretation and photographic documentation, making radiography superior for long-term traceability requirements and quality audits.

HEBEI RAYOUNG PIPELINE: Trusted Industrial Pipe Components Manufacturers

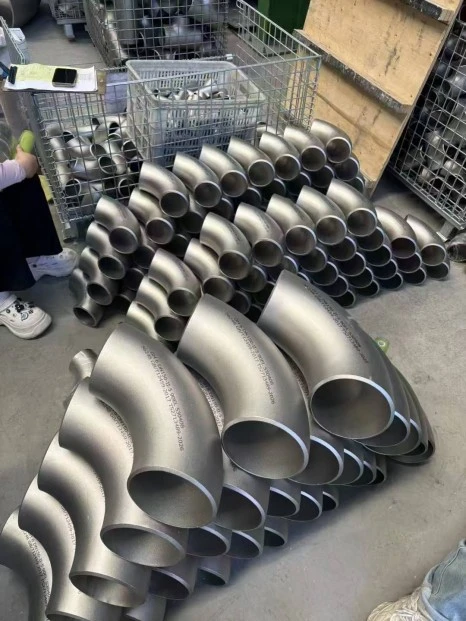

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we combine advanced testing methodologies with decades of manufacturing excellence to deliver superior industrial pipe components that exceed safety expectations. Our comprehensive quality assurance program incorporates both radiographic and dye penetrant testing protocols, ensuring every buttweld elbow, reducer, and flange meets stringent international standards. With ISO 9001:2015 certification and proven expertise in carbon steel pipe manufacturing, we understand that reliable industrial pipe components form the foundation of safe industrial operations. Partner with us for your next project and experience the confidence that comes from working with industry leaders who prioritize safety above all else. Contact our technical team at info@hb-steel.com to discuss your specific testing requirements and discover why leading companies worldwide trust our industrial pipe components for their most critical applications.
