Industrial Pipe Components in LNG Plants: Challenges and Solutions

The industrial pipe components used in liquefied natural gas (LNG) facilities endure some of the worst circumstances imaginable, including extremely high pressures, temperatures, and corrosive substances. Cryogenic temperatures as low as -162°C can compromise the structural integrity and operating safety of these intricate structures, necessitating specialized pipe systems. For dependable operations, low maintenance costs, and no catastrophic failures that might cause huge economic losses and safety problems, it is crucial to choose and install the right industrial pipe components.

Critical Material Selection for Extreme LNG Conditions

Cryogenic Temperature Resistance Requirements

Conventional materials become brittle and prone to failure in cryogenic conditions, thus industrial pipe components used in LNG applications by an industrial pipe components supplier must display remarkable performance. Due to their ability to retain ductility even at very low temperatures, austenitic stainless steels—specifically grades 304L and 316L—have established themselves as industry standards. Suitable for use in main containment systems, these materials maintain their mechanical characteristics even when heated to the temperatures of liquid nitrogen. During thermal cycling processes, the microstructure of these steels avoids the production of brittle phases that might endanger the integrity of industrial pipe components.

Corrosion Resistance in Marine Environments

Pipelines at LNG terminals are particularly vulnerable to chloride-induced corrosion because of the hostile maritime conditions in which they are located. Industrial pipe components exposed to saltwater conditions are susceptible to pitting, crevice corrosion, and stress corrosion cracking; hence, these corrosion problems must be designed into the components. External pipe systems can benefit from duplex stainless steels' longer service life due to their higher chloride resistance compared to austenitic grades. Coastal LNG plants can reduce maintenance needs and increase dependability by using corrosion-resistant metals for industrial pipe components.

Thermal Expansion Management Systems

The extreme temperature differentials encountered in LNG operations create substantial thermal expansion challenges that must be addressed through careful design of industrial pipe components and expansion joint systems. Bellows-type expansion joints manufactured from specialized alloys accommodate thermal movement while maintaining pressure boundary integrity. These components must be designed to handle both axial and lateral movements while resisting fatigue failure under cyclic loading conditions. Proper installation and maintenance of thermal expansion systems prevent stress concentration points that could lead to premature failure of critical industrial pipe components.

Advanced Manufacturing and Quality Control Processes

Precision Welding Techniques for Critical Applications

Manufacturing of industrial pipe components for LNG service requires specialized welding procedures that ensure complete penetration and eliminate potential leak paths. Gas Tungsten Arc Welding (GTAW) processes with carefully controlled heat input parameters prevent sensitization of stainless steel components while maintaining corrosion resistance properties. Automated welding systems provide consistent quality and reduce human error factors that could compromise the integrity of industrial pipe components. Post-weld heat treatment processes relieve residual stresses and optimize the metallurgical structure for cryogenic service conditions.

Non-Destructive Testing Protocols

Comprehensive quality assurance programs for industrial pipe components incorporate multiple non-destructive testing methods to detect potential defects before installation. Radiographic testing reveals internal discontinuities such as porosity, inclusions, and lack of fusion that could propagate under service conditions. Liquid penetrant testing identifies surface-breaking defects in industrial pipe components, while magnetic particle testing detects subsurface flaws in ferromagnetic materials. Ultrasonic testing provides volumetric inspection capabilities for thick-wall components where radiographic methods may have limitations.

Certification and Traceability Requirements

Industrial pipe components destined for LNG service must comply with stringent certification requirements including material test certificates, dimensional inspection reports, and mechanical property verification. Traceability documentation follows each component from raw material procurement through final installation, ensuring accountability throughout the supply chain. Third-party inspection agencies verify compliance with international standards such as ASME B31.3 and API 620, providing additional assurance of quality and reliability for critical industrial pipe components.

Installation and Maintenance Best Practices

Pre-Installation Preparation Procedures

Successful installation of industrial pipe components in LNG facilities requires meticulous preparation including surface cleaning, dimensional verification, and pre-fit assembly checks. Contamination control protocols prevent introduction of chlorides or other corrosive substances that could compromise long-term performance. Specialized lifting and handling equipment protects delicate components during transportation and positioning operations. Pre-installation hydrostatic testing verifies pressure integrity before commissioning of industrial pipe components in active service.

Predictive Maintenance Strategies

Modern LNG facilities employ advanced monitoring systems to track the condition of industrial pipe components throughout their service life. Vibration analysis detects developing mechanical issues before they result in failure, while thermal imaging identifies hot spots that may indicate internal blockages or insulation degradation. Ultrasonic thickness measurements monitor corrosion rates and remaining wall thickness of pressure-containing components. These predictive maintenance approaches extend service life and improve reliability of critical industrial pipe components.

Emergency Response and Repair Procedures

Procedures for the quick separation and repair of malfunctioning industrial pipe components are part of LNG plants' thorough emergency response plans. Repairs may be completed without completely shutting down the system using hot tapping and plugging procedures. This minimizes production losses and safety hazards. Rapid reaction capabilities are guaranteed in the event of catastrophic failures by having spare parts and specialist repair equipment pre-positioned. Maintenance workers are taught how to handle industrial pipe components and cryogenic systems securely in case of an emergency.

Conclusion

An all-encompassing approach involving material selection, manufacturing quality, and operational best practices is required to address the issues related to industrial pipe components in LNG facilities. The qualities of cryogenic materials, their resistance to corrosion, and thermal management systems must be carefully considered in order to succeed in these challenging applications. In order to guarantee dependable performance in crucial LNG applications globally, HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. supplies high-quality industrial pipe components that have been certified by GOST-R and SGS.

FAQ

1. What materials are best suited for LNG pipe components?

Austenitic stainless steels grades 304L and 316L are preferred for their excellent cryogenic properties and corrosion resistance. These industrial pipe components maintain ductility at extremely low temperatures while providing reliable long-term performance in demanding LNG applications.

2. How do thermal expansion challenges affect LNG piping systems?

Specialized expansion joints and flexible connections are necessary because to the considerable thermal strains caused by extreme temperature differentials. In order to maintain pressure integrity and avoid fatigue failures, industrial pipe components must be designed in a way that allows for thermal movement.

3. What quality control measures ensure LNG component reliability?

The integrity of industrial pipe components is checked using thorough testing techniques that include radiography, ultrasonic, and penetrant testing. Compliance with international standards and responsibility throughout the production process are guaranteed by material certificates and traceability paperwork.

4. Why is predictive maintenance important for LNG facilities?

Utilizing vibration analysis and thermal imaging, predictive maintenance solutions can identify any problems prior to their occurrence. Because of this method, industrial pipe components have a longer lifespan, and crucial LNG processes experience less unscheduled downtime and fewer safety concerns.

HEBEI RAYOUNG PIPELINE: Leading Industrial Pipe Components Manufacturers

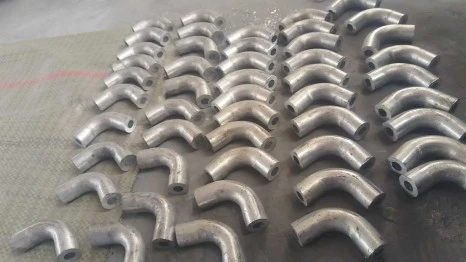

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we understand the critical importance of reliable industrial pipe components in LNG applications. Our comprehensive range of buttweld steel elbows, reducers, and flanges meets the demanding requirements of cryogenic service while maintaining the highest quality standards. With ISO 9001:2015 certification and proven expertise in complex piping solutions, we deliver dependable industrial pipe components that ensure safe and efficient LNG operations. Contact us today at info@hb-steel.com to discuss your specific requirements and discover why leading LNG facilities trust our industrial pipe components for their most critical applications.
