How to Select the Right Steel Flanges for Your Project？

Selecting the appropriate steel flanges for your project is crucial for ensuring safe, reliable, and long-lasting pipeline connections. Steel flanges serve as critical joining components in piping systems, providing secure connections that can withstand various pressures, temperatures, and environmental conditions. The right selection process involves understanding your project's specific requirements, including pressure ratings, material compatibility, and installation environment. Whether you're working on industrial applications, commercial buildings, or residential systems, choosing quality steel flanges ensures optimal performance and minimizes maintenance costs over time.

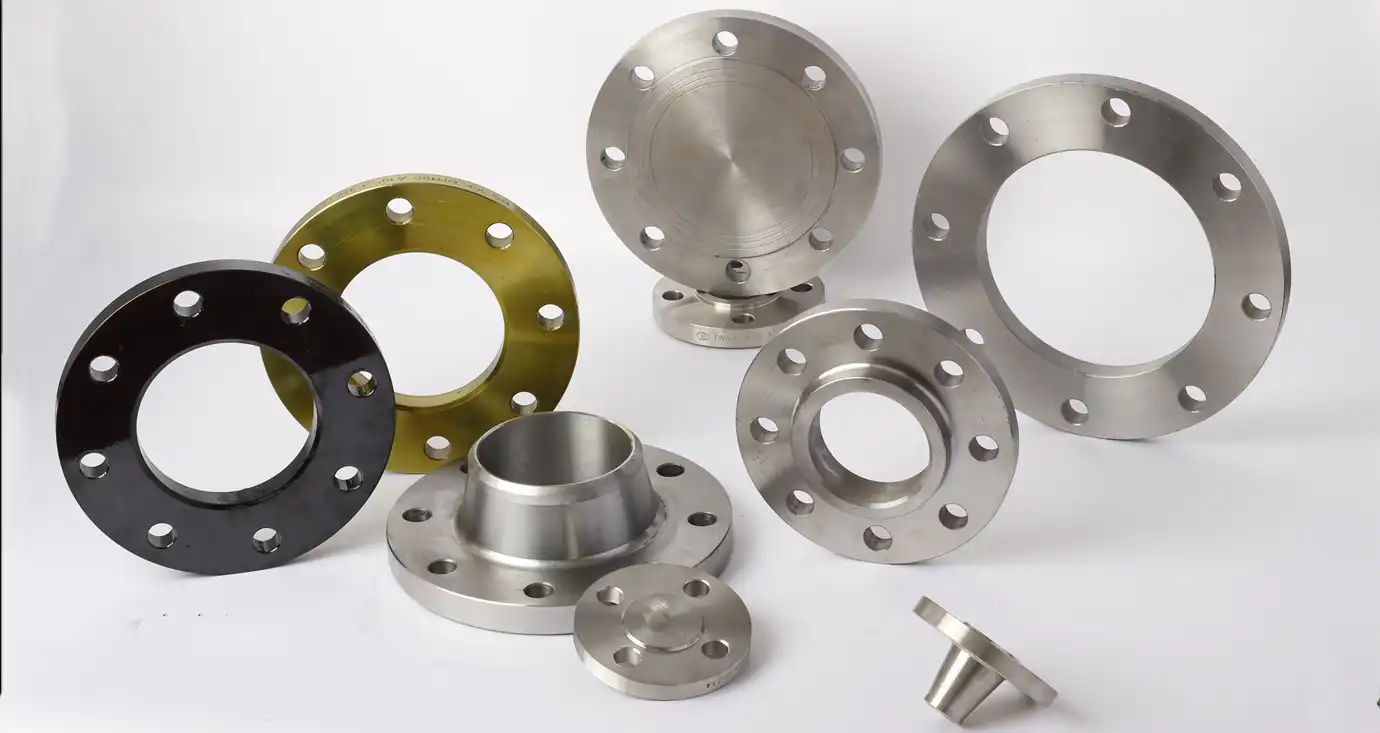

Understanding Steel Flange Types and Applications

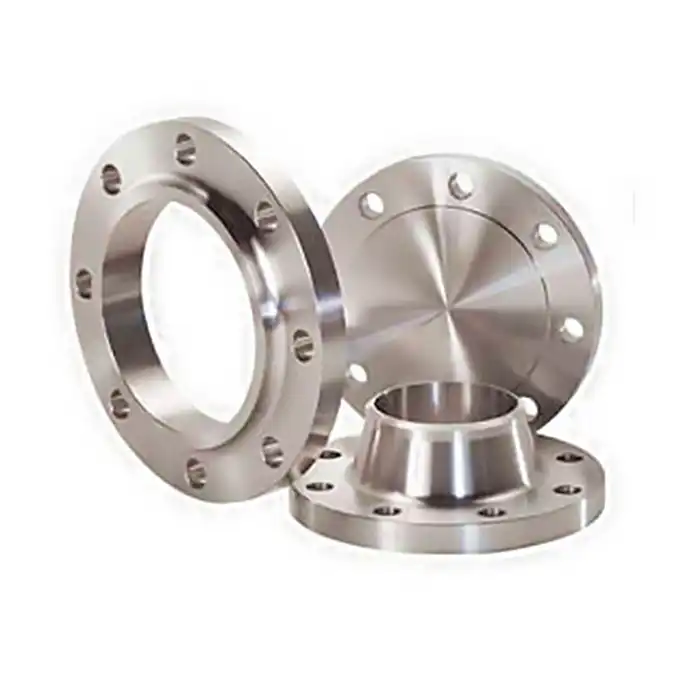

Weld Neck Flanges for High-Pressure Systems

Weld neck steel flanges represent the gold standard for high-pressure and high-temperature applications. These flanges feature a long tapered hub that gradually transitions from the pipe wall thickness to the flange thickness, creating exceptional stress distribution. The design eliminates sharp corners and stress concentration points, making them ideal for critical applications where safety is paramount. Steel flanges of this type are commonly used in petrochemical plants, power generation facilities, and other industrial settings where system integrity cannot be compromised. The welding process creates a seamless connection between the pipe and flange, resulting in a joint that can handle extreme conditions while maintaining structural integrity throughout the system's lifecycle.

Slip-On Flanges for Versatile Connections

Slip-on steel flanges offer excellent versatility and cost-effectiveness for medium-pressure applications. These flanges slip over the pipe end and are welded both inside and outside, providing a strong connection suitable for most industrial and commercial applications. The design allows for easy alignment during installation, reducing labor costs and installation time. Steel flanges in this category are particularly popular in water treatment facilities, HVAC systems, and general industrial piping where moderate pressures and temperatures are encountered. Their straightforward installation process makes them a preferred choice for maintenance and repair operations, where quick and reliable connections are essential for minimizing downtime.

Blind Flanges for System Isolation

Blind steel flanges serve as essential components for closing pipe ends or creating inspection points within piping systems. These solid plates bolt to standard flanges, providing complete isolation of system sections during maintenance or testing procedures. The robust construction of blind steel flanges ensures they can withstand full system pressure while providing easy access for future modifications or inspections. They are indispensable in chemical processing plants, oil refineries, and other facilities where system isolation is frequently required. The ability to quickly isolate sections of a piping system using blind flanges significantly enhances operational flexibility and safety during maintenance operations.

Material Selection and Specification Considerations

Carbon Steel vs. Stainless Steel Properties

The choice between carbon steel and stainless steel flanges depends on your project's specific environmental and operational requirements. Carbon steel flanges offer excellent strength-to-cost ratio and are suitable for most general applications where corrosion is not a primary concern. These steel flanges perform exceptionally well in dry environments and applications involving non-corrosive fluids. However, stainless steel flanges provide superior corrosion resistance and are essential for applications involving chemicals, marine environments, or food processing. The initial higher cost of stainless steel flanges is often justified by their extended service life and reduced maintenance requirements. Understanding the trade-offs between material costs and long-term performance helps ensure optimal selection for your specific application requirements.

Pressure and Temperature Ratings

Proper pressure and temperature rating selection is fundamental to safe and reliable flange performance. Steel flanges are manufactured to specific ANSI, API, or international standards that define their maximum allowable working pressures at various temperatures. Higher pressure ratings require thicker flange bodies and larger bolt patterns, directly impacting installation space requirements and costs. Temperature considerations are equally important, as elevated temperatures reduce the allowable working pressure of steel flanges. The relationship between pressure and temperature must be carefully evaluated using manufacturer pressure-temperature charts to ensure safe operation throughout the system's operating envelope. Proper rating selection prevents catastrophic failures and ensures compliance with safety regulations.

Surface Finish and Sealing Requirements

The sealing surface finish of steel flanges directly impacts their ability to create leak-tight joints with gaskets. Raised face finishes are most common and work well with standard gaskets in moderate pressure applications. Ring type joint finishes are required for high-pressure applications and use metallic gaskets for superior sealing performance. The surface finish specification must match the gasket type and application requirements to achieve reliable sealing. Steel flanges with improper surface finishes can result in gasket damage, leakage, and premature joint failure. Understanding the relationship between surface finish, gasket selection, and application requirements is essential for creating reliable, long-lasting connections that meet performance expectations throughout their service life.

Installation and Quality Assurance Factors

Proper Bolt Selection and Torque Requirements

Bolt selection and proper torque application are critical factors in steel flange installation success. The bolt material, grade, and size must be compatible with the flange material and service conditions. High-strength bolts are often required for high-pressure applications, while standard bolts may suffice for lower pressure services. Proper torque application ensures uniform gasket compression and prevents both under-tightening and over-tightening issues. Steel flanges require specific torque sequences, typically following a star pattern to ensure even stress distribution. The use of calibrated torque wrenches and adherence to manufacturer specifications prevents gasket damage, bolt failure, and joint leakage. Regular retorquing may be necessary during initial operation as gaskets settle and conform to the sealing surfaces.

Alignment and Installation Best Practices

Proper alignment during steel flange installation is essential for achieving optimal performance and preventing premature failure. Misaligned flanges create uneven stress distribution, leading to gasket failure and potential bolt fatigue. The use of proper lifting equipment and alignment tools ensures that flanges mate correctly without forcing connections. Steel flanges should be inspected for damage, proper dimensions, and cleanliness before installation. Foreign materials between sealing surfaces can compromise joint integrity and lead to leakage. Following established installation procedures, including proper pipe support and stress analysis, ensures that the completed installation operates reliably throughout its design life. Documentation of installation procedures and torque values provides valuable information for future maintenance activities.

Quality Control and Certification Standards

Quality control measures ensure that steel flanges meet specified requirements and perform reliably in service. Reputable manufacturers provide material certifications, dimensional reports, and test certificates that verify compliance with applicable standards. These documents trace the material from raw steel through manufacturing processes to final inspection. Steel flanges should be manufactured under quality management systems such as ISO 9001:2015 to ensure consistent production quality. Third-party testing and certification by organizations like SGS provide additional assurance of product quality and compliance with international standards. Proper documentation and certification are particularly important for export applications and critical service applications where failure could have serious consequences.

Conclusion

Selecting the right steel flanges requires careful consideration of multiple factors including application requirements, material properties, and installation conditions. The decision process involves balancing performance requirements, cost considerations, and long-term reliability to achieve optimal results. Proper selection ensures safe operation, minimizes maintenance costs, and provides reliable service throughout the system's design life. Working with experienced suppliers who understand these complexities helps ensure successful project outcomes.
