How to Evaluate the Quality of Butt Weld Fittings Before Purchase？

Choosing top-notch butt weld fittings is essential when investing in pipeline infrastructure to guarantee functionality and safety over the long run. From oil refineries to water treatment plants, these vital parts are the seams that hold the pipe systems together. To thoroughly research butt weld fittings before buying, one must have a look at their certification criteria, production standards, and material specifications. In order to evaluate quality, one must be familiar with mechanical qualities, chemical make-up, surface smoothness, and actual dimensions. Throughout the operating lifespan of their pipe infrastructure, customers may avoid expensive failures, decrease maintenance needs, and assure optimal system performance by applying correct evaluation methodologies.

Material Specifications and Chemical Composition Analysis

Understanding Base Material Requirements

The foundation of reliable butt weld fittings lies in their material composition and metallurgical properties. Carbon steel grades commonly used in manufacturing these components must meet specific ASTM standards, with chemical composition directly affecting corrosion resistance, strength, and weldability. When evaluating butt weld fittings, purchasers should verify that the carbon content, manganese levels, and trace elements align with project specifications. Material certificates should clearly indicate the heat treatment processes applied, as these directly influence the mechanical properties and performance characteristics. The grain structure and homogeneity of the material significantly impact the fitting's ability to withstand thermal cycling, pressure variations, and environmental stresses encountered in service conditions.

Mechanical Property Verification

The structural integrity of butt weld fittings under operating loads is determined by important metrics such as tensile strength, yield strength, and elongation values. As part of the quality assessment process, these mechanical qualities must be compared to both general industry norms and the unique needs of the project at hand. You may learn a lot about a material's toughness and brittleness transition properties from impact resistance tests, especially Charpy V-notch tests at different temperatures. If you assess the hardness of the fitting in several places, you can find any hot spots or stress concentrations that could be affecting its function. For the fitting to distribute loads uniformly and not fail too soon under service circumstances, these mechanical qualities must be constant across its cross-section.

Surface Quality and Dimensional Tolerance Assessment

Pipeline butt weld fittings' weldability and durability are impacted by the quality of their surface finish. As part of the evaluation process, it is important to visually evaluate the surface for any imperfections that may cause stress concentration areas, such as pits, scratches, scale, or inclusions. Welding problems and possible leak routes may be reduced with dimensional accuracy verification ensuring a perfect fit-up with connected pipes. Inconsistencies in production that might impact pressure ratings or structural integrity can be found by measuring the wall thickness at various places. Welding processes and joint quality are greatly affected by the accuracy of the bevel and the angle, thus it's important to check the uniformity of the edge preparation and the geometric tolerances all around the fitting.

Certification Standards and Compliance Verification

International Quality Standards Assessment

Butt weld fittings fulfill the minimal quality criteria for safe operation in critical applications thanks to compliance with established international standards. Product-specific standards, such as ASME B16.9 or ASTM A234, specify dimensions and material criteria, whereas ISO 9001:2015 certification shows systematic quality control during production. GOST-R certification ensures quality consistency and increases market acceptance by demonstrating conformity with Russian technical norms. The SGS certification serves as an independent verification of the quality and consistency of the product and its production process. You can trust that the manufacturer will consistently produce butt weld fittings that fulfill industry standards and regulatory requirements since these certifications involve frequent audits and testing.

Manufacturing Process Documentation

Comprehensive manufacturing documentation provides transparency into production methods and quality control measures employed during fitting fabrication. Process flow charts should detail forming, heat treatment, machining, and inspection procedures applied to each batch of butt weld fittings. Welding procedure specifications, when applicable to manufacturing processes, ensure consistent metallurgical properties and joint integrity. Heat treatment records document temperature profiles, holding times, and cooling rates that directly affect material properties and stress relief. Quality control checkpoints throughout production help identify potential issues before final inspection, ensuring that only conforming products reach the market and meet customer expectations.

Testing and Inspection Protocols

Before being sent to end customers, butt weld fittings are subjected to stringent testing processes to ensure they fulfill the required performance requirements. You can find surface and interior flaws that could affect performance using non-destructive testing procedures including magnetic particle inspection, ultrasonic testing, and liquid penetrant testing. The capacity of the fitting to retain fluids at the specified pressures without leaking or distortion is confirmed by hydrostatic pressure testing. Mechanical testing verifies qualities like strength and ductility, while chemical analysis guarantees that the material's composition is in accordance with standards. To provide quality control and easy remediation in the event of service-related performance problems, these testing methodologies should be well-documented and able to be tracked down to individual production batches.

Supplier Evaluation and Quality Assurance Practices

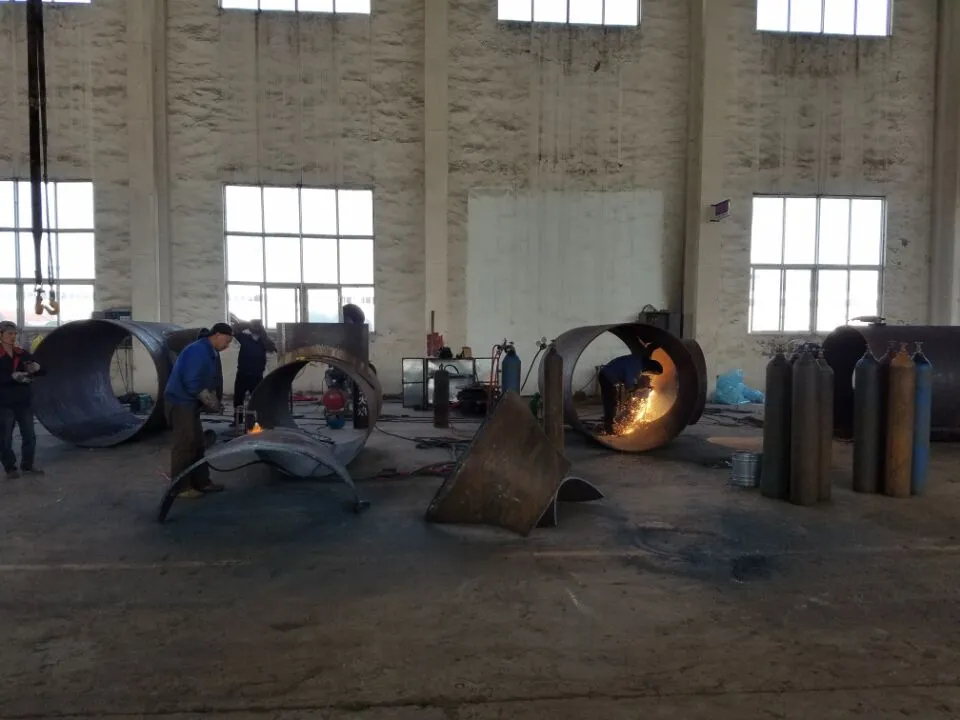

Manufacturing Facility Assessment

The capacity of the supplier to reliably provide high-quality butt weld fittings may be learned by analyzing their production processes. A sign of technical competence and manufacturing accuracy is the use of modern production equipment, such as computer-controlled machining centers, heat treatment furnaces, and precision shaping machines. As evidence of their dedication to product verification, quality control laboratories are equipped with spectrometers, tensile testing equipment, and dimensional measuring instruments. Technical know-how and personnel training programs guarantee correct material handling and production process adherence. The reliability and quality of products are influenced by the facility's cleanliness, organization, and maintenance methods, which in turn reflect a general awareness of quality and care for detail.

Supply Chain Management and Traceability

Effective supply chain management ensures consistent raw material quality and enables complete traceability from raw materials through finished products. Material procurement procedures should specify approved suppliers and incoming inspection requirements for steel plates, bars, and other raw materials used in butt weld fittings production. Heat number tracking systems maintain material traceability throughout the manufacturing process, enabling quality investigations and corrective actions when necessary. Inventory management practices ensure proper material handling, storage conditions, and rotation to prevent deterioration or contamination. Documentation systems maintain complete records of material sources, processing parameters, and quality test results, facilitating quality assurance and customer confidence.

Customer Service and Technical Support

A supplier's dedication to client satisfaction and the establishment of long-term partnerships is demonstrated by their comprehensive technical support capabilities. Value is added beyond just providing products by engineers who are skilled in pipe system design, material selection, and installation methods. In order to keep project delays to a minimum, responsive customer support answers questions, gives technical documentation, and fixes problems quickly. Showing confidence in product quality and dedication to client success is demonstrated via after-sales assistance, which includes field service capabilities and warranty plans. Customers' understanding of butt weld fittings and how to install them correctly is improved through technical seminars and training programs for installation staff.

Conclusion

Systematic evaluation of material attributes, production standards, and supplier capabilities is necessary to evaluate the quality of butt weld fittings. Certifying the chemical composition, verifying mechanical properties, ensuring precise dimensions, and adhering to international standards are all crucial considerations. Reliable performance, lower maintenance costs, and no expensive system breakdowns are all results of thorough examination. In order to ensure that their pipes and fittings meet the highest quality requirements, HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD, a butt weld fittings factory, is ISO 9001:2015 certified, follows GOST-R regulations, and conducts extensive testing. Their products are trusted by a wide range of industries throughout the globe.

FAQ

1. What are the most important material properties to verify in butt weld fittings?

Chemical composition, tensile strength, yield strength, and impact resistance represent the most critical material properties affecting performance. Carbon content, manganese levels, and trace elements must meet ASTM specifications, while mechanical properties should align with project requirements. Impact testing at service temperatures ensures adequate toughness, and hardness measurements verify consistent material properties throughout the fitting cross-section for reliable long-term performance.

2. How can I verify the authenticity of certification documents for butt weld fittings?

Authentic certification documents contain verifiable certificate numbers, authorized signatures, and official seals from recognized certification bodies. Contact the issuing organization directly to verify certificate validity and scope. Cross-reference material test reports with certificates to ensure consistency. Reputable suppliers provide complete documentation packages including material certificates, dimensional inspection reports, and quality management system certifications for full traceability and verification.

3. What inspection methods are most effective for detecting defects in butt weld fittings?

Ultrasonic testing, magnetic particle inspection, and liquid penetrant testing are all non-destructive testing procedures that may discover interior flaws, surface fractures, and discontinuities. While dimensional measurement confirms geometric conformance, visual inspection finds blatant surface flaws. To ensure structural integrity and leak-tightness under design circumstances, hydrostatic pressure testing is performed. This ensures that the structure is appropriate for service applications.

4. Why is supplier facility assessment important when purchasing butt weld fittings?

The technical knowledge, quality control methods, and production capacities revealed by an evaluation of a facility have a direct bearing on the final product's standard of excellence. Consistently high-quality output is possible thanks to up-to-date machinery, calibrated testing devices, and trained workers. A thorough quality management system guarantees a methodical approach to preventing defects and continuously improving the production process, while clean and organized facilities demonstrate quality consciousness.

HEBEI RAYOUNG PIPELINE: Leading Butt Weld Fittings Manufacturers and Suppliers

Our specialty at HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD. is manufacturing high-quality butt weld fittings that satisfy the most exacting industrial specifications. Our cutting-edge production facility ensures that every fitting provides outstanding performance and dependability by combining cutting-edge technology with strict quality control. Through SGS validation, GOST-R compliance, and ISO 9001:2015 certification, we uphold the highest standards throughout all of our production processes. Carbon steel elbows, reducers, and flanges are among our extensive product line; they are made for a variety of uses, ranging from industrial petrochemical systems to domestic plumbing. Select RAYOUNG for your upcoming project to see the impact that high-quality engineering can have. Contact us today at info@hb-steel.com to discuss your specific requirements and discover how our expertise can enhance your pipeline infrastructure.
