How to choose the right blind flange for high-pressure applications？

Selecting suitable blind flanges for high-pressure applications requires cautious assessment of weight evaluations, fabric details, and plan measures to guarantee framework astuteness and operational security. The right choice avoids disastrous disappointments, minimizes support costs, and expands the benefit of life in requesting mechanical situations. High-pressure dazzle ribs must withstand extraordinary strengths while keeping up leak-tight seals beneath nonstop push, temperature variances, and destructive conditions. Engineers must adjust specialized prerequisites with financial considerations, assessing components including weight, course evaluations, fabric compatibility, dimensional measures, and installation requirements. This comprehensive direct gives basic criteria for indicating dazzle spines that provide solid execution in petrochemical handling, control era, seaward stages, and other high-pressure mechanical applications where component disappointment seems results in critical security risks and operational disruptions.

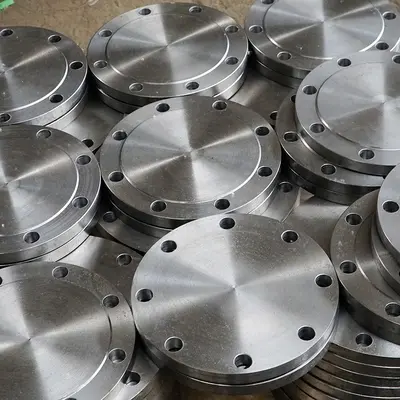

Understanding Pressure Rating Requirements for Blind Flanges

Calculating Design Pressure and Safety Margins

Determining fitting weight appraisals for daze spines starts with exhaustive examination of the greatest working weights inside the channeling framework. Plan engineers must account for ordinary working conditions, temporal weight spikes amid startup and shutdown groupings, and potential overpressure scenarios that might happen amid disturbed conditions. Industry measures ordinarily require weight evaluations that surpass the greatest expected weights by security variables extending from 1.5 to 2.0, depending on benefit criticality and jurisdictional necessities. High-pressure dazzle spines involve significant twisting stresses as inner weight acts over the strong disk range, creating moments that increase exponentially with breadth. Weight lesson choice takes after standardized evaluations, including 600, 900, 1500, and 2500 pound classes characterized in ASME B16.5, with each lesson outlined for particular pressure-temperature connections. Temperature impacts essentially impact passable weights, as fabric quality deteriorates at hoisted temperatures, requiring weight derating based on distributed pressure-temperature charts. Applications including cyclic weight stacking require extra thought of weakness impacts that might compromise daze rib keenness over amplified benefit periods.

Understanding ASME Pressure Class Designations

ASME B16.5 establishes seven standard pressure classes for blind flanges, ranging from Class 150 through Class 2500, with each classification corresponding to maximum allowable working pressures at specific temperatures. Class 600 blind flanges typically serve moderate to high-pressure applications up to 110 bar at ambient temperature, making them common in chemical processing and steam systems. Class 900 ratings extend capabilities to approximately 165 bar, suitable for high-pressure hydrocarbon processing and enhanced recovery operations. Class 1500 blind flanges accommodate pressures reaching 275 bar, finding applications in supercritical processes and specialized chemical manufacturing. Class 2500 represents the highest standard rating at approximately 460 bar ambient temperature capacity, reserved for extreme pressure services, including high-pressure injection systems and research facilities. Each pressure class features progressively greater thickness to resist bending forces, with corresponding increases in weight, cost, and bolt requirements. Proper specification requires matching the blind flange pressure class to both the companion flange rating and the piping system design pressure with appropriate safety margins.

Evaluating Temperature Effects on Pressure Ratings

Temperature essentially impacts the weight capacity of daze ribs, as fabric quality reduces with increasing temperature, requiring weight derating for raised temperature applications. ASME pressure-temperature rating tables give admissible weights at different temperatures for diverse fabric grades, with carbon steel daze ribs losing around 20 percent of surrounding weight capacity at 200 degrees Celsius. Stainless steel grades maintain predominant high-temperature quality, despite the fact that they still require derating past 400 degrees Celsius. Cryogenic applications display inverse challenges, where fabric sturdiness and impact resistance ended up basic concerns requiring specialized fabric testing and certification. Warm cycling presents extra complexities, as differential development between dazzle spines, companion ribs, and blasting can modify preload and gasket compression amid temperature variances. High-pressure dazzle spines in warm cycling benefit may require intermittent retorquing to keep up seal astuteness as materials crawl and gaskets compress beneath supported raised temperatures. Low-temperature administrations request impact-tested materials that stand up to fragile break, with Charpy affect testing ordinarily required for temperatures underneath short 20 degrees Celsius to confirm satisfactory toughness.

Material Selection Criteria for High-Pressure Blind Flanges

Carbon Steel and Alloy Steel Options

Carbon steel remains the overwhelming material for high-pressure daze ribs in non-corrosive environments, advertising fabulous mechanical properties, weldability, and cost-effectiveness for the lion's share of mechanical applications. ASTM A105 speaks to the standard detail for carbon steel produced dazzle spines, giving solid execution in temperature ranges from short 29 to 425 degrees Celsius with fitting effect testing for low-temperature benefit. Amalgam steel daze ribs joining chromium and molybdenum augmentations convey improved high-temperature quality and crawl resistance, with ASTM A182 F11 and F22 grades serving applications up to 600 degrees Celsius. High-pressure hydrocarbon preparation frequently indicates chrome-moly dazzle spines for hydrogen sulfide resistance and high-temperature execution in catalytic splitting and hydroprocessing units. Fabric certification documentation, including process test reports confirming chemical composition and mechanical properties, speaks to fundamental obtainment necessities for high-pressure dazzle spines where component disappointment results in disastrous consequences. Positive fabric recognizable proof utilizing spectroscopic investigation gives extra confirmation that provided dazzle spines coordinate indicated fabric grades, anticipating incidental establishment of inaccurate materials.

Corrosion-Resistant Alloy Specifications

Corrosive environments demand stainless steel or specialized nickel alloy blind flanges capable of withstanding aggressive chemical attack while maintaining structural integrity under high pressures. Austenitic stainless steels, including ASTM A182 F304 and F316 grades, provide general corrosion resistance with adequate strength for moderate to high-pressure applications, though suffering reduced performance in chloride-bearing environments susceptible to stress corrosion cracking. Duplex and super duplex stainless steels offer superior strength-to-weight ratios and chloride stress corrosion resistance, enabling thinner, lighter blind flanges for offshore and marine applications. Nickel alloys, including Inconel, Hastelloy, and Monel, provide exceptional resistance to acids, caustics, and high-temperature oxidation, though at premium costs that restrict use to specialized applications where alternative materials cannot survive. Material selection must consider galvanic compatibility with adjacent piping components to prevent accelerated corrosion at dissimilar metal interfaces, particularly in seawater or acidic environments. High-pressure blind flanges in sour gas service require sulfide stress cracking-resistant materials meeting NACE MR0175 specifications to prevent hydrogen embrittlement and brittle failure.

Material Testing and Quality Assurance Requirements

High-pressure blind flange applications demand rigorous quality assurance programs, including enhanced material testing beyond standard commercial requirements to ensure component reliability. Non-destructive examination using ultrasonic testing detects internal discontinuities, including laminations, inclusions, and forging defects that could initiate failure under high-stress conditions. Magnetic particle inspection reveals surface and near-surface defects in ferromagnetic materials, while liquid penetrant testing serves similar purposes for non-magnetic alloys. Hardness testing verifies proper heat treatment and the absence of excessively hard zones susceptible to brittle fracture. Chemical analysis confirms material composition meets specification limits for all alloying elements. Mechanical testing, including tensile strength, yield strength, and elongation measurements, validates that materials achieve specified minimum properties. Impact testing at specified temperatures demonstrates adequate toughness for service conditions, particularly critical for low-temperature and dynamic loading applications where brittle fracture risks exist.

Installation and Maintenance Considerations for High-Pressure Services

Specialized Gasket Technologies for Extreme Pressures

High-pressure dazzle spine establishments require progressed gasket advances capable of maintaining seal integrity beneath extraordinary compressive strengths and avoiding expulsion beneath weight differentials. Spiral-wound gaskets combining stainless steel winding with graphite or PTFE filler fabric give fabulous strength and recuperation characteristics appropriate for weights up to around 100 bar with suitable control. Metal ring gaskets machined from delicate press, stainless steel, or specialized amalgams convey prevalent execution for weights surpassing 100 bar, with ring-type joint facings machined into dazzle spines giving exact grooves that contain gaskets and avoid blowout. Focal point ring and delta ring setups suit higher weights than oval cross-sections, with fabric hardness details guaranteeing gaskets stay gentler than daze rib materials to accomplish legitimate fixing without surface harm. Gasket choice must account for temperature impacts on fabric properties, with high-temperature applications requiring metal gaskets, whereas cryogenic applications may utilize gentler materials that maintain adaptability at extreme cold. Legitimate gasket establishment requests fastidious surface planning, guaranteeing fixing faces are free from scratches, erosion, and leftover gasket material that may create spill paths.

Bolt Load Optimization and Hydraulic Tensioning

Achieving uniform, adequate bolt preload represents a critical challenge in high-pressure blind flange installations, as insufficient preload permits leakage while excessive loading risks bolt failure or blind flange distortion. Hydraulic tensioning equipment applies controlled, uniform stretch to all bolts simultaneously, eliminating the sequential loading variations inherent in torque wrench methods and ensuring consistent gasket compression around the blind flange periphery. Bolt material specifications must provide adequate strength to generate required gasket loads while maintaining ductility to accommodate thermal expansion and prevent brittle failure, with ASTM A193 B7 studs serving most carbon steel blind flange applications. Stainless steel blind flanges typically utilize A193 B8 Class 2 bolting to prevent galvanic corrosion and maintain compatibility with flange materials. Lubricant selection influences achievable bolt stress for given torque values, with anti-seize compounds reducing friction though potentially causing overtightening if torque specifications developed for dry conditions are applied. Temperature effects on bolt preload require consideration, as thermal expansion during heatup can dramatically alter bolt stress, potentially necessitating hot retorquing procedures.

Inspection Programs and Preventive Maintenance Protocols

High-pressure dazzle spine establishments require comprehensive review and upkeep programs to identify developing issues, some time recently component disappointment happens. Customary visual reviews recognize outside erosion, coating corrosion, and mechanical harm requiring remedial activity. Spill discovery studies utilizing versatile gas locators or ultrasonic spill location hardware distinguish beginning seal disappointments, permitting proactive gasket substitution amid scheduled support windows or maybe than crisis shutdowns. Jolt keenness reviews, including visual examination for erosion, string harm, and necking, complement occasional torque confirmation, guaranteeing kept up preload all throughout benefit interims. Daze rib thickness estimations utilizing ultrasonic gear measure erosion rates in forceful situations, empowering prescient substitution some time recently divider misfortune compromises weight control capability. Documentation frameworks following establishment dates, gasket sorts, jolt torques, and review discoveries back data-driven support optimization and administrative compliance exhibit. Comprehensive save parts inventories, counting dazzle spines, gaskets, and catapulting in basic sizes and materials, minimize downtime length when disappointments require crisis repairs.

Conclusion

Selecting suitable dazzle ribs for high-pressure applications requires precise assessment of weight evaluations, fabric compatibility, and establishment prerequisites to guarantee secure, solid execution. Legitimate determination considering ASME weight classes, temperature impacts, and benefit environment characteristics anticipates disappointments, whereas optimizing costs. At HEBEI RAYOUNG PIPELINE Innovation CO., LTD., we fabricate premium high-pressure dazzle spines assembly worldwide benchmarks, conveying the quality and unwavering quality your basic applications require. Our comprehensive run incorporates carbon steel, stainless steel, and combination alternatives supported by ISO 9001:2015 certification and thorough quality control.

FAQ

1. What is the highest pressure rating available for blind flanges?

ASME B16.5 Class 2500 represents the highest standard pressure rating for blind flanges, providing capacity up to approximately 460 bar at ambient temperature in carbon steel construction. Higher pressures may require custom-engineered solutions or alternative closure methods. Actual allowable pressures decrease with increasing temperature according to published pressure-temperature rating tables. Material selection significantly influences maximum achievable pressures, with higher-strength alloys enabling greater capacities.

2. How do I calculate the required blind flange thickness for my pressure?

Blind flange thickness calculations follow established engineering formulas accounting for internal pressure, flange diameter, material allowable stress, and applicable safety factors. ASME standards provide prescriptive thickness requirements for each pressure class, eliminating calculation needs for standard configurations. Custom applications requiring non-standard dimensions necessitate detailed stress analysis by qualified engineers. Finite element analysis may be employed for complex geometries or severe service conditions.

3. Can I use standard bolts with high-pressure blind flanges?

High-pressure blind flanges require high-strength bolting materials capable of generating adequate gasket compression while withstanding service stresses. ASTM A193 B7 studs serve most carbon steel applications, while stainless blind flanges use A193 B8 Class 2 bolting. Bolt material selection must consider temperature effects on strength and compatibility with flange materials. Proper bolt specification represents a critical aspect of achieving leak-tight high-pressure installations.

4. What maintenance intervals are recommended for high-pressure blind flanges?

Inspection frequency depends on service severity, with corrosive or high-temperature applications requiring more frequent examination than benign services. Annual visual inspections represent the minimum best practice, with detailed inspections during major turnarounds. Leak detection surveys should occur quarterly in critical services. Bolt torque verification during planned outages confirms maintained gasket compression. Service experience and documented failure histories inform optimized inspection intervals.

High-Performance Blind Flanges from HEBEI RAYOUNG PIPELINE: Leading Manufacturers for Critical Applications

At HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD., we believe that excellent infrastructure starts with dependable materials, and our high-pressure blind flanges exemplify this commitment. As one of the leading pipes and fittings manufacturers, we supply blind flanges engineered for the most demanding applications, from Class 600 through Class 2500 ratings. Our manufacturing capabilities encompass carbon steel, stainless steel, and specialized alloys, all certified to ASME B16.5, EN 1092, and GOST standards with GOST-R and SGS export compliance validation. We understand the importance of consistent quality, backed by ISO 9001:2015 certification and comprehensive material testing programs. Whether you need blind flanges for petrochemical processing, power generation, or offshore platforms, our experienced technical team provides expert guidance from specification through delivery. Contact us today at info@hb-steel.com to discuss your high-pressure blind flange requirements and discover how RAYOUNG delivers the reliability your critical systems demand.

References

1. American Society of Mechanical Engineers. (2021). ASME B16.5: Pipe Flanges and Flanged Fittings NPS 1/2 through NPS 24. New York: ASME Press.

2. Becht, C. (2019). Process Piping Design Handbook Volume Two: Advanced Piping Design. Houston: Becht Engineering Company.

3. Singh, R. K. (2020). High-Pressure Piping Systems: Design and Installation Considerations. Oxford: Butterworth-Heinemann.

4. European Committee for Standardization. (2018). EN 1092-1: Flanges and Their Joints - Circular Flanges for Pipes, Valves, and Fittings. Brussels: CEN Publications.

5. National Association of Corrosion Engineers. (2020). NACE MR0175/ISO 15156: Petroleum and Natural Gas Industries - Materials for Use in H2S-Containing Environments. Houston: NACE International.

6. Ellenberger, J. P., & Chuse, R. (2018). Pressure Vessels: The ASME Code Simplified, Tenth Edition. New York: McGraw-Hill Education.
