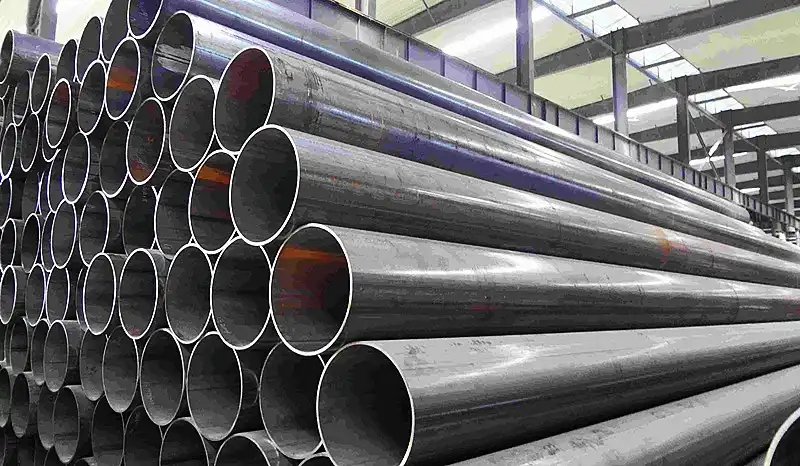

What specifications of ERW pipes are acceptable for Panama oil & gas pipelines?
When selecting ERW pipes for Panama's oil and gas pipelines, it's significant to follow industry measures and neighbourhood controls. The details of worthy ERW pipes depend on different variables, including the expected application, working conditions, and project requirements.
Material Grade and Chemical Composition
ERW pipes for oil and gas applications in Panama regularly require high-strength, low-alloy (HSLA) steel grades. Common details incorporate API 5L Grade X42, X52, X60, or X70, depending on the particular venture needs. The chemical composition ought to meet the requirements laid out in API 5L or identical benchmarks, guaranteeing appropriate weldability and mechanical properties.
Dimensional Requirements
The measurements of ERW pipes for Panama oil and gas ventures shift based on the pipeline plan. For the most part, worthy details include:
- Outside Diameter (OD): 4.5" to 24" (114.3 mm to 609.6 mm)
- Wall Thickness: 0.188" to 0.750" (4.78 mm to 19.05 mm)
- Length: 40 ft to 80 ft (12.2 m to 24.4 m), or as specified by the project
Mechanical Properties
ERW pipes must meet specific mechanical property requirements, including:
- Yield Strength: Minimum 42,000 psi (290 MPa) for X42 grade, increasing for higher grades
- Tensile Strength: Minimum 60,000 psi (415 MPa) for X42 grade, increasing for higher grades
- Elongation: Minimum 22% for X42 grade, varying for other grades
Coating and Corrosion Protection
ERW pipes for Panama's oil and gas projects often require protective coatings to prevent corrosion and extend service life. Common coating specifications include:
- 3-Layer Polyethene (3LPE) coating
- Fusion Bonded Epoxy (FBE) coating
- Internal lining for corrosion resistance (if required)
Supplier evaluation: testing standards, traceability and quality control for Chinese ERW pipe makers
When sourcing ERW pipes from China for Panama oil and gas ventures, it's fundamental to thoroughly assess potential providers to guarantee they meet the fundamental quality benchmarks and can provide dependable products.
Testing Standards
Reputable Chinese ERW pipe manufacturers should adhere to internationally recognised testing standards, including:
- API 5L: Specification for Line Pipe
- ASTM A53: Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
- ISO 3183: Petroleum and natural gas businesses
- Steel pipe for pipeline transportation systems
These standards outline specific testing requirements, such as:
- Chemical analysis
- Tensile testing
- Flattening test
- Hydrostatic testing
- Non-destructive examination (NDE) methods like ultrasonic testing
Traceability
Ensuring appropriate traceability is pivotal for keeping up quality control and assembly venture requirements. When assessing Chinese ERW pipe providers, consider the following viewpoints of traceability:
- Heat number tracking
- Material Test Reports (MTRs) for each bunch of pipes
- Unique, recognisable proof stamping on each pipe
- Documentation of fabricating forms and quality control checks
Quality Control Measures
Assess the quality control procedures implemented by potential suppliers, including:
- ISO 9001:2015 certification for quality administration systems
- In-house testing offices and equipment
- Qualified faculty for quality reviews and testing
- Process controls for welding, warm treatment, and coating application
- Third-party review capabilities and certifications
Supplier Certifications and Qualifications
Look for Chinese ERW pipes manufacturers with relevant industry certifications and qualifications, such as:
- API Q1 certification for quality management systems in the oil and gas industry
- API 5L monogram license for manufacturing line pipe
- ISO 14001 for environmental management systems
- OHSAS 18001 or ISO 45001 for occupational health and safety management systems
Cost & durability analysis: ERW pipe vs seamless pipe for oil & gas applications
When considering ERW pipes for Panama oil and gas ventures, it's critical to compare their cost-effectiveness and toughness against consistent channels, which are frequently considered the gold standard in the industry.
Cost Comparison
ERW pipes generally offer a more cost-effective solution compared to seamless pipes:
- Manufacturing Preparation: ERW pipes are delivered utilising a more proficient and less energy-intensive handling, resulting in lower generation costs.
- Material Utilisation: ERW pipes regularly require less crude material due to their fabrication process, contributing to taken a toll savings.
- Transportation: The lighter weight of ERW pipes can lead to decreased transportation costs.
On average, ERW pipes can be 15-30% less expensive than seamless pipes of comparable size and grade.
Durability and Performance
While consistent channels have customarily been favoured for their uniform structure and need for a weld crease, advanced ERW pipes have made noteworthy progressions in toughness and performance:
- Weld Quality: High-frequency welding methods utilised in ERW pipe generation make a weld zone that is regularly stronger than the base metal.
- Pressure Evaluations: ERW pipes can meet the same weight appraisals as consistent channels in most oil and gas applications.
- Fatigue Resistance: Appropriately fabricated ERW pipes illustrate comparable fatigue resistance to consistent channels in cyclic stacking conditions.
- Corrosion Resistance: With suitable warm treatment and coating applications, ERW pipes can offer comparative erosion resistance to consistent pipes.
Suitability for Oil and Gas Applications
ERW pipes have proven to be suitable for many oil and gas applications, including:
- Gathering lines and streamlines
- Transmission pipelines
- Distribution networks
- Process channelling in refineries and petrochemical plants
However, for certain high-pressure or critical applications, seamless pipes may still be preferred due to their uniform structure and absence of a weld seam.
Lifecycle Cost Considerations
When analysing the cost-effectiveness of ERW pipes versus seamless pipes, consider the following lifecycle factors:
- Initial Buy Taken a toll: ERW pipes regularly have a lower upfront cost.
- Installation Costs: The lighter weight of ERW pipes may result in less demanding taking care of and decreased installation costs.
- Maintenance Prerequisites: Both ERW and consistent channels require comparative upkeep when appropriately fabricated and installed.
- Service Life: With appropriate fabrication, establishment, and support, ERW pipes can offer a comparable benefit life to consistent channels in numerous applications.
Conclusion
Sourcing high-quality ERW pipes from China for Panama oil and gas ventures requires cautious thought of details, provider assessment, and cost-effectiveness investigation. By following the rules sketched out in this article, venture supervisors and procurement masters can make educated choices to guarantee the success and life span of their pipeline infrastructure.
When selecting ERW pipes for your Panama oil and gas ventures, it's significant to accomplice with a solid and experienced provider. HEBEI RAYOUNG PIPELINE Technology CO., LTD offers a comprehensive extend of high-quality ERW pipes that meet universal measures and project-specific necessities. Our commitment to quality control, traceability, and client fulfilment makes us a perfect accomplice for your pipeline needs.
FAQ
Q1: What are the main advantages of using ERW pipes in Panama oil and gas projects?
A: ERW pipes offer a few focal points for Panama oil and gas ventures, including cost-effectiveness, reliable quality due to computerised manufacturing forms, amazing weld quality, and affordability for a wide range of weight applications. They also give great dimensional exactness and surface wrap-up, making them perfect for different pipeline applications.
Q2: How do Chinese ERW pipe manufacturers ensure compliance with international standards?
A: Legitimate Chinese ERW pipe producers guarantee compliance with universal measures through thorough quality control forms, adherence to API and ISO measures, normal third-party assessments, and maintaining significant certifications such as API Q1 and ISO 9001:2015. They moreover contribute state-of-the-art testing gear and utilise qualified faculty to conduct careful quality checks all through the manufacturing process.
Q3: What factors should be considered when evaluating the total cost of ownership for ERW pipes in oil and gas projects?
A: When assessing the add up to fetched on investment for ERW pipes in oil and gas ventures, consider variables such as starting buy cost, transportation costs, establishment costs, anticipated benefit life, upkeep necessities, and potential replacement costs. Moreover, consider the pipe's execution characteristics, such as erosion resistance and weight appraisals, which can affect long-term operational costs and framework reliability.
Expert ERW Pipe Solutions for Panama Oil & Gas Projects | RAYOUNG
Ready to source high-quality ERW pipes for your Panama oil and gas projects? HEBEI RAYOUNG PIPELINE TECHNOLOGY CO., LTD is your trusted partner for superior ERW pipe solutions. Our extensive range of products, commitment to quality, and industry expertise ensure that your pipeline infrastructure meets the highest standards of performance and reliability.
Don't leave the success of your project to chance. Contact our team of experts today at info@hb-steel.com to discuss your specific requirements and discover how RAYOUNG can provide the perfect ERW pipe solution for your Panama oil and gas projects. Let us help you build a robust, efficient, and long-lasting pipeline network that drives your business forward.
References
1. American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe. Washington, DC: API Publishing Services.
2. International Organization for Standardization. (2019). ISO 3183:2019 - Petroleum and natural gas industries — Steel pipe for pipeline transportation systems. Geneva: ISO.
3. Mohitpour, M., Golshan, H., & Murray, A. (2007). Pipeline Design & Construction: A Practical Approach. New York: ASME Press.
4. Norsok Standard. (2012). M-001: Material selection. Oslo: Standards Norway.
5. Palmer, A. C., & King, R. A. (2008). Subsea Pipeline Engineering. Tulsa, OK: PennWell Corporation.
World Steel Association. (2021). Steel Statistical Yearbook 2021. Brussels: World Steel Association.
